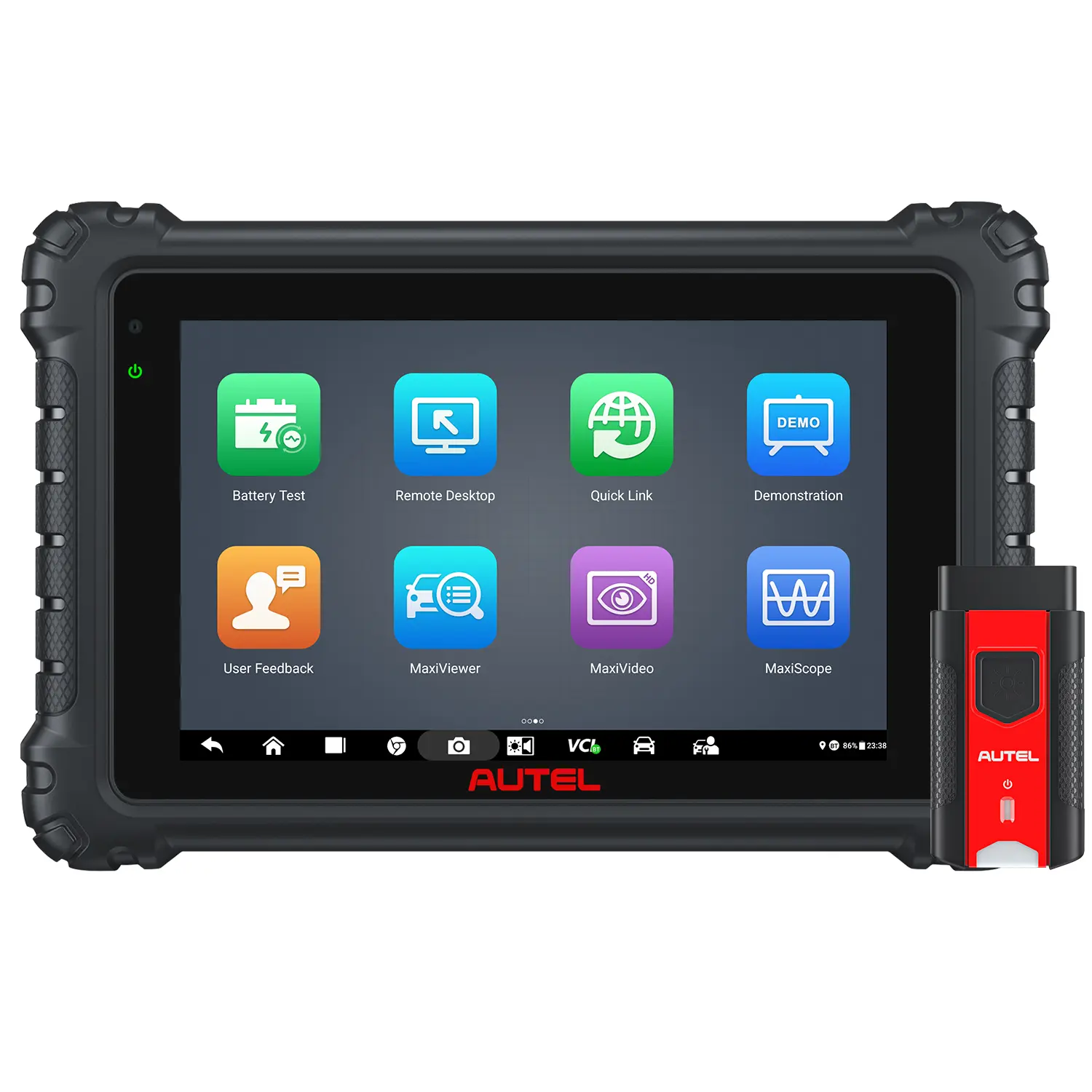

Autel MaxiSys MS906 PRO
Autel MaxiSYS MS906 Pro with OBDII Bi-Directional Diagnostic Function

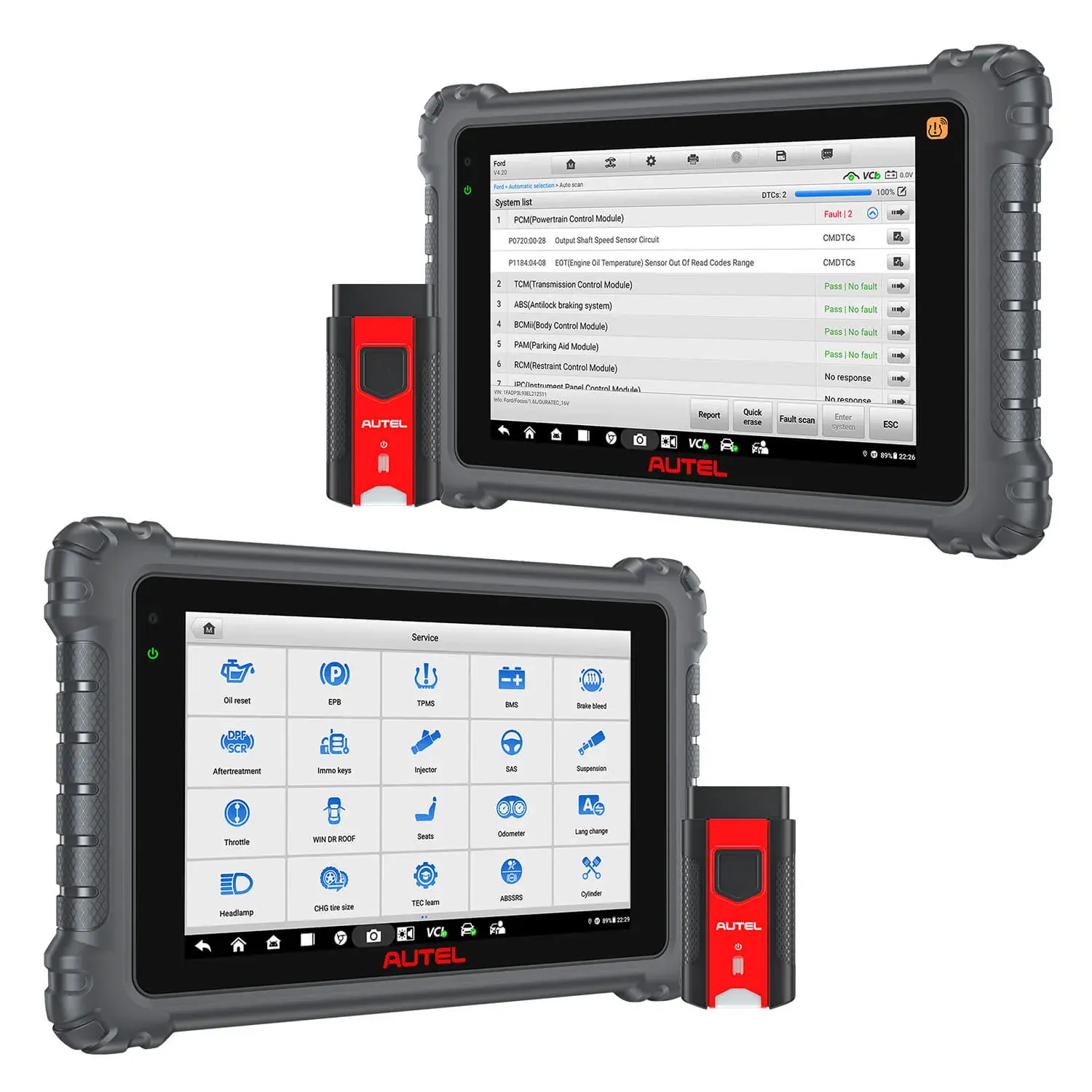

MaxiSYS MS906Pro is an advanced diagnostic tablet compatible with U.S., Asian and European vehicles, 1996 and newer. This 8-inch wireless Android-based touchscreen tablet performs extensive vehicle diagnostics including an all systems scan, the ability to read/erase codes, view freeze frame and live data, bi-directional control including active testing, coding and adaptations. Includes customizable Pre/Post scans, extensive service menu with 25 of the most common maintenance tasks. FCA Access via AutoAuth account, starting and charging system analysis with MaxiBAS BT506 Bluetooth tester and terminal cables purchase.
Autel MaxiSYS MS906 Pro Features
Hardware
- 8-inch, 1920 x 1200 high-resolution touchscreen tablet, Qualcomm 660 Octa-core processor with 128 GB storage and running Android 10.0 operating system.
- Long-lasting 11,600 mAh rechargeable battery, 5 MP front camera and 16 MP rear camera.
- MaxiVCI V200 wireless Bluetooth vehicle communication interface supporting the latest communication protocols
Software
- Includes One Year Free Update and One Year Free Warranty
- Advanced ECU Coding and Refresh hidden functions for specific vehicles
- Comprehensive diagnostics on 1996 and newer U.S., Asian and European vehicles
- AutoScan: Scan all available systems
- Read/Erase Codes, View Freeze Frame and Live Data
- Perform Active Tests (bi-directional controls), Coding and Adaptations
- AutoVIN/Scan VIN for rapid vehicle identification
New Software Features
- Battery analysis capability
- Cloud-based Reports and Data Management
- Remote Expert
- With the additional purchase of the MaxiBAS BT506 battery and electrical system tester.
Ā
Specifications
| Operating System: | Android 10.0 |
| Processor: | Qualcomm 660 Octa-core Processor (2.2GHz Quad-core A73 + 1.8GHz Quad-core A53) |
| Memory: | 4GB&128GB |
| Display: | 8.0" LED capacitive touch screen with 1920x1200 resolution |
| Connectivity: | ā¢ Wi-Fi (802.11 b/g/n)USB: 2.0, Mini USB 2.0 Wireless BT V2.1+EDR Class1, HDMI 1.4a SD Card (support up to 32 GB) |
| Camera (rear): |
Front: 5 Megapixel Rear: 16 Megapixel |
| Sensors; | Gravity Accelerometer, Ambient Light Sensor (ALS) |
| Audio Input/Output: | ā¢ Microphone ā¢ Single Speaker ā¢ 3-Band 3.5 mm stereo/standard headset jack |
| Power and Battery: | 11 600 mAh 3.7 V lithium-polymer battery Charging via 12 V AC/DC power supply |
| Input Voltage: | 12 V (9-35 V) |
| Power Consumption: | 5 W |
| Operating Temp.: | -10 to 55Ā°C (14 to 131Ā°F) |
| Storage Temp.: | -20 to 70Ā°C (-4 to 158Ā°F) |
| Dimensions (W x H x D): | 270.8 mm (10.0ā) x 176.0 mm (6.9ā) x 36.0 mm (1.4ā) |
| Weight | NW: 1.05 kg (2.3lb.) |
Ā

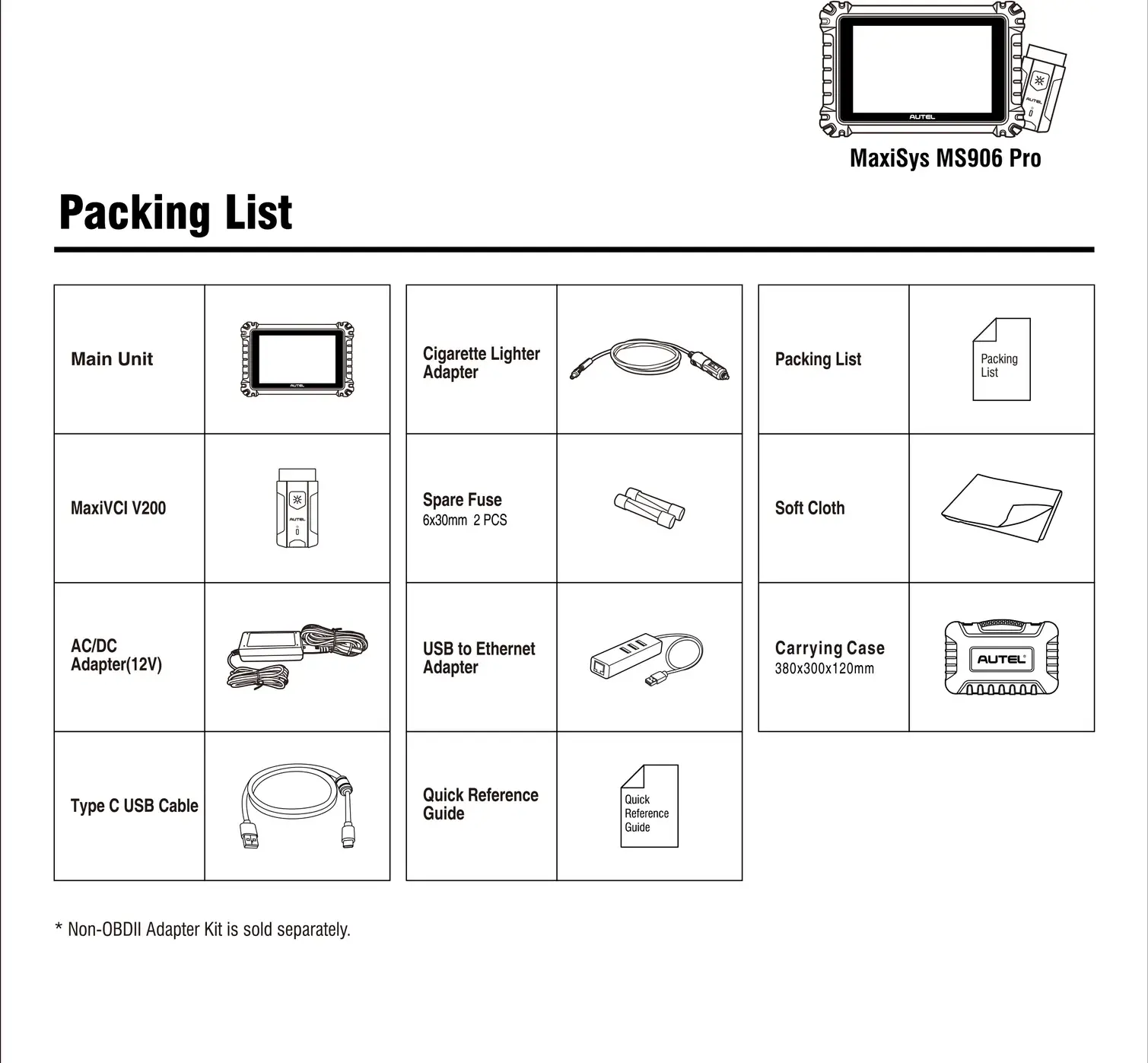

Packing List
- 1x MS906 Pro tablet main unit
- 1x MaxiVCI V200
- 1x AC/DC External Power Adapter (12V)
- 1x Type C USB cable
- 1x Cigarette Lighter cable
- 2x Light Fuse (60x30mm)
- 1x USB to Ethernet Adapter
- 1x Quick reference guide
- 1x Soft Cloth
- 1x Carrying Case (380x300x120mm)
- 1x Packing List
Ā
MS906 Pro User Manual (PDF)MS906 PRO One Year Software Update
