Autel MaxiSys MS906 MAX / MS906MAX (US Shipping Only)

Autel MaxiSys MS906MAX Diagnostic Scanner 2026

The MaxiSYS MS906MAX is a 10.1-inch Android-based wireless diagnostics and service tablet with professional capabilities. Autel MS906 MAX features industry-leading coverage of U.S., Asian, and European vehicles, 1996 and newer. Perform Pre- and Post-Scans, all-systems diagnostics including reading and erasing codes, viewing and graphing Live Data, and performing bi-directional tests and services including Active Tests and Special Functions. Advanced functionality includes coding and adaptations. MaxiSYS MS906MAX features extensive, vehicle-specific, direct-to-system service and maintenance tasks. Quickly execute 40 service tasks including oil light reset, DPF regen, steering angle sensor reset, airbag reset, occupancy seat reset and brake bleed. It includes Bluetooth-enabled MaxiVCI V200 supporting standard and advanced vehicle communication protocols. Easily share customizable reports via email and text. It supports direct battery, starter and charging system testing, and videoscope capability with additional purchases.

Autel MaxiSys 906MAX Features

• One Year Free Update & Warranty
• Advanced diagnostic tablet compatible with U.S., Asian and European vehicles, 1996 and newer
• Advanced ECU Coding and Refresh hidden functions for specific vehicles

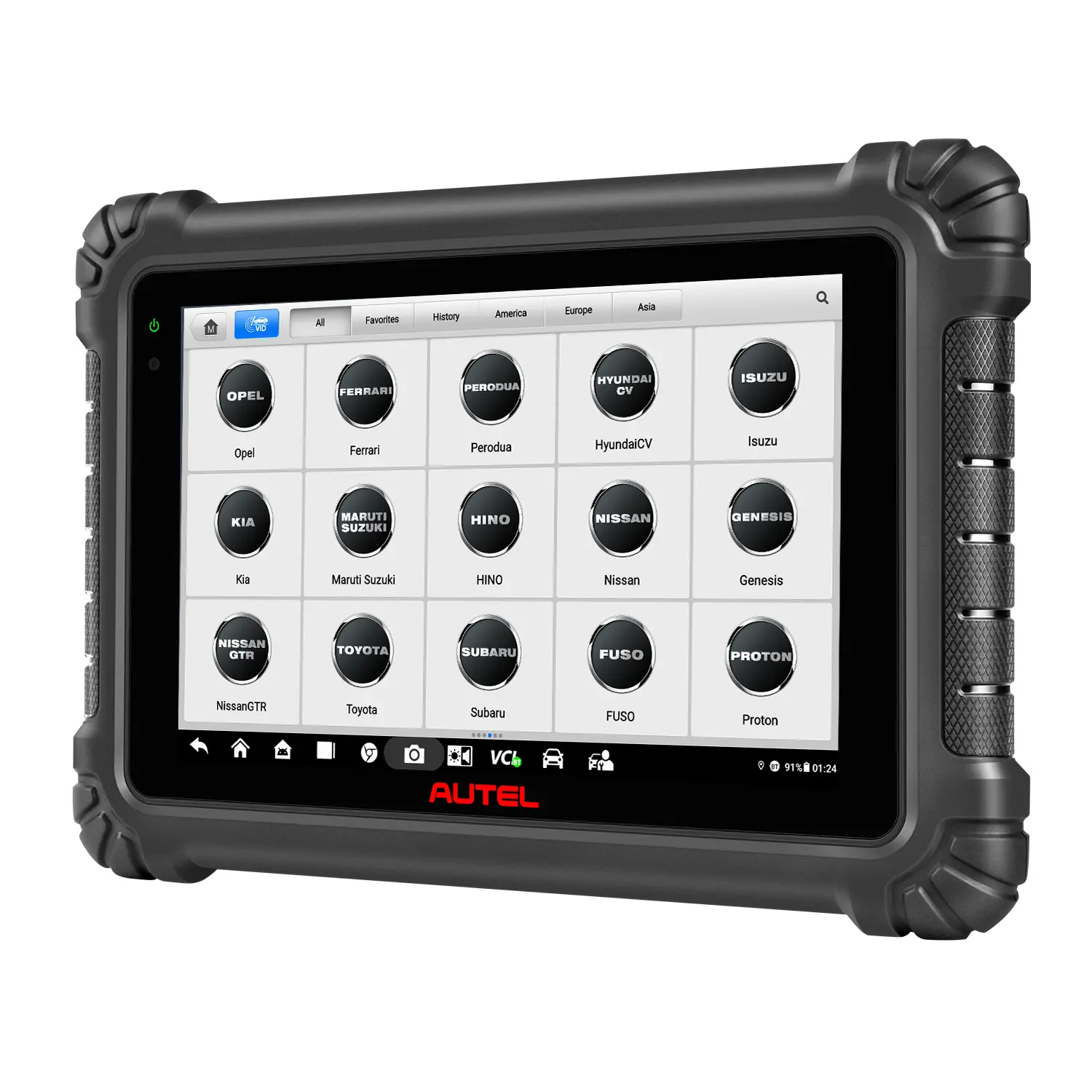

• 10.1-inch Wireless Touchscreen tablet with Bluetooth-enabled MaxiVCI V200
• Octa-Core Processor/128 GB memory / 4 GB RAM
• Performs all system scan with ADAS identification/ Customizable Pre & Post scans, Read/Erase Codes, View Freeze Frame and Live Data
• Bi-directional control capability including Active test/Performs coding and adaptations
• AUTO SCAN 2.0 maximizes diagnostics capabilities with faster all system scan
• Extensive Service Menu: Quick access to 40+ of the most common maintenance tasks
• Features Wi-Fi print functionality, and supports Videoscope, and Battery testing
• Supports the latest communication protocols, including DoIP and CAN FD
• One-touch report sharing via QR codes, text messages, or emails
• Work with MV108S and BT506(sold separately) get full charging test and cranking test



Specifications

Model	MS906 MAX
Operating System	Android 10
Processor	Octa-core Processor
Memory	4 GB RAM & 128 GB On-board Memory
Battery	11600 mAh 3.85 V Lithium-polymer Battery
Display	10.1-inch LCD Capacitive Touchscreen with 1920 x 1200 Resolution
Camera (Rear)	13 MP
Connectivity	Wi-Fi (802.11 a/b/g/n/ac) BT 5.0 (BR/EDR + BLE) GPS USB 2.0 (Two USB Host Type A, one Mini USB) SD Card (Support up to 256 GB)
Audio Input / Output	Microphone Dual Speakers 3-band or 4-band 3.5 mm Headset Jack
Operating Temp.	0 °C to 50 °C (32 °F to 122 °F)
Storage Temp.	-10 °C to 60 °C (14 °F to 140 °F)
Protocols	ISO13400, CAN FD, PLC J2497, ISO-15765, SAE-J1939, ISO- 14229 UDS, SAE-J2411 Single Wire Can (GMLAN), ISO- 11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAEJ2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)

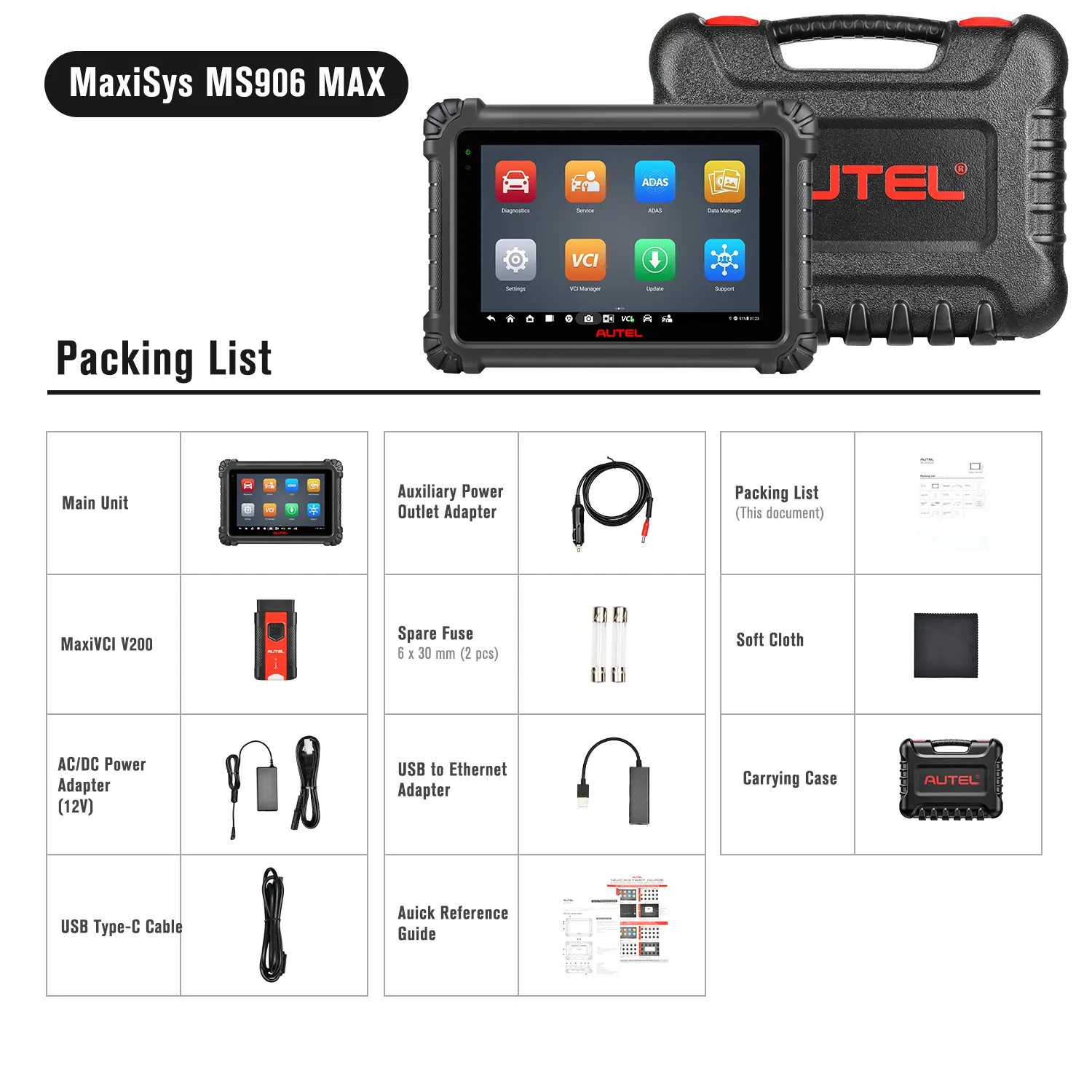

Packing List

• 1x MS906MAX Main Unit
• 1x MaxiVCI V200
• 1x AC/DC Power Adapter(12V)
• 1x USB Type-C Cable
• 1x Auxiliary Power Outlet Adapter
• 1x Spare Fuse 6x30mm(2pcs)
• 1x USB to Ethernet Adapter
• 1x Quick Reference Guide
• 1x Packing List(This document)
• 1x Soft Cloth
• 1x Carrying Case

Product Guides & Downloads

• Autel MS906MAX User Manual (PDF)
• Autel MS906MAX Quick Guide (PDF)
• MS906MAX One Year Software Update
