Autel MaxiCOM MK906S PRO

Autel MaxiCOM MK906S PRO with BT Diagnosis

The MaxiCOM MK906S PRO is an advanced smart wireless diagnostics device providing specialized automotive diagnostic service for customers. Featuring the powerful octa-core processor, an 8.0-inch TFT-LED capacitive touchscreen, and long-distance wireless communication, based on the multitasking mobile operating system, and combined with the best possible coverage of OE-level diagnostics, the MK906 Pro performs comprehensive and efficient vehicle diagnostics and analysis.

Autel MaxiCOM MK906S PRO Features

Hardware

• 8-inch, 1920 x 1200 high-resolution touchscreen tablet, Qualcomm 660 Octa-core processor with 128 GB storage and running Android 10.0 operating system.
• Long-lasting 11,600 mAh rechargeable battery, 16 MP front camera and 16 MP rear camera.
• MaxiVCI V200 wireless Bluetooth vehicle communication interface supporting the latest communication protocols

Software

• 1-Year Free Software Updates & Warranty
• Comprehensive diagnostics on 1996 and newer U.S., Asian and European vehicles
• AutoScan: Scan all available systems
• Read/Erase Codes, View Freeze Frame and Live Data
• Perform Active Tests (bi-directional controls), Coding and Adaptations
• AutoVIN/Scan VIN for rapid vehicle identification

New Software Features

• Battery analysis capability (With additional purchase of the MaxiBAS BT506 battery and electrical system tester)
• Cloud-based Reports and Data Management



Specifications

Operating System:	Android 10.0
Processor:	Octa-core processor (2.2 GHz Qual high, performance Kryo cores + 1.8 GHz Qual low, power Kryo cores)
Memory:	4G RAM/ 128GB ROM
Display:	8.0" LED capacitive touch screen with 1920x1200 resolution
Connectivity:	• Wi-Fi (802.11 b/g/n)USB: 2.0, Mini USB 2.0 Wireless BT V2.1+EDR Class1, HDMI 1.4a SD Card (support up to 32 GB)
Camera (rear):	Front: 16 Megapixel Rear: 16 Megapixel
Sensors;	Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output:	• Microphone • Single Speaker • 3-Band 3.5 mm stereo/standard headset jack
Power and Battery:	11 600 mAh 3.7 V lithium-polymer battery Charging via 12 V AC/DC power supply
Input Voltage:	12 V (9-35 V)
Power Consumption:	5 W
Operating Temp.:	-10 to 55°C (14 to 131°F)
Storage Temp.:	-20 to 70°C (-4 to 158°F)
Dimensions (W x H x D):	270.8 mm (10.0”) x 176.0 mm (6.9”) x 36.0 mm (1.4”)
Weight	NW: 1.05 kg (2.3lb.)

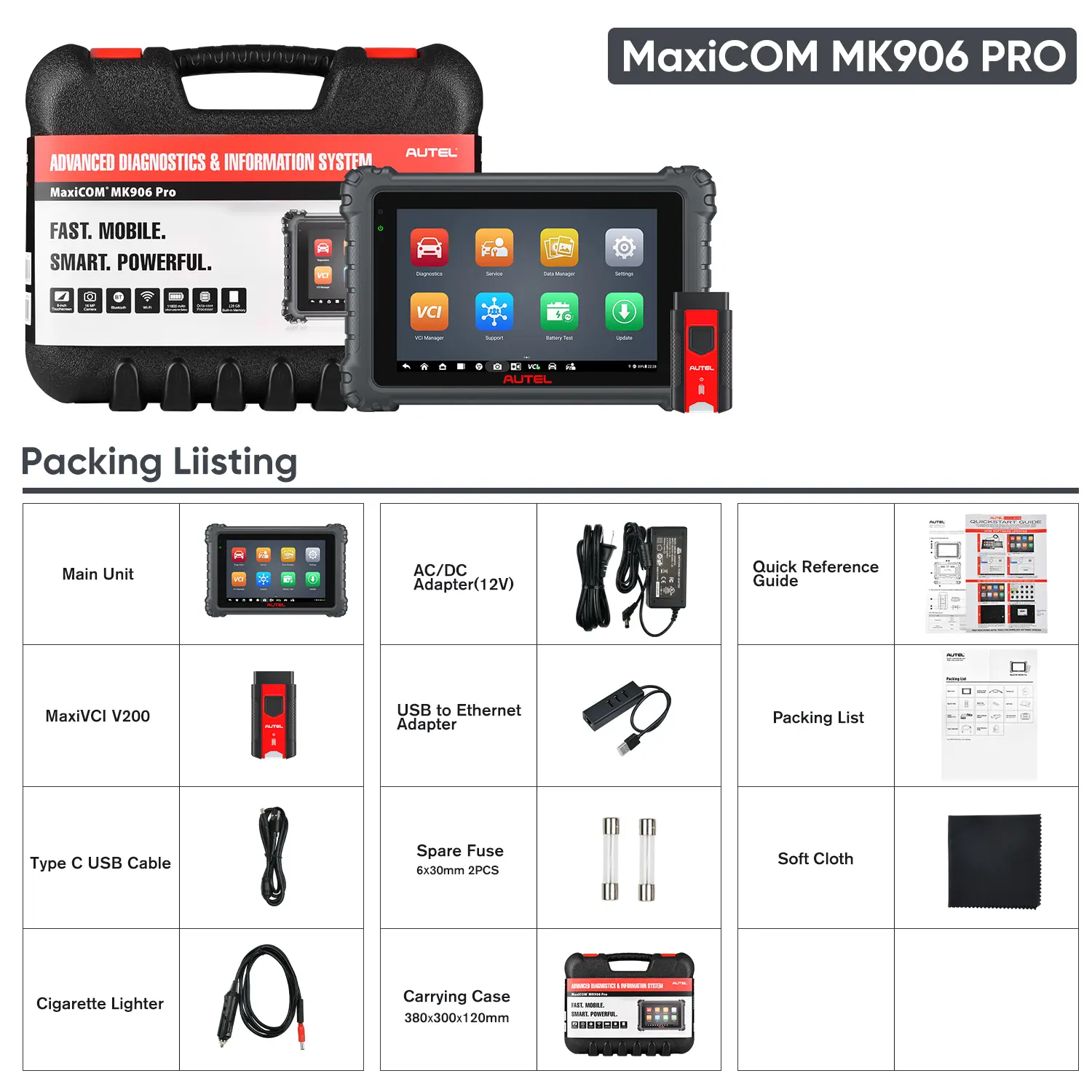

Packing List

• 1x MaxiCOM MK906S Pro/MK906 Pro Tablet
• 1x MaxiVCI V200
• 1x Type-C USB Cable
• 1x Cigarette Lighter
• 1x AC/DC External Power Adapter (12V)
• 1x USB to Ethernet Adapter
• 2x Spare Fuse
• 1x Quick Reference Guide
• 1x Packing List
• 1x Soft Cloth
• 1x Carrying Case(380*300*120mm)
