Autel MaxiIM KM100 / KM100X

Autel MaxiIM KM100 / KM100X Key Fob Programming Tool

MaxiIM KM100/KM100X is an advanced key and immobilizer touchscreen tablet capable of smart key creation and IMMO learning via OBD. This 5.5-inch, Android touchscreen tablet with Bluetooth VCI can program the Autel IKEY as a smart key replacement for more than 700 vehicles and offers IMMO programming capability for multiple vehicle brands including BMW, Volkswagen, Toyota, Honda, and General Motors. Additional innovative features include key renewal and Transponder Editing of 20 supported protocols.

Autel MaxiIM KM100 / KM100X Features

• Programs Autel’s IKEY universal key as smart key replacement for more than 700 vehicles
• Extensive IMMO Key programming coverage including BMW, Volkswagen, Toyota, Honda, and General Motors
• One-Minute Key Generation
• Chip Read & Write, Cloning and Frequency Detection
• AutoVIN vehicle identification to ensure accuracy
• Simple User Interface with Concise Instructions
• Powerful Android-based tablet with 64 GB memory and long-lasting rechargeable battery
• Lifetime Free Software Updates & One Year Warranty

Optional Compatible Accessory

Autel MaxiIM AT100 is a universal, programmable transponder super chip designed to replace multiple automotive key chips.

The AT100 can be programmed using Autel MaxiIM IM508 and IM608 immobilizer and key programming tablets, as well as the KM100 device, offering wide compatibility and flexibility for professional key services.

The AT100 Super Chip supports cloning for the following transponder types: ID11, ID12, ID13, ID46, ID47, ID48, ID49, ID4A, ID4C, ID5C, ID4D, ID64, ID8A, ID8C, and MQB.



Specification

Dimensions (WxHxD)	200mm(7.9”) x 89 mm (3.5”) x 22 mm (0.87”)
Weight	352.7g (0.8 lb)
Screen	5.5-inch screen with 1280 x 720 resolution
Processor	Rockchip PX30 (4x ARM Cortex-A35 1.5GHz)
Operating System	Android™ 9.0
Memory	2GB RAM/64GB on-board memory
Camera	8 megapixels
Connection	Wi-Fi Bluetooth 5.0 USB 2.0 type C
Battery	4950mAh lithium-polymer battery
VCI	V200
Input	5V/2A
Sensor	Ambient light sensor
Audio Input/Output	MIC: supported Speaker: supported
Operating Temp	-10 to 45°C (14 to 113°F)
Storage Temp	-20 to 60°C (-4 to 140°F)

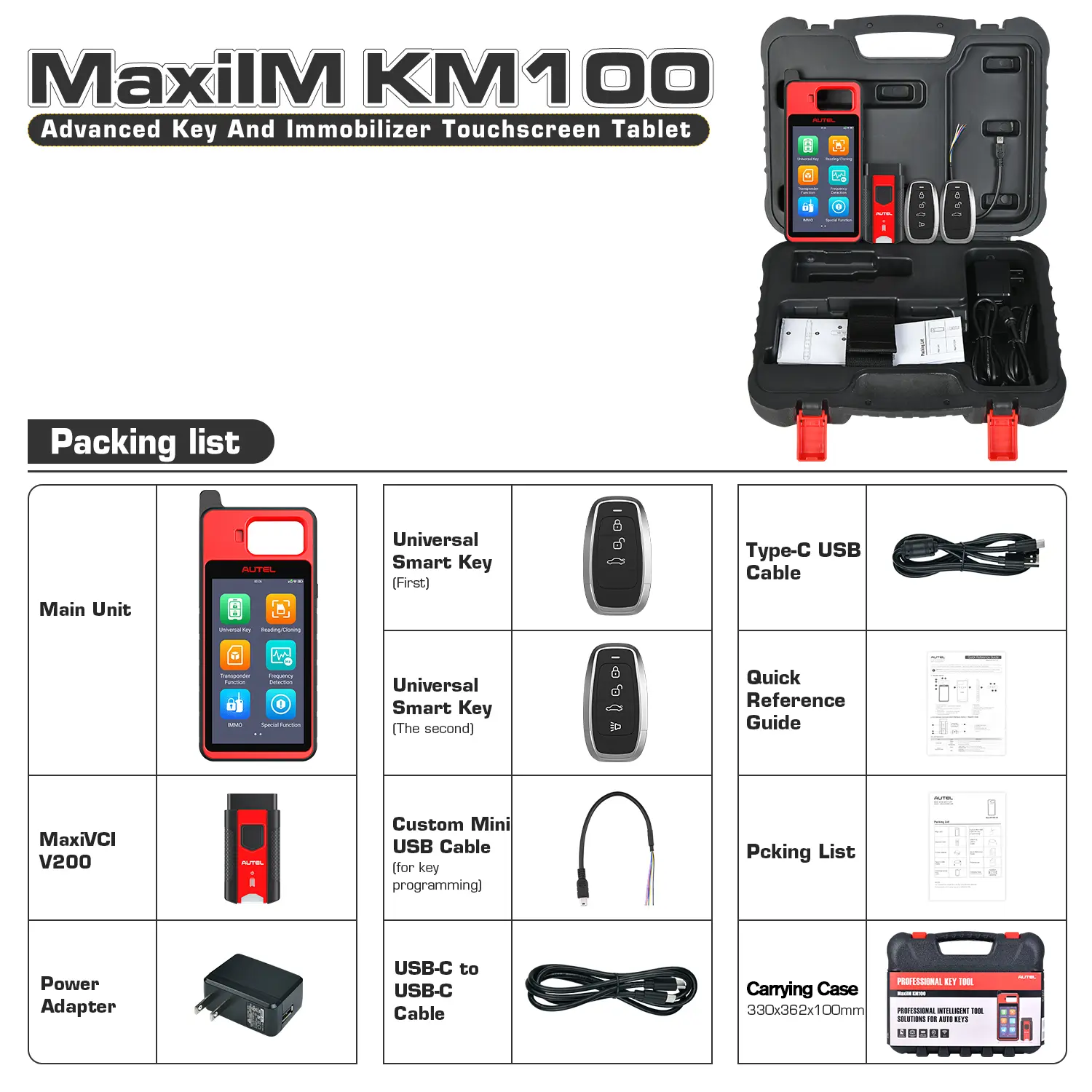

Packing List

• 1 x KM100X Main Unit
• 1 x MaxiVCI V200
• 1 x Power Adapter
• 1 x Type-C USB Cable
• 2 x Universal Smart Key
• 1 x Custom Mini USB Cable(for key programming)
• 1 x USB-C to USB-C Cable
• 1 x Quick Reference Guide
• 1 x Packing List
• 1 x Carrying Case(330*262*100mm)
