Autel MaxiCOM MK906S PRO2-TS
Autel MaxiCOM MK906S Pro2-TS with ADVANCED DIAGNOSTICS SYSTEM & TPMS INTEGRATION
Utilizing the powerful Octa-core processor and the Android 10 operating system, the MaxiCOM MK906 Pro2-TS / MK906S Pro2-TS is an efficient and powerful diagnostics tool featured with the best possible coverage of OE-level diagnostics and TPMS integration. This wireless diagnostic scanner tool provides comprehensive vehicle diagnostics and analysis along with universal TPMS solutions.
Autel MaxiCOM MK906S Pro2-TS Features
- 1-Year Free Software Updates & Warranty
- Extraordinarily powerful Octa-core processor
- 8-inch 1920x1200 LED-backlit glossy multi-touch capacitive display
- Built-in 16-megapixel cameras with autofocus
- Built-in 11600 mAh rechargeable lithium-polymer battery
- Android 10 OS for fast boot-up and multitasking
- Featuring embedded TPMS antenna module (315/433 MHz; 2.4 GHz BLE) and full TPMS functionality
- Exceptional OE-level all systems diagnostics & services for extensive vehicle coverage
- Enhanced features including battery test (tool purchased separately), and more
- Autel cloud services for instant remote tech support and convenient data management
Specifications
| Operating System: | Android 10.0 |
| Processor: | Qualcomm 660 Octa-core Processor (2.2GHz Quad-core A73 + 1.8GHz Quad-core A53) |
| Memory: | 4/128GB |
| Display: | 8.0" LED capacitive touch screen with 1920x1200 resolution |
| Connectivity: | • Wi-Fi (802.11 b/g/n)USB: 2.0, Mini USB 2.0 Wireless BT V2.1+EDR Class1, HDMI 1.4a SD Card (support up to 32 GB) |
| Camera (rear): |
Front: 16 Megapixel Rear: 16 Megapixel |
| Sensors; | Gravity Accelerometer, Ambient Light Sensor (ALS) |
| Audio Input/Output: | • Microphone • Single Speaker • 3-Band 3.5 mm stereo/standard headset jack |
| Power and Battery: | 11 600 mAh 3.7 V lithium-polymer battery Charging via 12 V AC/DC power supply |
| Input Voltage: | 12 V (9-35 V) |
| Power Consumption: | 5 W |
| Operating Temp.: | -10 to 55°C (14 to 131°F) |
| Storage Temp.: | -20 to 70°C (-4 to 158°F) |
| Dimensions (W x H x D): | 270.8 mm (10.0”) x 176.0 mm (6.9”) x 36.0 mm (1.4”) |
| Weight | NW: 1.05 kg (2.3lb.) |

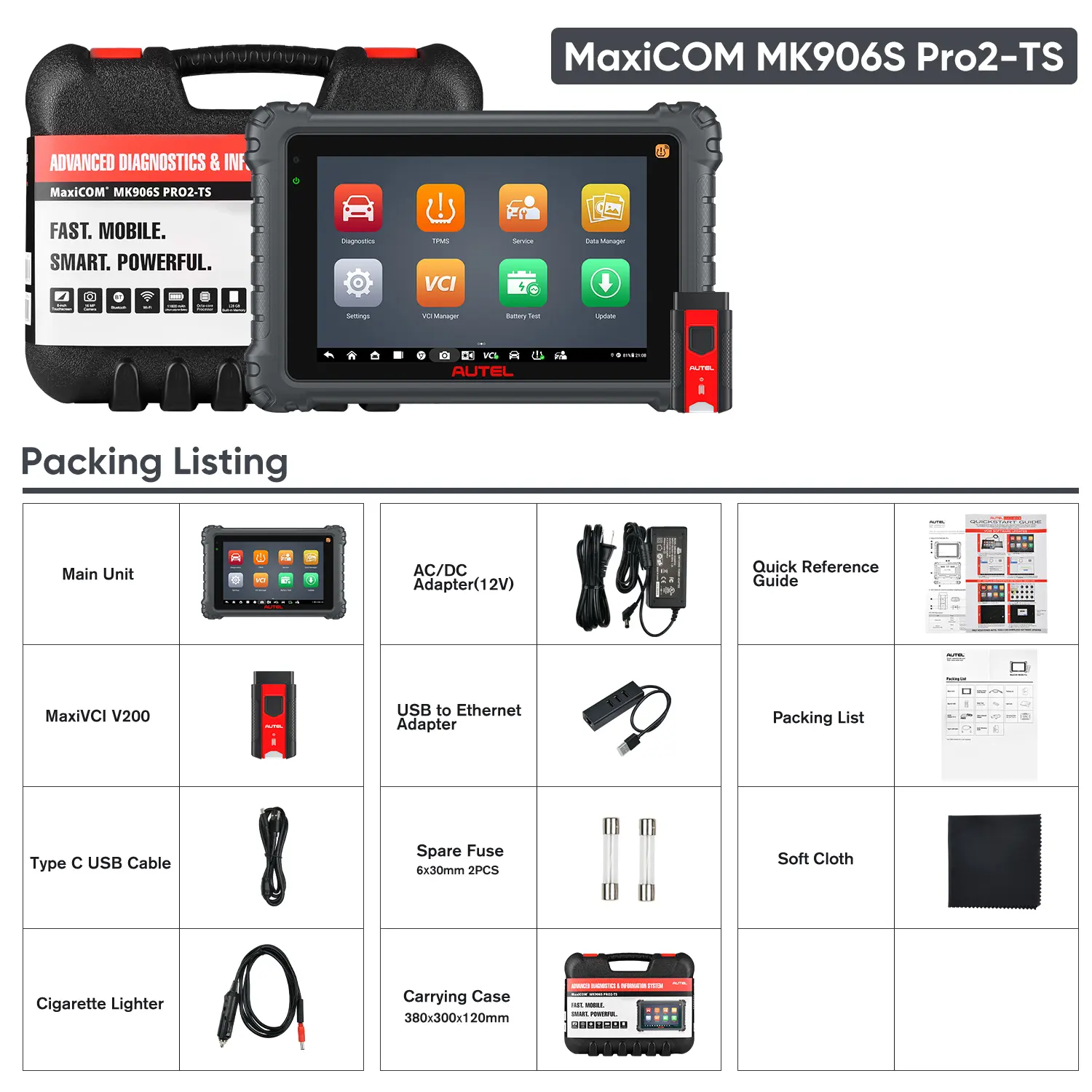

Packing List
- 1x MaxiCOM MK906S Pro2-TS main unit
- 1x MaxiVCI V200
- 1x AC/DC Adapter (12V)
- 1x Type C USB Cable
- 1x Cigarette Lighter Adapter
- 2x Spare Fuse(6*30mm)
- 1x USB to Ethernet Adapter
- 1x Soft Cloth
- 1x Packing List
- 1x Carrying Case
- 1x Quick Reference Guide
Product Guides & Downloads
- Autel MK906S PRO2-TS User Manual (PDF)
- Autel MK906S PRO2-TS Quick Guide
