Autel MaxiPro MP808S KIT

Autel MaxiPro MP808S KIT

When it comes to ultra-portability, the MaxiPRO MP808S KIT is your perfect companion. Equipped with a fast quad-core processor, the MP808S KIT offers maximum convenience and swift diagnosis. Its intuitive user interface makes operation effortless via a 7-inch LCD touchscreen with 1024×600 resolution. Along with the ability to quickly read and clear DTCs for all available modules of most makes and models on the market, it provides superior special functions, including Oil Reset, EPB (Electronic Parking Brake), SAS (Steering Angle Sensor), BMS (Battery Management System), DPF (Diesel Particulate Filter), IMMO, and TPMS (Tire Pressure Monitoring System).

Autel MaxiPro MP808S KIT Features

• 2-Year Free Software Updates & One Year Warranty
• Includes an OE-compliant non-OBD-II adapter kit for specific vehicles
• Extensive vehicle coverage for over 80 U.S., Asian, and European vehicle makes
• Exceptional OE-level system coverage for all electronic systems
• Reads and erases codes, views and graphs Live Data, performs bi-directional Active Tests, and executes adaptations
• AutoVIN technology automatically identifies a vehicle’s make, model, and year
• Wi-Fi-enabled automatic software and system updates
• Powerful 1.8 GHz Cortex-A55 processor
• 7-inch LCD capacitive touchscreen with 1024×600 resolution
• 64GB on-board memory for enhanced performance
• Runs on Android 11 operating system for fast boot-up and multitasking
• Cloud-based Report Management allows viewing, saving, printing, and sharing reports on mobile phones, tablets, and computer browsers
• One-stop multitasking designed for ideal workshop operation management, keeping all data files, customer info, and vehicle records well organized
• Convenient data management system for managing internal program applications and reviewing data
• Compatible with videoscopes (additional purchase required)
• Instant remote tech support anytime, anywhere
• Interactive Data Logging sessions enable direct contact with Autel Technical Support for first-hand troubleshooting of diagnostic bugs and errors

Specification

Operating System	Android 11
Processor	Cortex-A55 quad-core processor(1.8GHz)
Memory	4GB RAM &64GB On-board Memory
Display	7-inch LCD capacitive touchscreen with 1024x600 resolution
Connectivity	Wi-Fi(802.11a/b/g/n/ac)
	USB 2.0, Mini USB 2.0
	SD Card (Support up to 64GB)
Sensors	Light sensor for brightness auto adjust
Audio Input/Output	Input: N/A
	Output: Beep
Power and Battery	3.7V/5000mAh lithium-polymer battery
	Charges via 5 VDC power supply
Input Voltage	5V/1.5 A
Operating Temp	0 to 50°C (32 to 122°F)
Storage Temp	-20 to 60°C (-4 to 140°F)
Dimensions(W x H x D)	270.8 mm (10.0”) x 176.0 mm(6.9”) x 36.0 mm (1.4”)
Protocols	ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISo11898(Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN) SAE J2610, GM UART UART Echo Byte Protocol, Honda Diag-H Protocol,TP2.0,TP1.6

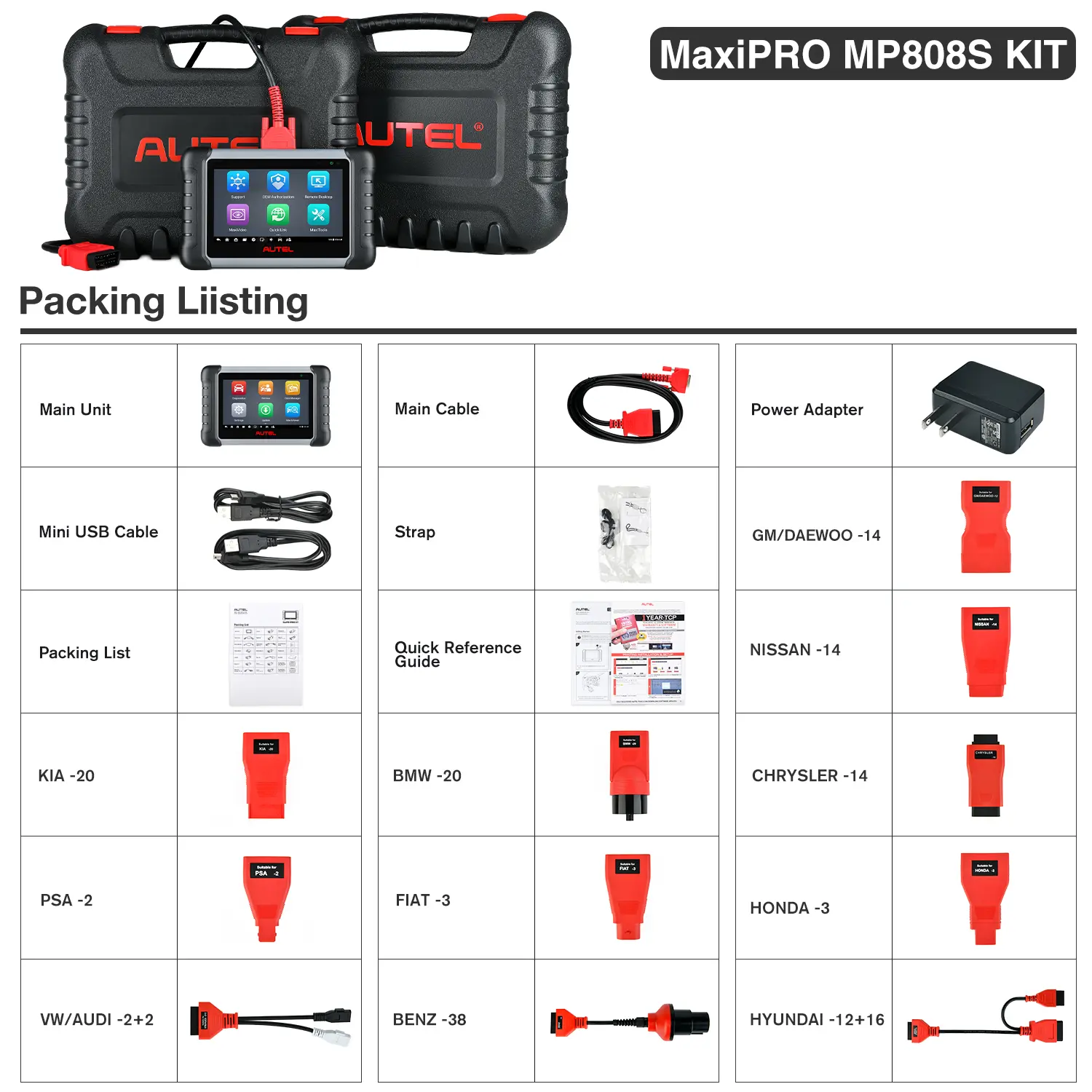

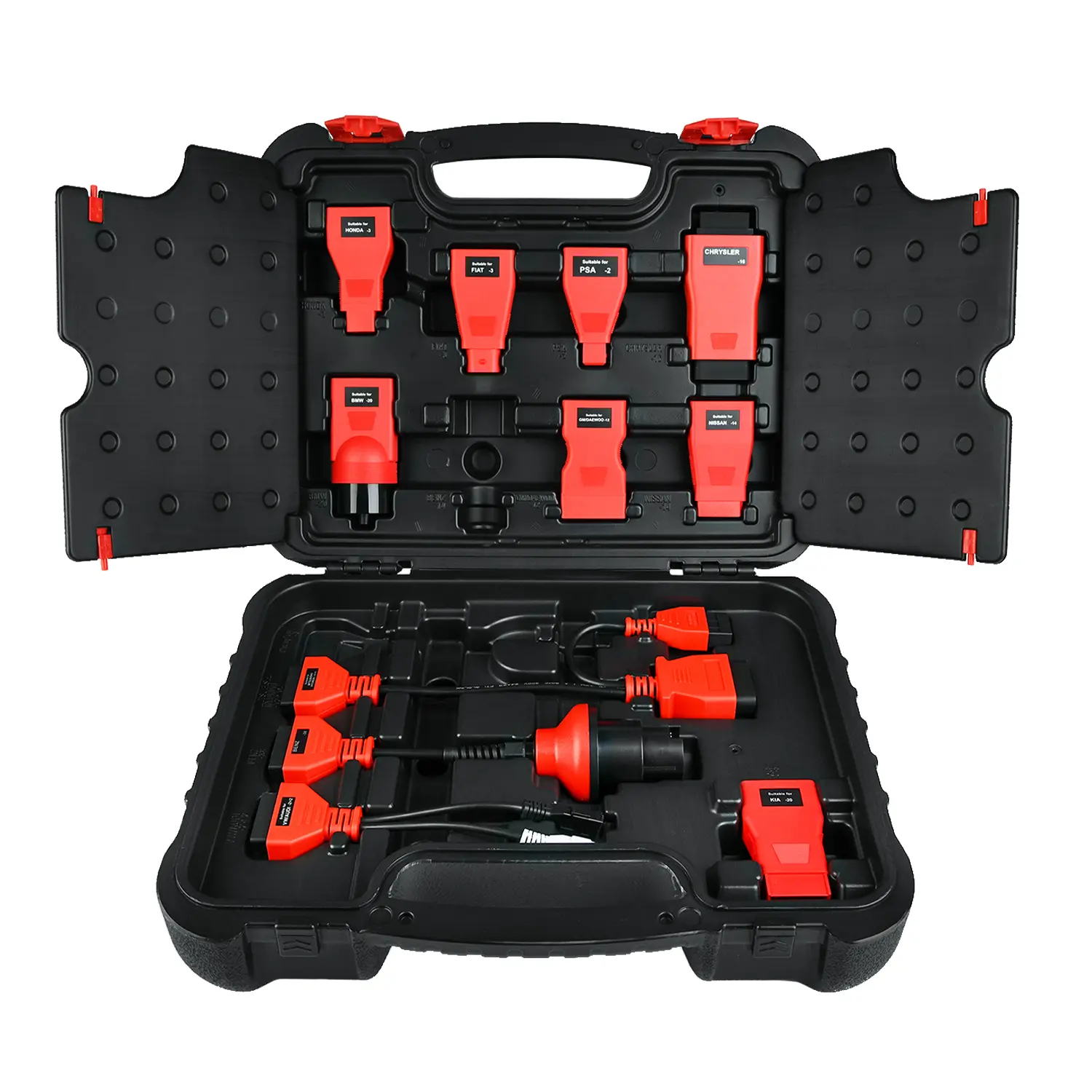

Packing List

• 1x MP808S Main Unit
• 1x Main Cable
• 1x Mini USB Cable
• 1x Power Adapter
• 1x Honda-3
• 1x Nissan-14
• 1x Mitsubishi/Hyundai-12+16
• 1x Kia-20
• 1x BMW-20
• 1x Volkswagen Audi-2+2
• 1x GM/Daewoo-12
• 1x Benz-38
• 1x Fiat-3(Available in Europe Only)
• 1x PSA-2(Available in Europe Only)
• 1x Chrysler-16(Available in America Only)
• 1x Benz-14(Available in Europe Only)
• 1x Quick Reference Guide
• 1x Packing List
• 1x Soft Cloth
• 1x Carrying Case(with Main Unit)380x300x120mm
• 1x Carrying Case(with Adapters)409x320x140mm

Product Guides & Downloads

• Autel MP808S KIT User Manual (PDF)
• MP808S KIT One Year Software Update
