Autel MaxiCOM Ultra Lite S with Topology Module Mapping

MaxiCOM Ultra Lite / Ultra Lite S is a multi-platform diagnostics solution comprised of a powerful 12.7-inch TFT-LCD touchscreen Android-based tablet, a VCI communication and diagnostics unit, and an on-tool and cloud-based repair instructions and expert advice.

Autel MaxiCOM Ultra Lite S Features

  • 2-Year Free Software Updates & One Year Free Warranty
  • Autel updates provide latest OE level coverage for more than 80 US domestic, Asian and European vehicles, including supercar
  • Exceptional OE-Level functionality from comprehensive OBDII diagnostics & services to advanced ECU coding and programming
  • Automatic system and software updates with real-time push message notifications via internet
  • Interactive Data Logging sessions enable direct contact with Autel Support for first-hand troubleshooting of diagnostic bugs and errors
  • One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized
  • Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes
  • Ultra Lite S features an advanced visual topology map 2.0 that represents real ECU circuit layouts. This unique feature makes it easier for technicians to identify and solve problems more accurately and quickly than with standard diagnostic tools.



Specifications

Operating System: Android 7.0
Processor: Samsung Exynos8895V octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53)
Memory: 4GB RAM 256GB On-board Memory
Display: 12.7 inch TFT-LCD with 2732 x 2048 resolution capacitive touch screen
Connectivity: WiFix2 (802.11 a/b/g/n/ac 2x2 MIMO),BT v.2.1 + EDR,GPS
USB 2.0 (Two USB HOST Type A, one USB mini device),HDMI 2.0,SD Card (Support up to 256GB)
Camera Rear: 16 Megapixel, Autofocus with Flashlight
Front: 5 Megapixel
Sensors Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output Microphone,Dual Speakers,3-Band 3.5 mm stereo/standard headset jack
Power and Battery 18000mAh 3.8 V lithium-polymer battery
Charging via 12 V AC/DC power supply with the temperature between 0°C and 45°C
Input Voltage 12V/3A Adapter
Operating Temp.: 0 to 50°C (32 to 122°F)
Storage Temp -20 to 60°C (-4 to 140°F)
Dimensions (W x H x D) 366.5 mm (14.43") x 280.9 mm (11.06") x 34 mm (1.34")
Weight 2.18kg (4.81 lb.)
Protocols DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can (GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20),NN TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock , BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)

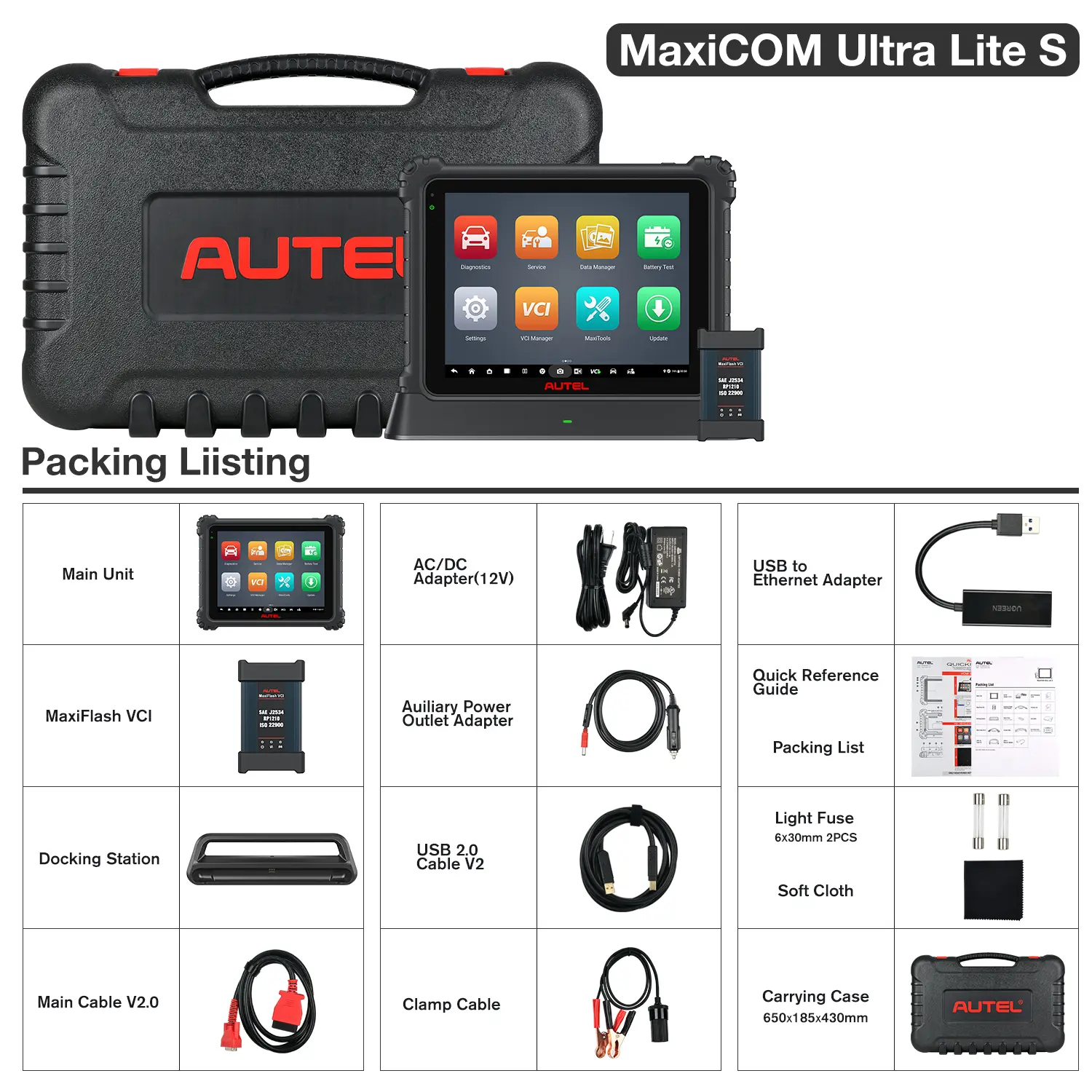

Packing List

  • 1x MaxiCOM Ultra Lite S Main Unit
  • 1x MaxiFlash VCI
  • 1x Docking Station
  • 1x Main Cable V2.0
  • 1x USB 2.0 Cable V2
  • 1x AC/DC Adapter(12V)
  • 1x Auxiliary Power Outlet Adapter
  • 2x Spare Fuse 6x30mm
  • 1x Clamp Cable
  • 1x USB to Ethernet Adapter
  • 1x Quick Reference Guide
  • 1x Packing List
  • 1x Soft Cloth
  • 1x Carrying Case 650 x 185 x 430 mm
Ultra Lite S User Manual (PDF)
