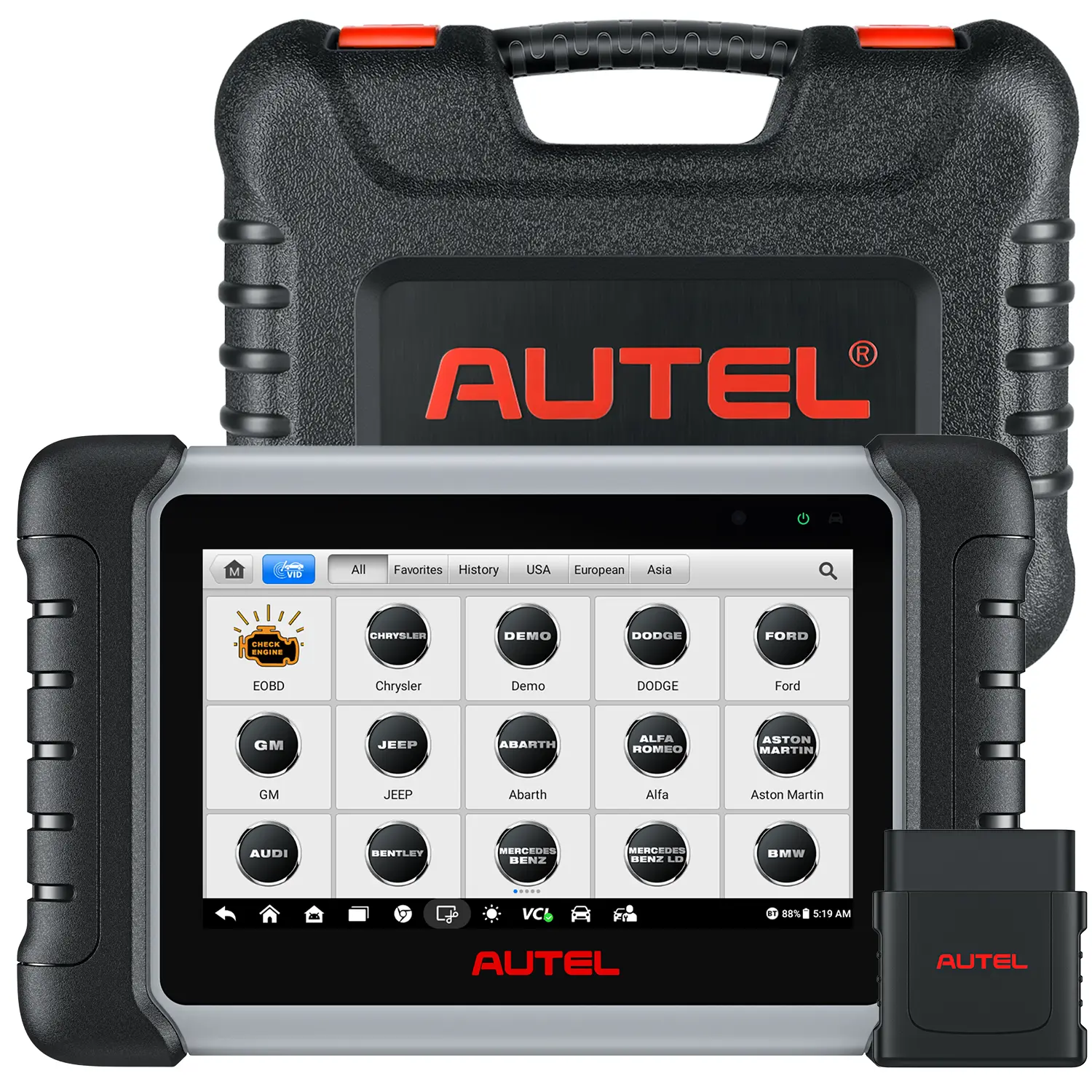

Autel MaxiPro MP808BT PRO

Autel MaxiPRO MP808BT PRO with Advanced ECU Coding

The MaxiPRO MP808BT PRO is a 7-inch wireless Android-based touchscreen tablet with All Systems Scan functionality and an extensive Service Menu for U.S., Asian, and European vehicles, 1996 and newer.

The MP808BT PRO, which is equipped with a Bluetooth-enabled VCI, can read and erase codes, view Freeze Frame data and view and graph Live Data for all available systems.

The MP808BT PRO features a powerful Cortex-A55 1.8 GHz processor and 64 GB onboard memory. It offers technicians an extensive service menu, enabling them to quickly perform the most common service tasks.

Advanced features include AutoVIN to instantly identify the vehicle make, model, and year and a cloud-based report management feature to share and manage reports.

Autel MaxiPRO MP808BT Pro Features

• 2-Year Free Software Updates & One Year Warranty
• Bi-directional Control function supports active tests that send commands to the vehicle's ECU, activating actuators like ABS, windows, doors, solenoids, relays, switches, valves, headlamps, and more, enabling direct monitoring of their operations to help pinpoint faulty issues.
• All Systems/All Service 7-inch touchscreen wireless tablet
• Compatible with U.S., Asian and European vehicles, 1996 and newer.
• Read and Erase Codes on all available vehicle systems.
• View Freeze Data and View and Graph Live Data.
• AutoVIN technology for rapid vehicle identification
• Exceptional OE-Level system coverage for all electronic systems
• Cloud-based report management for easy viewing and sharing
• Powerful Cortex-A55 processor (1.8 GHz) processor
• 7-inch LCD capacitive touchscreen with 1024 x 600 resolution display
• 64GB On-board Memory for better performance
• Android 11 Operating System for fast boot-up and multitasking
• Ergonomic design with rubberized outer protection and a rugged internal housing to withstand everyday shop use.
• Shop Management application designed to maintain customer information and vehicle history data.



Specifications

Operating System:	Android 11
Processor:	Rockchip RK3566
Memory:	4G & 64GB
Display:	7-inch LCD capacitive touchscreen with 1024x600 resolution
Sensors;	Ambient light sensor for brightness auto changing
Audio Input/Output:	•Input: N/A, Output: buzzer
Power and Battery:	3.7 V/5000 mAh lithium-polymer battery Charges via 5 VDC power supply
Tested Battery Life:	Around 4.5 hours of continuous use
Battery Charging Input:	5 V/1.5 A
Power Consumption:	500 mA (LCD on with default brightness, Wi-Fi on) @3.7 V
Operating Temp.:	0 to 55°C(32 to 131°F)
Storage Temp.:	-20 to 60°C (-4 to 140°F)
Operating Humidity:	5% - 95% non-condensing
Dimensions (W x H x D):	237.8 mm (9.4") x 148.6 mm (5.9") x 35.5 mm (1.4")
Net Weight	788 g (1.74 lb.)
Protocols	ISO9141-2,ISO14230-2,ISO15765,K/L-Line,Flashing Code,SAE-J1850 VPW,SAE-J1850PWM, SAE J2610,GM UART UART Echo Byte Protocol, ISo11898(Highspeed, Middlespeed,Low-speed and Singlewire CAN,fault-tolerant CAN)Honda Diag-H Protocol,TP2.0,TP1.6

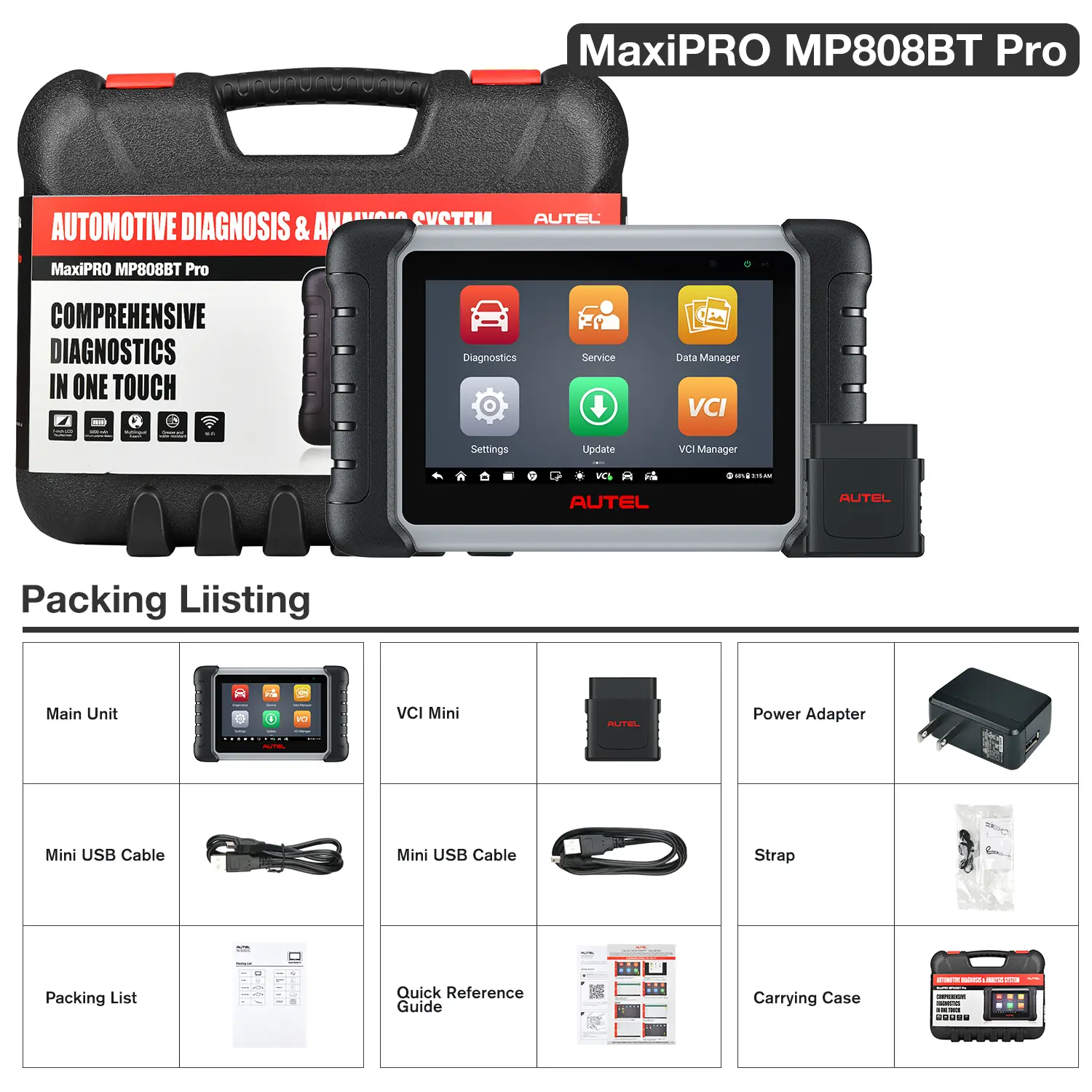

Packing List

• 1x MaxiPro MP808BT Pro Main unit
• 1x VCI mini
• 1x Power Adapter
• 1x Mini USB Cable
• 1x Main Cable
• 1x Carrying Case
• 1x Packing List
• 1x Strap
• 1x Quick Reference Guide



MP808BT PRO User Manual (PDF)
MP808BT PRO One Year Software Update
