![[2 Years Free Update] Autel MaxiIM IM608S II Full Kit](/images/auteldealerstore.shop/images/product/2-years-free-update-autel-maxiim-im608-pro-ii-full-kit-1.webp)
[2 Years Free Update] Autel MaxiIM IM608S II Full Kit
Autel MaxiIM IM608S II Full Kit 2026 Latest Key Programming Tool

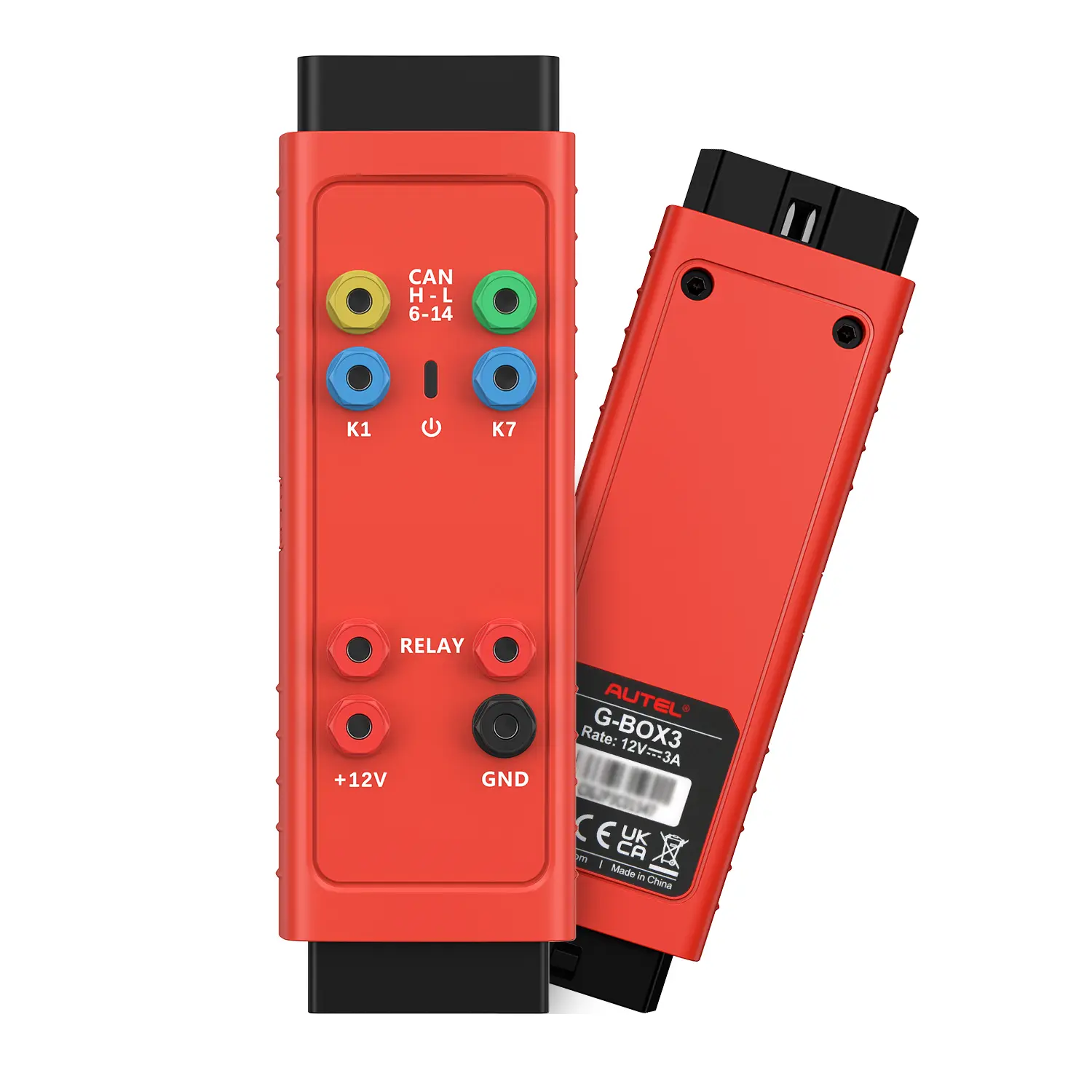

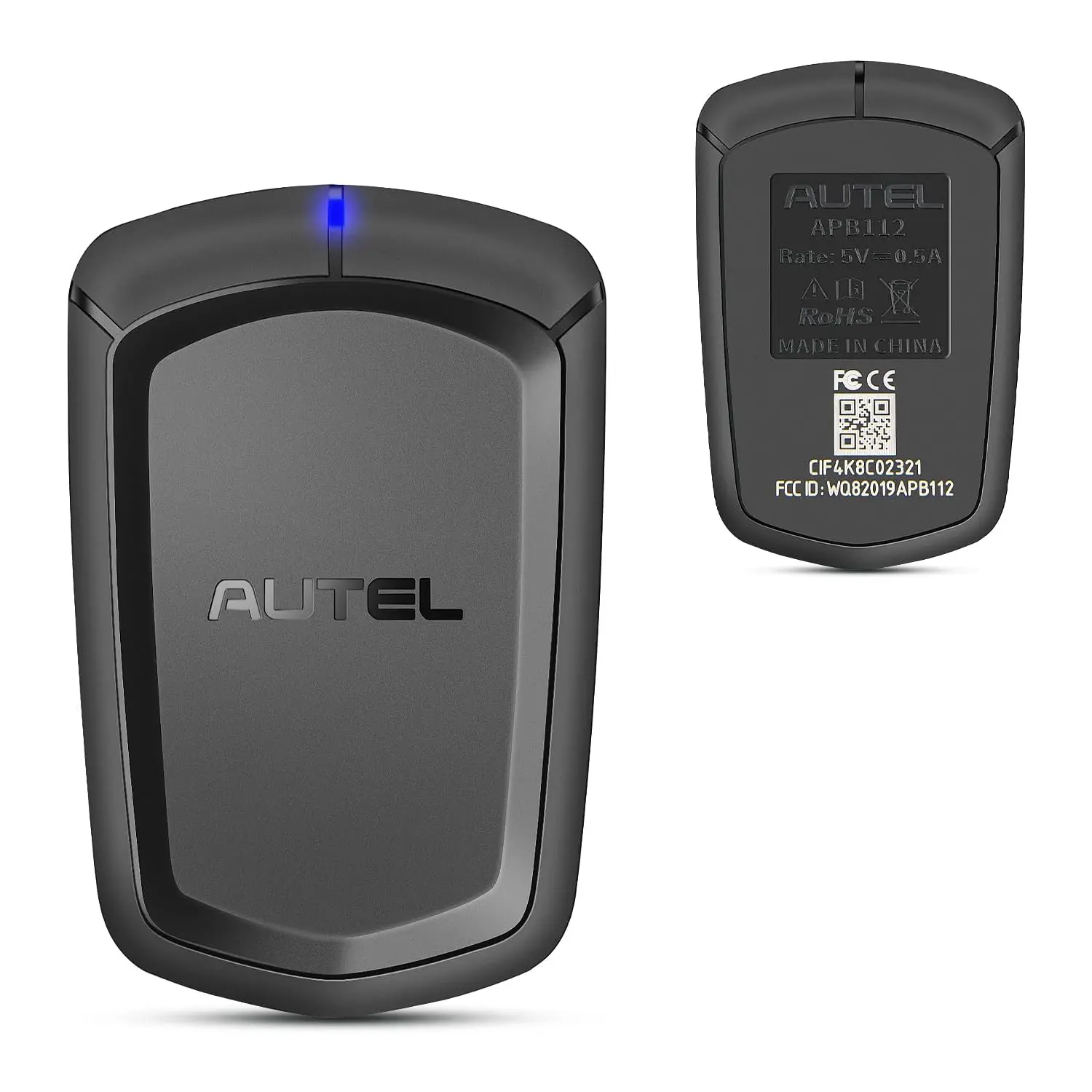

Autel IM608S II/IM608PRO II FULL Kit is the perfect combination of a top diagnostic scanner and key fob programming tool with latest Android 10 OS, designed for pro locksmiths and auto mechanics. It is equipped with XP400 PRO key programmer, G-BOX3, APB112, IMKPA, and MaxiFlash ECU programmer to provide complete coverage of IMMO and programming functions.
Autel MaxiIM IM608S II Full Kit Features
- Includes one year free warranty and two years free updates
- Smart Mode for guided and automated key learning
- Expert Mode for advanced key learning
- Read PIN/CS (all keys lost), key generation, key learning, remote learning
- IMMO ECU reset/adaptation, refresh/coding
- Transponder read/write, EEPROM/MCU read/write
- Advanced, OE-Level Diagnostics for more than 80 U.S., Asian, and European vehicles
- Extensive maintenance/services menu, including direct-access to EPB, DPF, SAS, Oil Reset, and BMS functions
- All maintenance reports stored in the cloud, allowing you to view device and test records anytime, anywhere
- Qualcomm Octa-core Processor (2.2GHz) and 128GB Storage Memory
- 10.1-inch LCD touchscreen with 1920 x 1200 resolution
- Android 10 Operating System for fast boot-up and multitasking
Specification
| Operating System: | Android 10 |
| Processor: | Qualcomm SDM660 Octa-core Processor (2.2GHz ) |
| Memory: | 4GB RAM &128GB On-board Memory |
| Display: | 10.1-inch LED capacitive touchscreen with 1920x1200 resolution |
| Connectivity: | Wi-Fi (802.11 a/b/g/n/ac); USB: 2.0; BT v.2.1 + EDR; SD Card (Support up to 64GB); HDMI |
| Sensors; | Light sensor for brightness auto adjust |
| Power and Battery: | 15000 mAh 3.8 V lithium-polymer battery Charging via 12 V AC/DC power supply |
| Input Voltage | 12 V (9-24 V) |
| Power Consumption: | 6.5 W |
| Operating Temp.: | 0 to 50°C (32 to 122°F) |
| Storage Temp.: | -20 to 60°C (-4 to 140°F) |
| Dimensions (WxHxD): | 300 mm (11.81”) x 220 mm (8.66”) x 50 mm (1.97”) |
| Net Weight: | NW: 1.58 kg (3.48 lb.) |
| Supported Automotive Protocols | ISO 9142-2, ISO 14230-2, ISO 15765-4, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898, Highspeed, Middlespeed, Lowspeed and Singlewire CAN, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP 2.0, TP 1.6, SAE J1939, SAE J1708, Fault-Tolerant CAN |

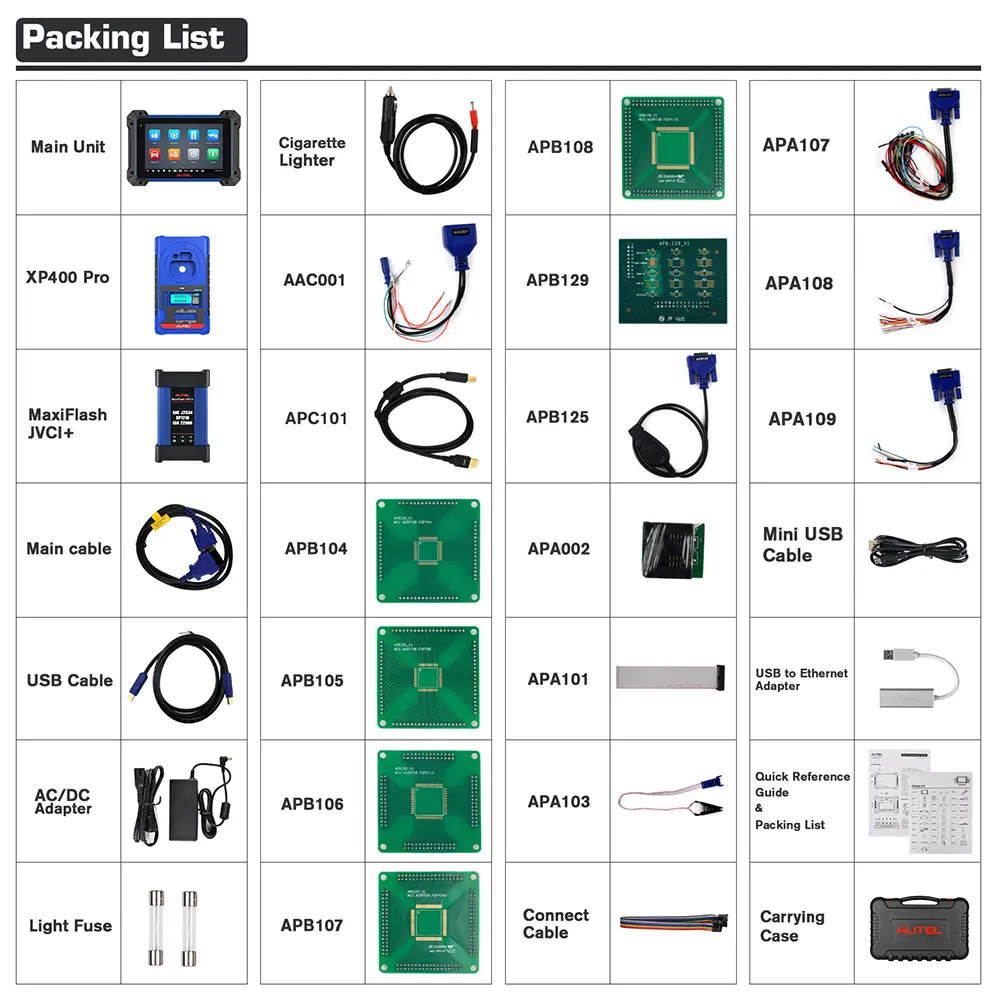

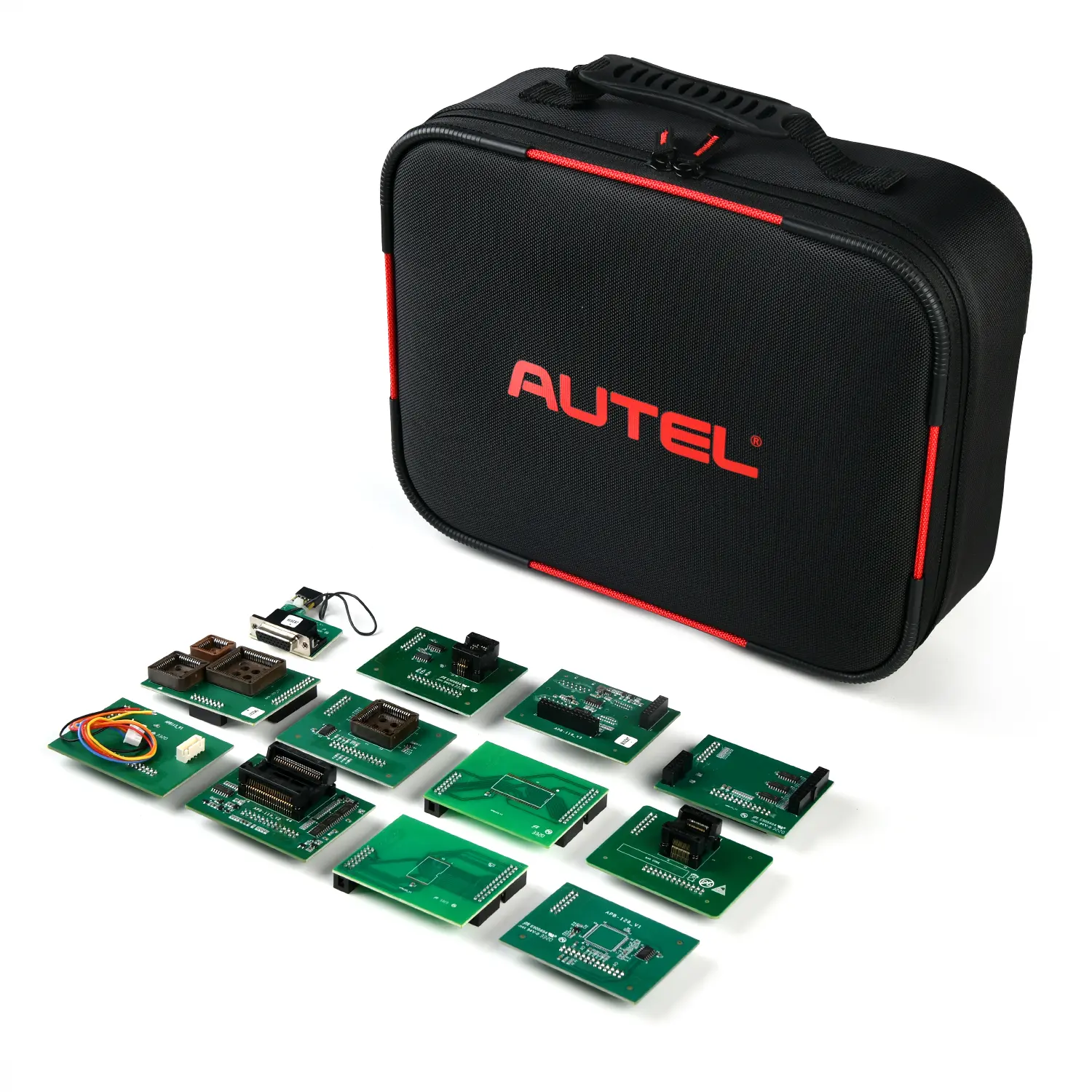

Packing List
- MaxiIM IM608 Pro II/IM608S II Tablet
- 1x MaxiFlash JVCI+
- 1x XP400 Pro
- 1x G-BOX3
- 1x APB112
- 1x IMKPA
- 1x Main Cable
- 1x UBS Cable
- 1x Mini USB Cable
- 1x AC/DC Adapter
- 2x Spare Fuse 6x30mm
- 1x Auxiliary Power Outlet Adapter
- 1x AAC001
- 1x USB to Ethernet Adapter
- 1x APC101 USB Cable
- 1x APB104 MCU_FQFP64
- 1x APB105 MCU_FQFP80
- 1x APB106 MCU_FQFP112
- 1x APB107 MCU_FQFP144
- 1x APB108 MCU_FQFP176
- 1x APB129 EEPROM Adapter
- 1x APB125 Mercedes Infrared Collected
- 1x APA002 EEPROM Socked
- 1x APA101 Signal Cable
- 1x APA103 EEPROM Clamp
- 1x APA107 ECU Cable
- 1x APA108 MCU Cable
- 1x APA109 MC9S12 Cable
- 1x Connect Cable
- 1x Quick Reference Guide
- 1x Packing List
- 1x Carrying Case(634*170*404mm)
Product Guides & Downloads
- Autel IM608S II User Manual (PDF)
- IM608S II One Year Software Update
$3,088.00
