Autel MaxiSys MS909S2 (US Shipping Only)
Autel MaxiSys MS909S2 Next Level Diagnostics & Analysis System
MaxiSys MS909S2 is an 11-inch touchscreen Android-based advanced diagnostic tablet that sets a new benchmark for efficiency and accuracy. Upgraded hardware and next-gen features deliver near OEM-level diagnostics and service capability for cars and light trucks.
Autel MaxiSys MS909S2 Features
- Data-driven diagnostics with enhanced PID analysis; multi-PID selection lets you graph and compare related parameters at the same time to spot system anomalies quickly
- Record and compare value changes across multiple systems; ideal for engine fault, performance and emissions troubleshooting
- Vehicle system process diagram displays live data at critical points so you see exactly what is happening when it happens
- Enhanced split-screen diagnostics + X (multiple apps) lets you view live data, scope, topology or DVI side by side without switching screens
- Hands-free virtual assistant MAX responds to verbal commands; initiate a system scan, open maintenance routines or run active tests without touching the tablet
- Network topology 3.0 delivers dynamic network analysis with color-coded module status at a glance
- One-Tap Access to 45+ Maintenance and Reset Service Functions.
- Advanced digital vehicle inspection through multi-point DVI creates a visual report customers can see and approve on the spot
- Comes with one year free warranty and software updates.
Motor TruSpeed Repair (Optional)
Motor TruSpeed Repair is an online database providing comprehensive OEM-sourced repair and service data. The service features advanced search capabilities and vehicle-specific repair guidance to assist diagnostics and repair workflows.
- Comprehensive OEM repair and service data
- Vehicle-specific fault guidance and troubleshooting
- Fast, searchable access to the latest technical information
Note: Motor TruSpeed Repair is an optional subscription service (USD 650/year).
Data-Driven Diagnostics
- Data Visualization: Multi-parameter graphing to identify PID relationships and system anomalies.
- Live Data Fusion: Record and compare values across multiple systems for correlation analysis.
- Parameter Grouping: Multi-PID selection for simultaneous analysis.
- Reference Sampling: Save pre- and post-repair PID samples with min/max/average values for verification.
Specifications
| Item | Description | MaxiSys MS909S2 |
| HARDWARE | Storage | 12GB+256GB |
| Screen | 11" inch | |
| 2176*1600 | ||
| Android System | Android 13 | |
| Battery | 15000 mAh | |
| Camera | R:16M, F:16M | |
| WiFi | Dual wifi6e | |
| DC Fast Charging | DC | |
| Bluetooth | Support | |
| VCI | VCI 2 | |
| Charging Dock | NA | |
| VCI2 | Oscilloscope | NA |
| Multimeter | NA | |
| Protocol | DoIp | Support |
| CanFD | Support | |
| J2534 | Support | |
| D-PDU | Support |

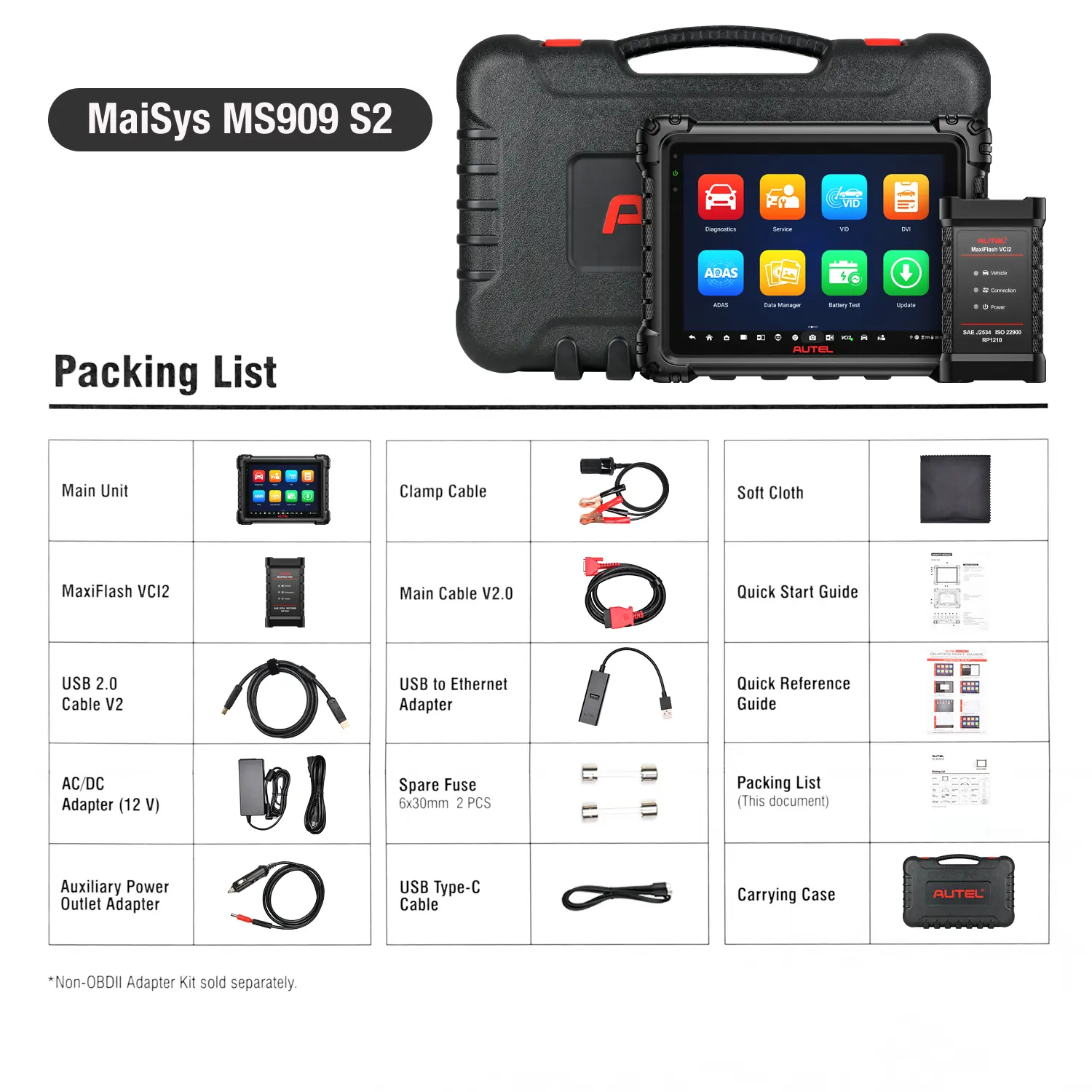

Packing List
- 1 x MS909S2 Main Unit
- 1 x MaxiFlash VCI2
- 1 x USB 2.0 Cable V2
- 1 x AC/DC Adapter (12V)
- 1 x Auxiliary Power Outlet Adapter
- 1 x Clamp CABLE
- 1 x Main Cable V2.0
- 1 x USB to Ethernet Adapter
- 1 x USB Type-C Cable
- 1 x Soft Cloth
- 1 x Quick Reference Guide
- 1 x Packing List(This document)
- 1 x Carrying Case
MaxiSys MS909S2 Product guides and documents
UltraS2-MS919S2-MS909S2-Flyer-Global (PDF)
MS909S2_QUICK GUIDE (PDF)
MaxiSys MS909S2_User Manual (PDF)
