Autel MaxiSys Ultra EV

Autel MaxiSys Ultra EV Advanced EV Diagnostics with MaxiFlash VCMI

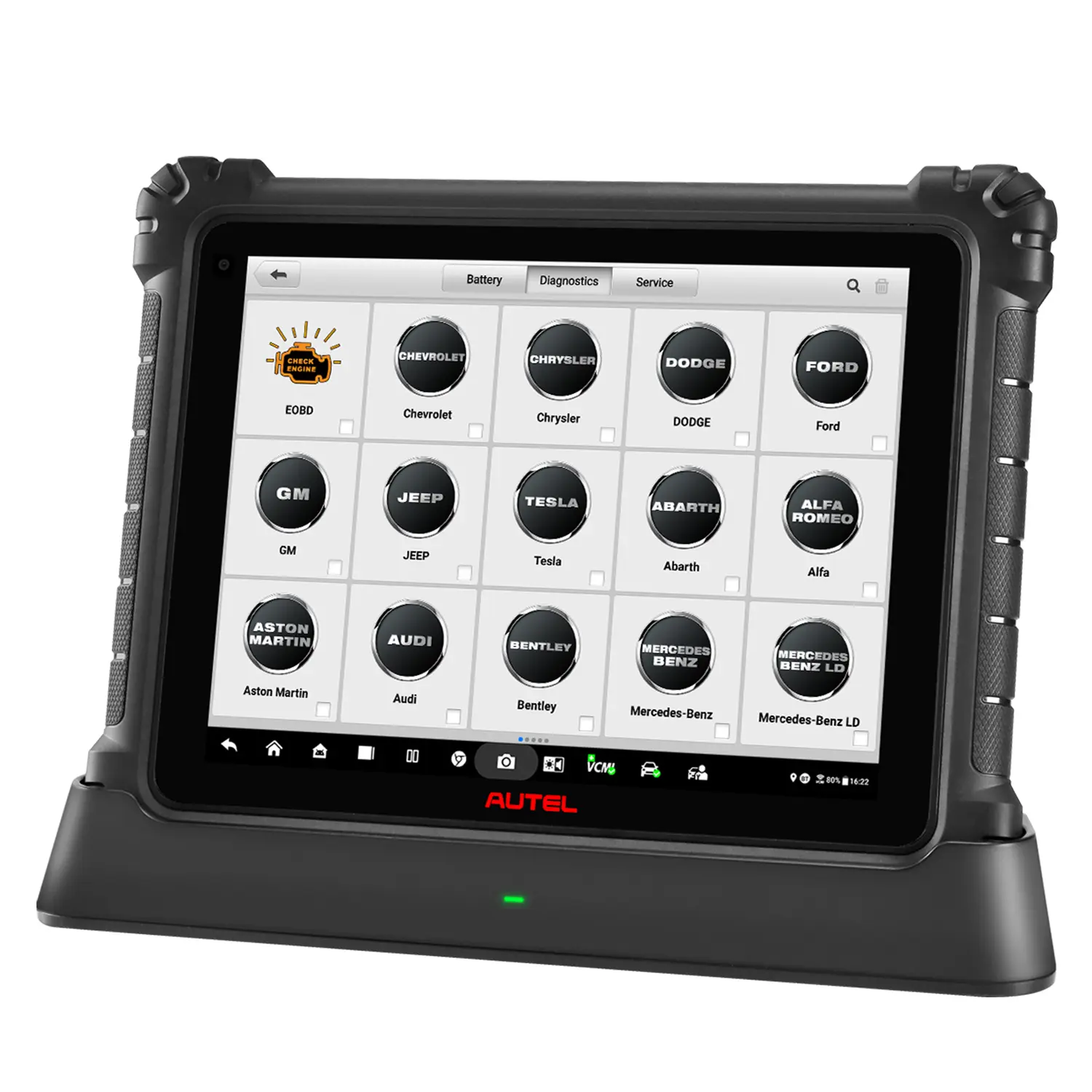

The MaxiSys Ultra EV is a new generation of advanced diagnostics for electric, hybrid, gas, and diesel vehicles. The Ultra EV provides a comprehensive analysis of electric and hybrid vehicles with expanded topology mapping and battery pack analysis that can be performed via OBD or directly with included specialty cables and jumpers. The Ultra EV screen displays detailed graphics and in-depth connection guidance to provide safe and secure testing. The 12.9-inch Ultra EV touchscreen tablet comes equipped with the MaxiFlash VCMI (5-in-1) measurement device, Bluetooth-enabled vehicle communication interface and J2534 pass-thru programming device, and a dedicated EVDiag box.

Autel MaxiSys Ultra EV Features

• 1-Year Free Software Update & Warranty
• Advanced diagnostics for U.S., European and Asian electric, gas, diesel, and hybrid vehicles
• Rapid analysis of EV high-voltage system including ability to read and erase codes and view live data
• Comprehensive diagrams of high-voltage system block, components and sockets; Step-by-step system disassembly instructions
• State of Charge and State of Health analysis for true battery condition

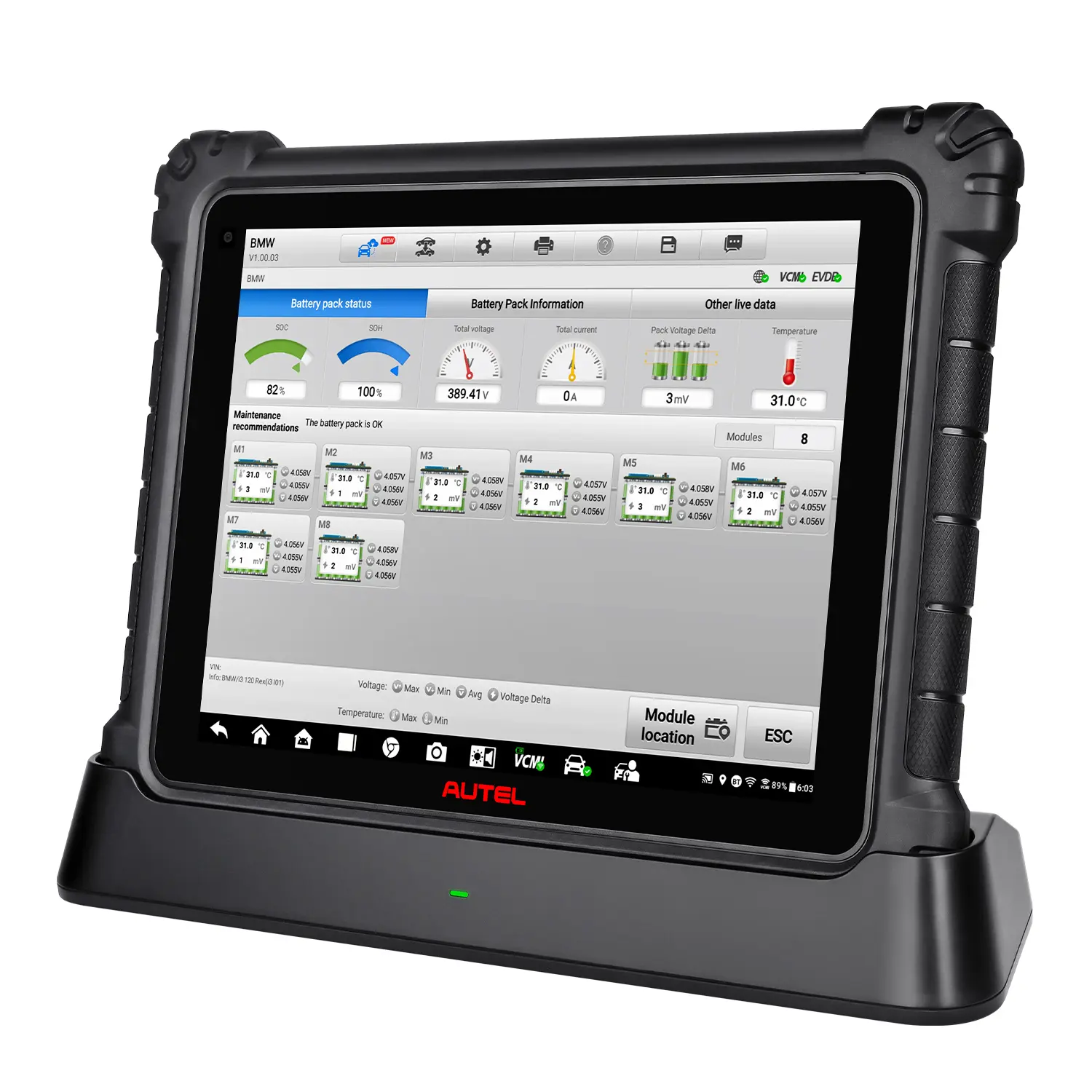

• Battery pack analysis can be performed via OBD or analyze the pack directly with included specialty cables and jumpers; the Ultra EV screen displays detailed graphics and in-depth connection guidance to provide safe and secure testing
• Interactive Data Logging sessions enable direct contact with Autel Support for first-hand troubleshooting of diagnostic bugs and errors
• One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized
• Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes
• Ultra EV features Topology Mapping 2.0, which is able to display a CAN BUS tree with color coded modules in one page, which can present full system diagnostic results visually and make you work just to the point precisely
• Different from traditional scan tools, the automotive diagnostic scan tool Autel Ultra is equipped with an advanced 5-in-1 VCMI combining VCI, oscilloscope, waveform generator, multimeter, and OBD2 CAN BUS Check, it can perform super precise and most overall diagnostic and services on 99% vehicles on the market



Specifications

Operating System	Android 7.0
Processor	Samsung Exynos8895V octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53)
Memory	4GB RAM & 256GB On-board Memory
Display	12.7 inch TFT-LCD with 2732 x 2048 resolution & capacitive touch screen
Connectivity	WiFix2 (802.11 a/b/g/n/ac 2x2 MIMO) BT v.2.1 + EDR GPS USB 2.0 (Two USB HOST Type A, one USB mini device) HDMI 2.0 SD Card (Support up to 256GB)
Camera	Rear: 16 Megapixel, Autofocus with Flashlight Front: 5 Megapixel
Sensors	Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output	Microphone Dual Speakers 3-Band 3.5 mm stereo/standard headset jac
Power and Battery	18000mAh 3.8 V lithium-polymer battery Charging via 12 V AC/DC power supply with the temperature between 0°C and 45°C
Input Voltage	12V/3A Adapter
Operating Temperature	0 to 50°C (32 to 122°F)
Storage Temperature	-20 to 60°C (-4 to 140°F)
Dimensions(W x H x D)	366.5 mm (14.43″) x 280.9 mm (11.06″) x 34 mm (1.34″)
Weight	2.18kg (4.81 lb.)
Protocols	DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can (GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)



Packing List

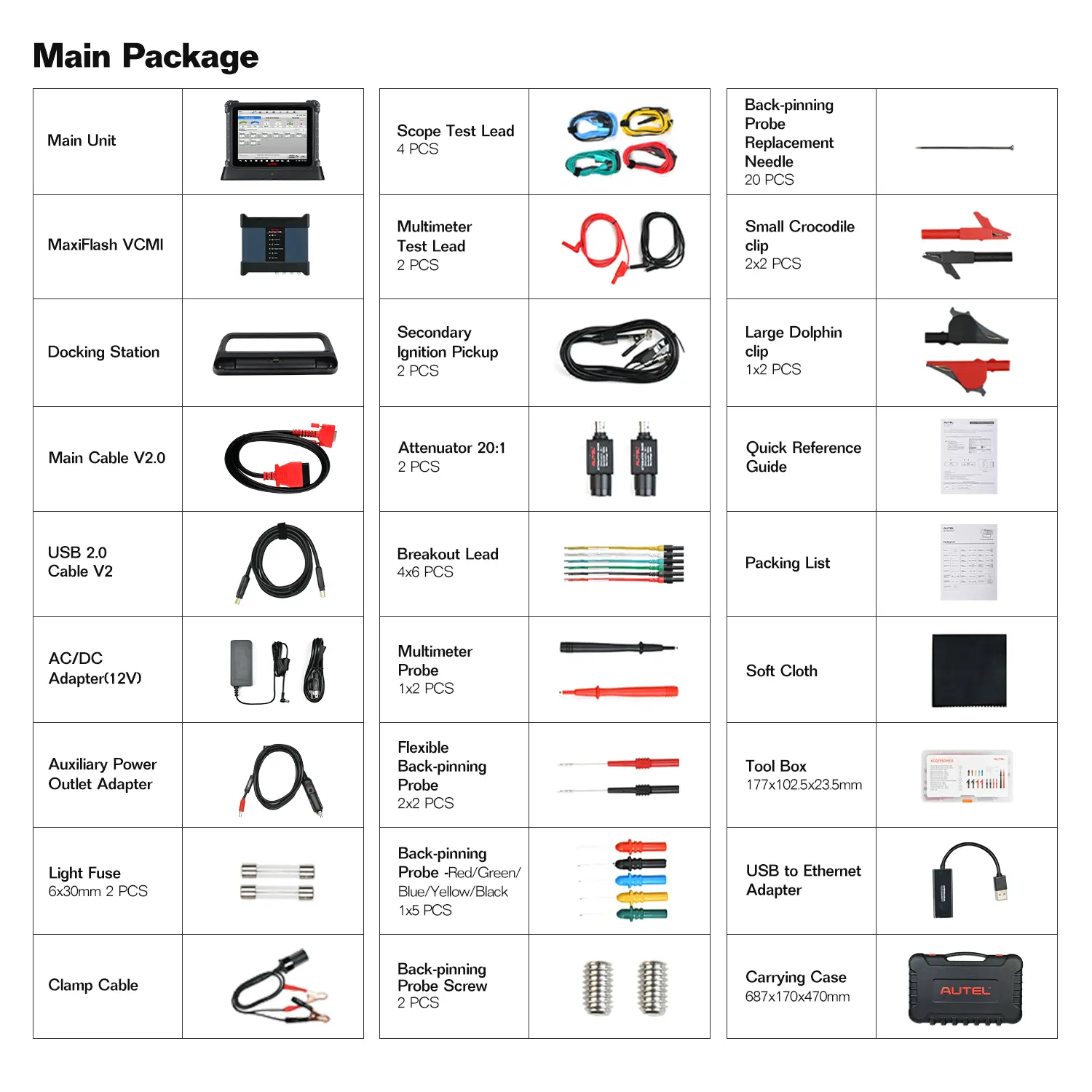

• 1 x Maxisys Ultra Main Unit
• 1 x MaxiFlash VCMI

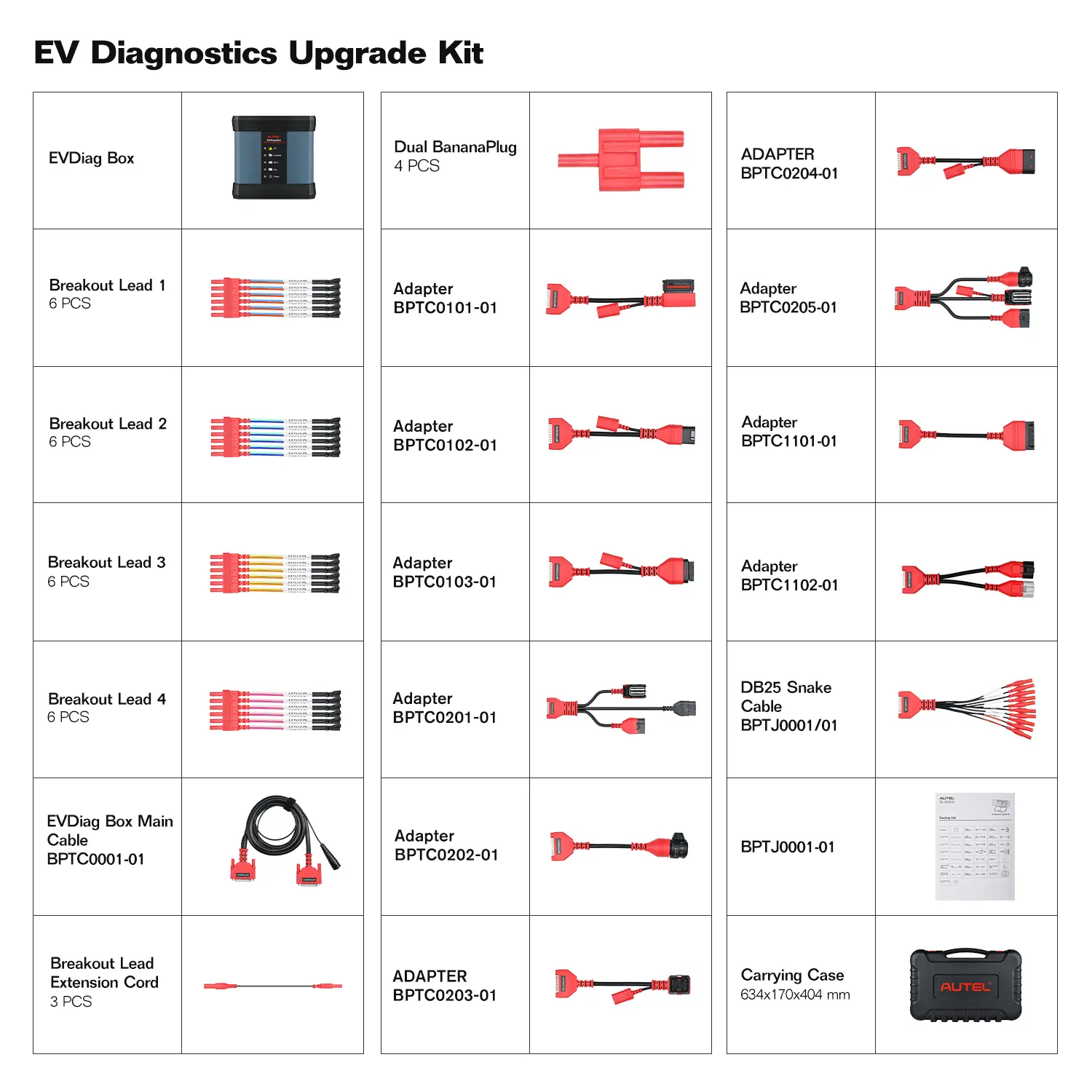

• 1 x EVDiag Box
• 1 x Docking Station
• 1 x Main Cable V2.0
• 1 x USB 2.0 Cable V2
• 1 x AC/DC Adapter(12V)
• 1 x Cigarette Lighter
• 2 x Light Fuse (6x30mm )
• 1 x Clipper Cable
• 4 x Scope Test Lead
• 2 x Multimeter Test Lead
• 2 x Secondary Ignition Pickup
• 2 x Attenuator 20:1
• 4 x 6 Breakout Lead
• 1 x 2 Multimeter Probe
• 2 x 2 Flexible Back-pinning Probe
• 1 x 5 Back-pinning Probe - Red/Green/Blue/Yellow/Black
• 2 x Back-pinning Probe Screw
• 20 x Back-pinning Probe Replacement Needle
• 2 x 2 Small Crocodile Clip
• 1 x 2 Large Dolphin Clip
• 1 x Soft Cloth
• 1 x Tool Box (177 x 102.5 x 23.5 mm)

• 1 x Main Cable BPTC0001/01

• 3 x Breakout Lead Extension Cord
• 4 x Dual Banana Plug
• 1 x Adapter BPTC0101/01
• 1 x Adapter BPTC0102/01
• 1 x Adapter BPTC0103/01
• 1 x Adapter BPTC0201/01
• 1 x Adapter BPTC0202/01
• 1 x Adapter BPTC0203/01
• 1 x Adapter BPTC0204/01
• 1 x Adapter BPTC0205/01
• 1 x Adapter BPTC1101/01
• 1 x Adapter BPTC1102/01
• 1 x DB25 Snake Cable BPTJ0001/01
• 2 x Packing List
• 2 x Quick Reference Guide
• 2 x Carrying Case
