Autel MaxiTPMS TS900 (US Shipping Only)
Autel MaxiTPMS TS900 with Complete TPMS Solution
The Autel MaxiTPMS TS900 TPMS tool is a versatile device that combines TPMS functionality and diagnostics. It features a wireless touchscreen tablet that offers a range of features including complete TPMS programming, relearning, and activation, more than 40 services, and OE-level diagnostics. Additionally, it offers new features such as WiFi printing, pre- and post-scans. The TS900 TPMS scan tool is also compatible with the Autel MX-Sensor BLE, which comes preprogrammed for Tesla vehicles.
Autel MaxiTPMS TS900 Features
- 1-Year Free Software Updates & Warranty
- Provides comprehensive TPMS coverage
- Programs AUTEL MX-Sensors to replace 99% of TPMS sensors on vehicles on the road today
- Offers industry-leading Relearn-by-OBD vehicle coverage
- Compatible with 315MHz, 433/434MHz, and 2.4GHz (BLE) frequency TPMS sensors
- Covers most U.S., European, and Asian vehicles (1996 and newer) to provide professional diagnostic services
- Supports all-system diagnostics (including reading and erasing codes, viewing Freeze Frame data, viewing and graphing Live Data, and performing bi-directional Active Tests and Special Functions)
- Features an extensive Service Menu with direct access to 38+ maintenance services
- Supports the latest communication protocols, including CAN FD/DoIP
- Generates detailed Pre- and Post-Scan Reports; Cloud-based Report Management enables viewing, saving, printing, and sharing reports on mobile phones, tablets, and computer browsers
- Auto-VIN technology automatically identifies a vehicle’s make, model, and year
- Equipped with an 8-inch touchscreen (1024 x 600 resolution) and an 8-megapixel rear camera
- 64GB onboard memory for fast processing and software access
- Runs on Android 11 operating system for fast boot-up and operation speed
Specifications
| Item | Description | |
| Tablet | Recommended Use | Indoor |
| Operating System | AndroidTM 11 | |
| Processor | Quad-Core (1.8 GHz) | |
| Memory | 4 GB RAM & 64 GB ROM | |
| Display | 8-inch LCD screen with 1280 x 800 resolution | |
| Rear Camera | 8 MP | |
| Connectivity |
• Wi-Fi |
|
| Sensors | Ambient light sensor for brightness auto changing | |
| Audio input/output | Input: N/A Output: buzzer |
|
| Power and Battery | • 3.7 V/7700 mAh lithium-polymer battery • Charges via 5 V DC power supply |
|
| Tested Battery Life | Around 7 hours of continuous use | |
| Battery Charging Input | 5 V/3 A | |
| Power Consumption | Approx. 600 mA (LCD on with default brightness, Wi-Fi on) @3.7 V | |
| Operating Temp. | 0 to 50 °C (32 to 122 °F) | |
| Storage Temp. | -10 to 60 °C (14 to 140 °F) | |
| Operating Humidity | 5% to 95% non-condensing | |
| Dimensions (W x H x D) | 1259.87 mm (10.23”) x 168.98 mm (6.65”) x 33.60 mm (1.32”) | |
| Net Weight | 998 g (2.2 lbs) | |
| Protocols |
ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISO11898 (High-speed, Middle-speed, Low-speed and Single-wire CAN, fault-tolerant CAN), SAE J2610, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6, DoIP, CAN FD |
|
| V150 | Communication | BR + EDR |
| Wireless Frequency | 2.4 GHz | |
| Input Voltage Range | 8 to 30 V DC | |
| Supply Current | 150 mA @ 12 V DC | |
| Operating Temp. | 0 to 50 °C (32 to 122 °F) | |
| Storage Temp. | -10 to 60 °C (14 to 140 °F) | |
| Dimensions (L x W x H) | 77.47 x 46.8 x 21.38 mm (3.05” x 1.84” x 0.84”) | |
| Weight | 51.5 g (0.11 lbs) | |

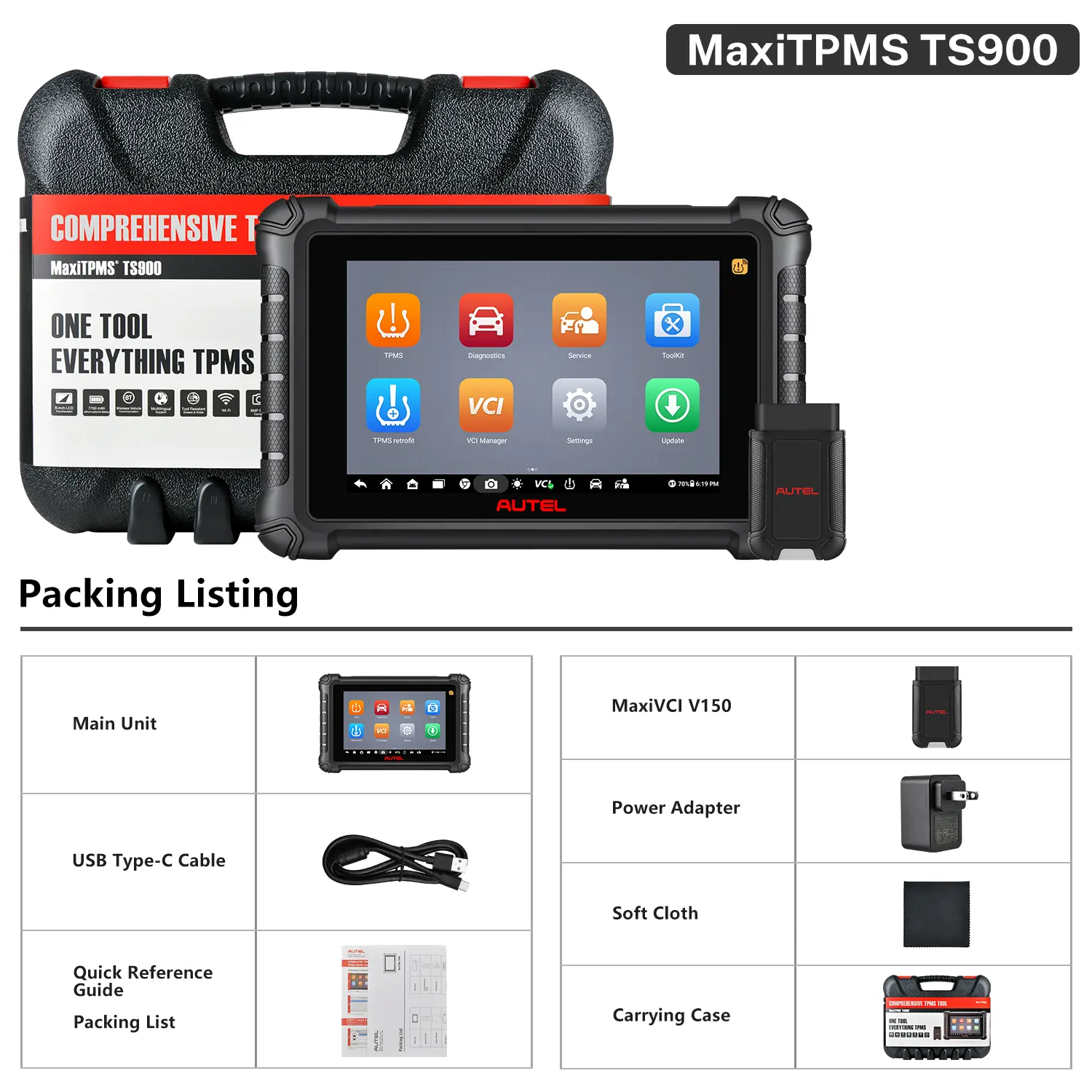

Packing List
- 1x TS900 Main Unit
- 1x MaxiVCI V150
- 1x Power Adapter
- 1x USD Type-C Cable
- 1x Soft Cloth
- 1x Quick Reference Guide
- 1x Packing List(This document)
- 1x Carrying Case
Product Guides & Downloads
- Autel TS900 User Manual (PDF)
- TS900 One Year Software Update
Original: $699.00
-65%$699.00
$244.65More Images
