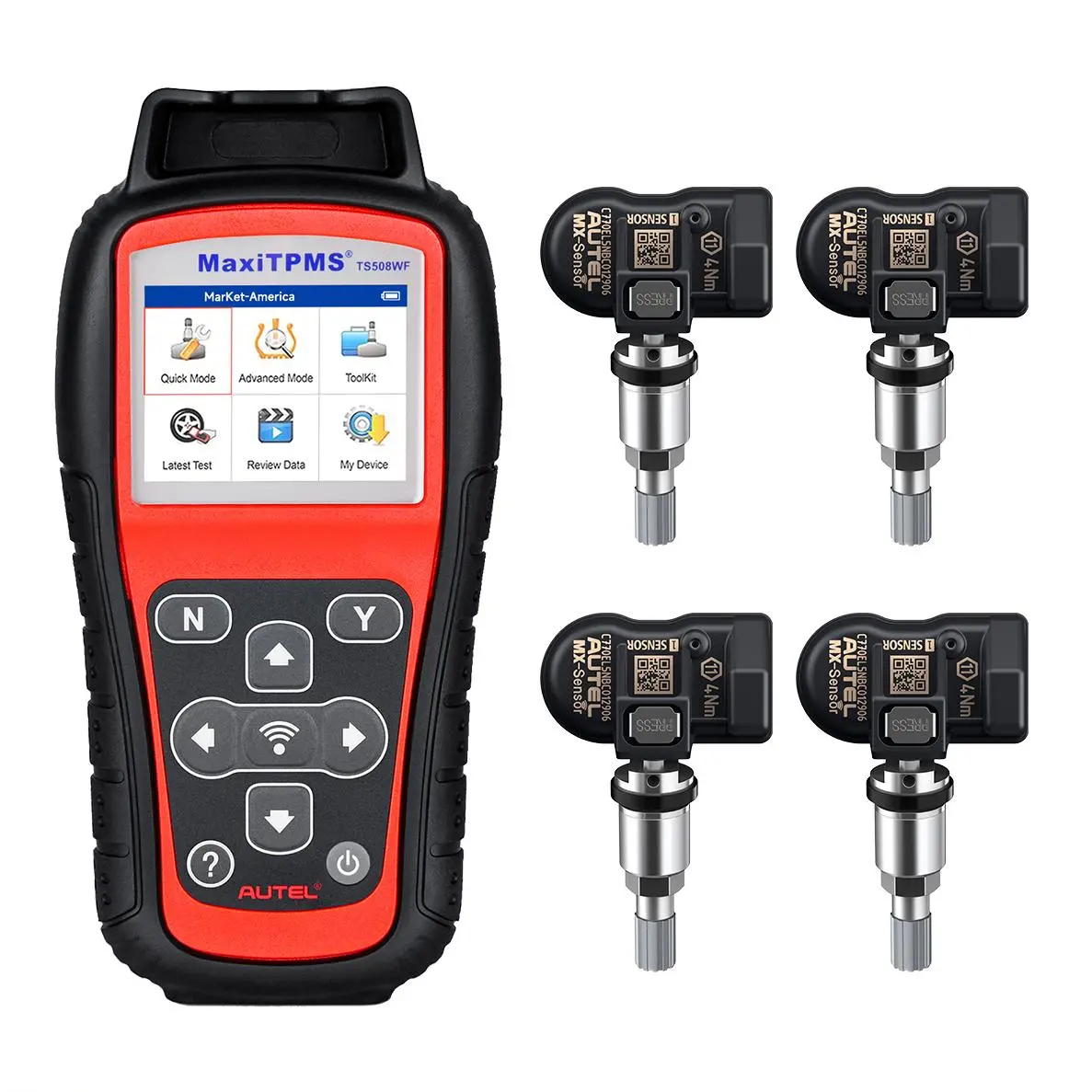

Autel MaxiTPMS TS508WF Kit - Metal Version

Autel MaxiTPMS TS508WF Kit

A new generation complete TPMS tool, the 2026 TS508WF provides faster and smarter TPMS repairs. Based on the TPMS service type needed, the option to choose the basic Quick Mode or the complete Advanced Mode will decrease repair time. As the 2026 newest MaxiTPMS tool, the TS508WF offers faster and smarter TPMS repairs for both mechanics and DIYers. It supports almost 99% of vehicles worldwide and integrates all essential functions in this powerful TPMS tool: TPMS Programming, Sensor Relearn & Activation, TPMS Reset & Diagnostics, Reading Sensor Data, Key Fob Test, etc.

Autel MaxiTPMS TS508WF Kit Features

• Reads, activates, and relearns all known TPMS sensors
• Detects and displays TPMS system faults
• Displays vehicle-specific relearn procedures; performs OBDII relearns
• Resets placard values on supported vehicles
• Updates software directly via tool-enabled Wi-Fi
• 2 programming options (for MX-Sensors only)
• Features a TPMS system status screen
• Performs key fob signal tests
• Includes free lifetime software updates (for the tool’s lifetime) and a 1-year warranty
• Displays sensor ID, battery life (on supported sensors), and PSI
• Comes with an OBDII cable
• Equipped with a 2.3-inch color display (320×240 resolution)
• Features easy-to-use navigation
• Built-in 3200mAh lithium-polymer battery



Specifications

Display	TFT color display (320 x 240 dpi)
Power	3.7 V Li-polymer battery; 3200 mAh
Operating Temp.	0°C to 50°C (32°F to 122°F)
Storage Temp.	-20°C to 70°C (-4°F to 158°F)
Dimensions	215 mm (8.46”) / 105 mm (4.13”) / 37 mm (1.46”)
Weight	0.39 kg (0.86 lb.)
Warranty	1 year
Software Update	Free



Packing List

• 1x MaxiTPMS TS508WF
• 4x Metal MX-Sensors
• 1x OBD II Cable
• 1x USB Cable
• 1x AC Adapter
• 1x Package List
• 1x Carrying Case
