Autel MaxiSys Ultra S2 EV

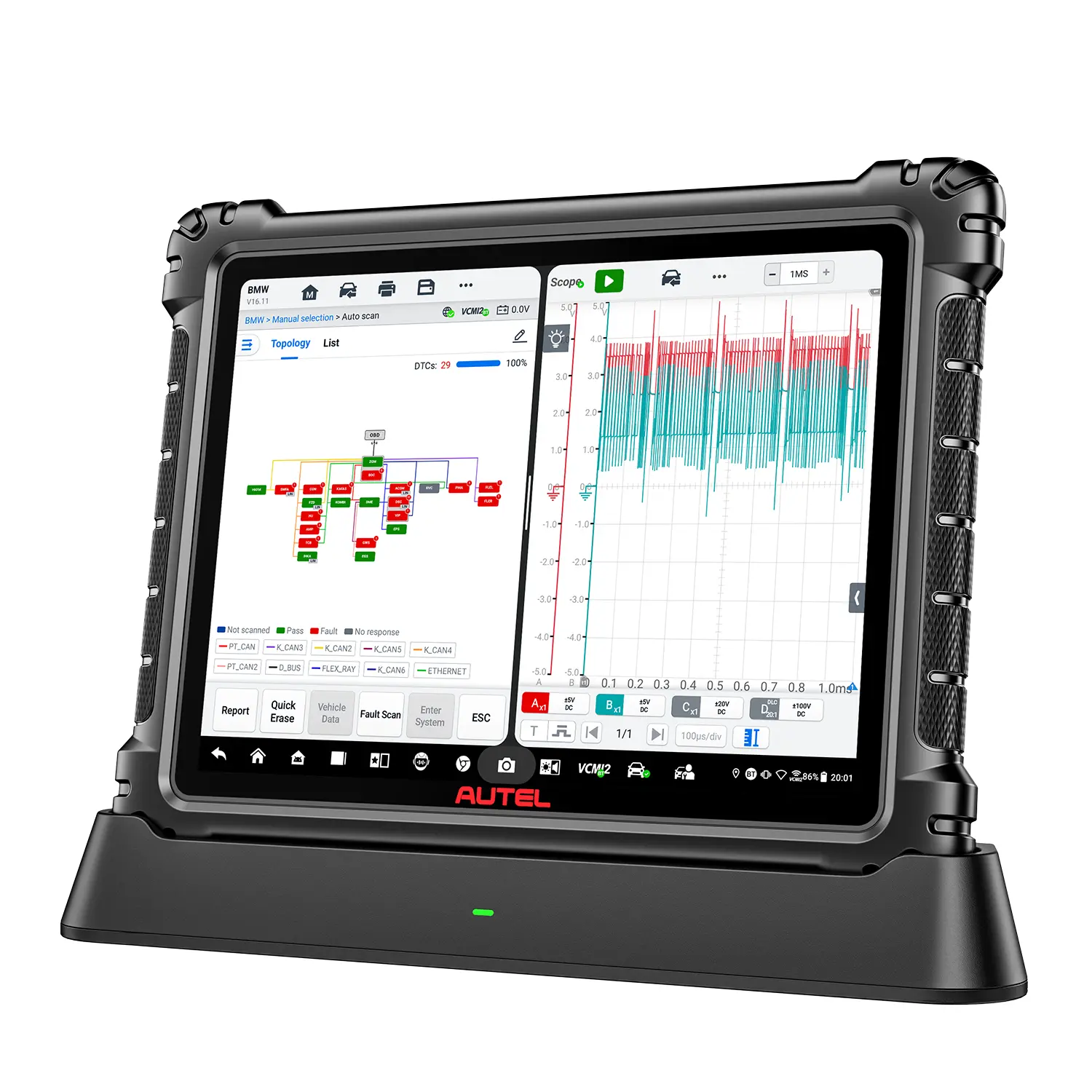

Autel MaxiSys Ultra S2 EV Diagnostic Scanner With AI

The Autel MaxiSys Ultra S2 EV combines the powerful Ultra S2 with the EV Upgrade Kit to deliver advanced diagnostics for electric, hybrid, gas, and diesel vehicles. It adds comprehensive EV high-voltage system diagnostics and battery pack analysis, enabling automatic HV system scanning, DTC reading/clearing, guided troubleshooting, and accurate battery health assessments.

Compared to the original Ultra, the Ultra S2 EV features a larger 13.7" anti-glare touchscreen, a 2.7GHz 8-core processor, and 512GB storage—doubling speed and capacity. The new VCMI 2 supports Remote Expert, while the upgraded Topology 3.0 and AI-powered image recognition enhance diagnostics precision and efficiency. With Wi-Fi 6, faster charging, and improved live graphing, Ultra S2 EV is the most advanced all-in-one tool for today's and tomorrow's vehicles—gas or electric.

Autel MaxiSys Ultra S2 EV Features

Hardware

• 13.7" anti-glare touchscreen with 2176×1600 resolution
• 2.7GHz 8-core processor, 12GB RAM + 512GB storage
• 18,000mAh battery with DC fast charging
• 16MP front/rear cameras
• Wi-Fi 6, Bluetooth 5.2, and 6-in-1 MaxiFlash VCMI2 interface

Software & EV Diagnostics

• Comprehensive EV high-voltage system analysis (HV scanning, DTC read/clear, live data)
• Battery pack analysis via OBD or direct connection with specialty cables
• State of Charge (SoC) and State of Health (SoH) assessment
• Guided troubleshooting with step-by-step disassembly instructions
• AI-powered image recognition for digital vehicle inspection (DVI)

Advanced Features

• Includes one year free warranty and two years free updates.
• Network Topology 3.0 with color-coded module status
• Enhanced oscilloscope with 4-channel live data analysis
• Multi-PID graphing for real-time parameter correlation
• Hands-free virtual assistant MAX for voice-controlled operations
• Cloud-based Data Manager for report storage and sharing

Data-Driven Diagnostics

• Enhanced PID analysis with multi-parameter graphing
• Live data fusion across multiple systems

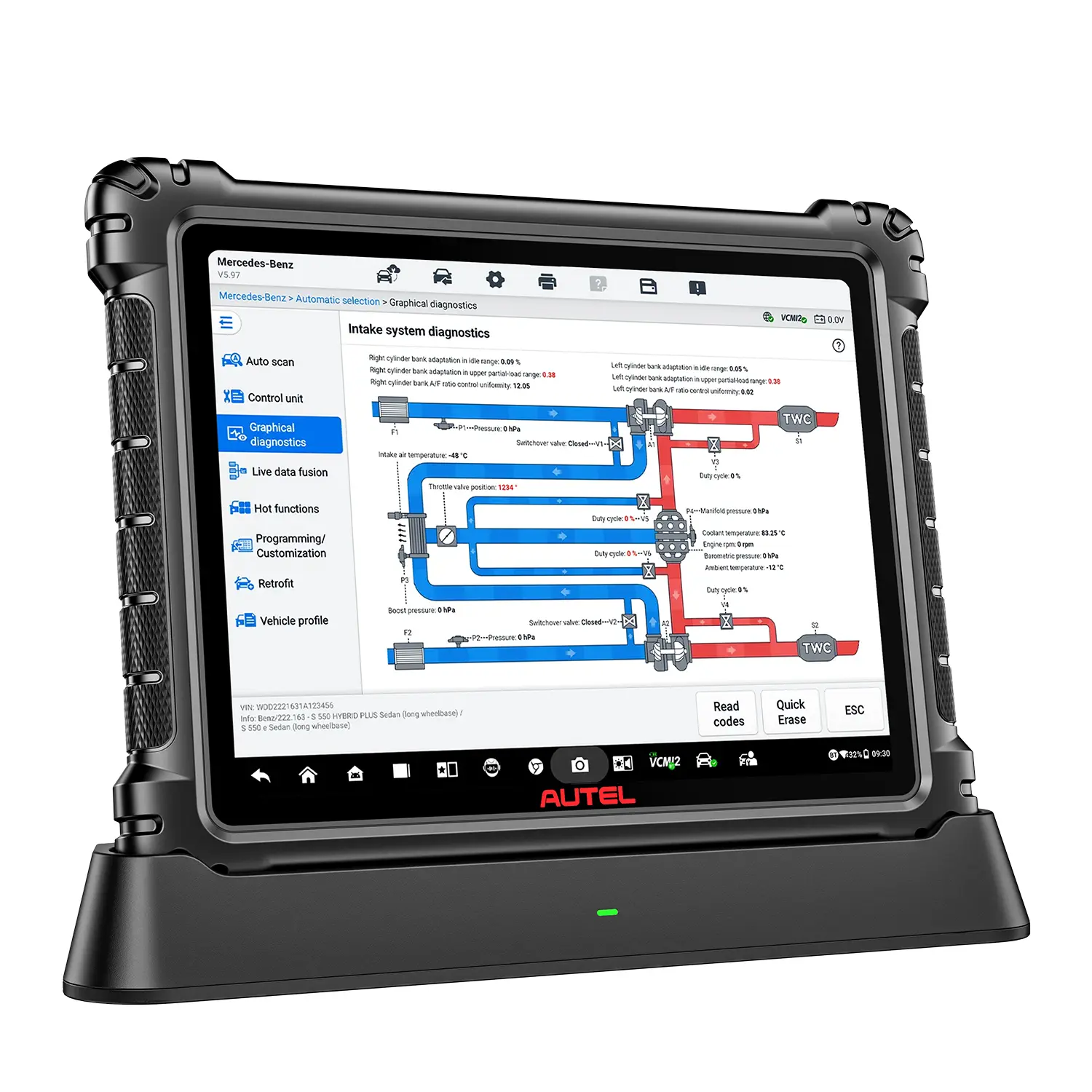

• Vehicle system process diagrams with live data overlays
• Split-screen diagnostics for simultaneous multi-application operation

Autel Ultra S2 Specifications

Item	Description	MaxiSys Ultra S2
Hardware	Processor	2.7G8-core
	Storage	12GB+512GB
	Screen	13.7" Anti-glare Screen (2176x1600)
	Android System	Android 13
	Battery	18000 mAh
	Camera	R:16M, F:16M
	Wi-Fi	Dual Wi-Fi 6
	DC Fast Charging	DC
	Bluetooth	Supported
	VCI	VCMI 2
	Oscilloscope	4 Channel
	Multimeter	Supported
	Charging Dock	Fast Charge
Diagnostic Function	Voice Assistance	Supported
	Topology	Supported
	Auto Scan	Based on ECU Network + module location
	Graphic Live Data Scream	Yes
Protocols	DolP	Supported
	CanFD	Supported
	J2534	Supported
	D-PDU	Supported

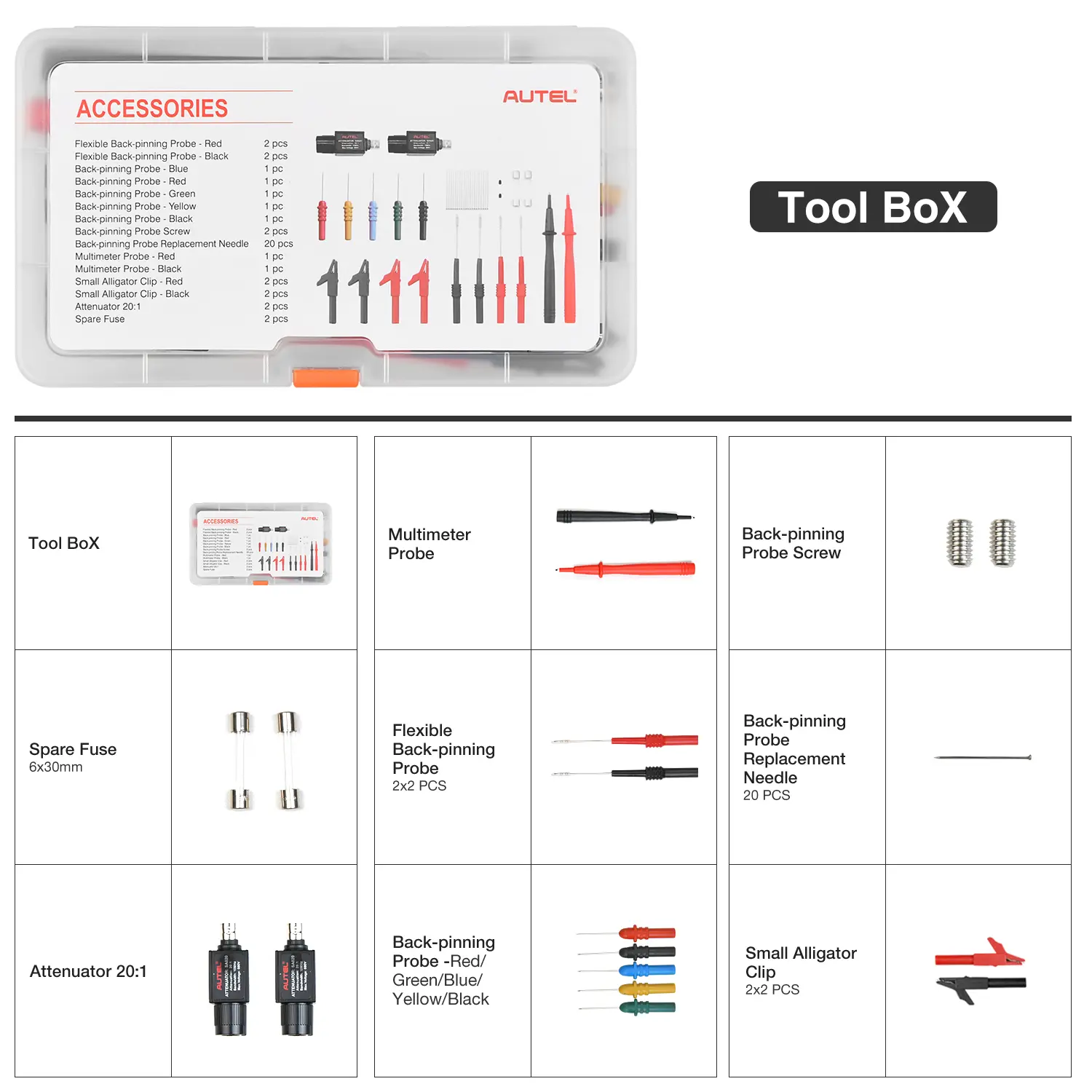

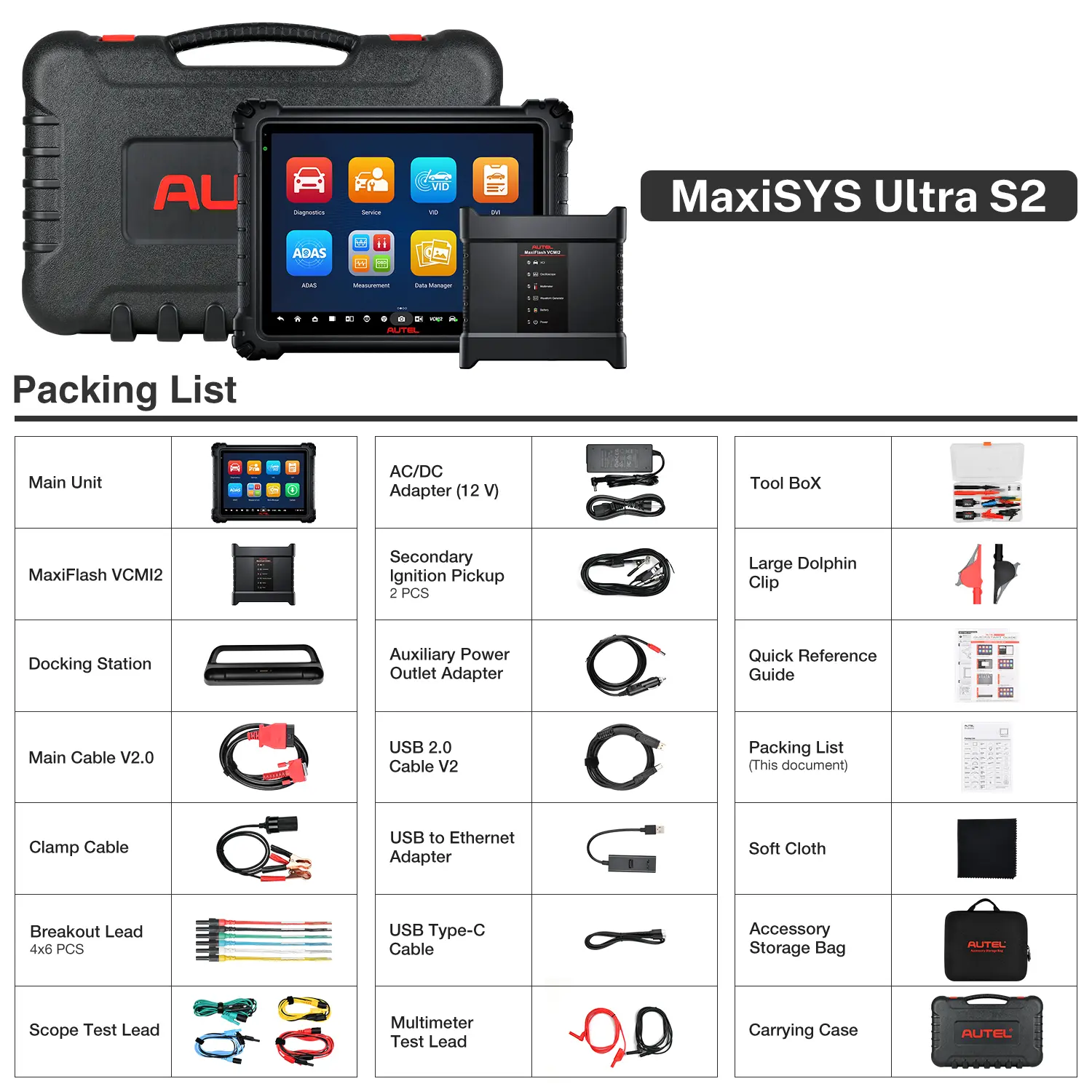

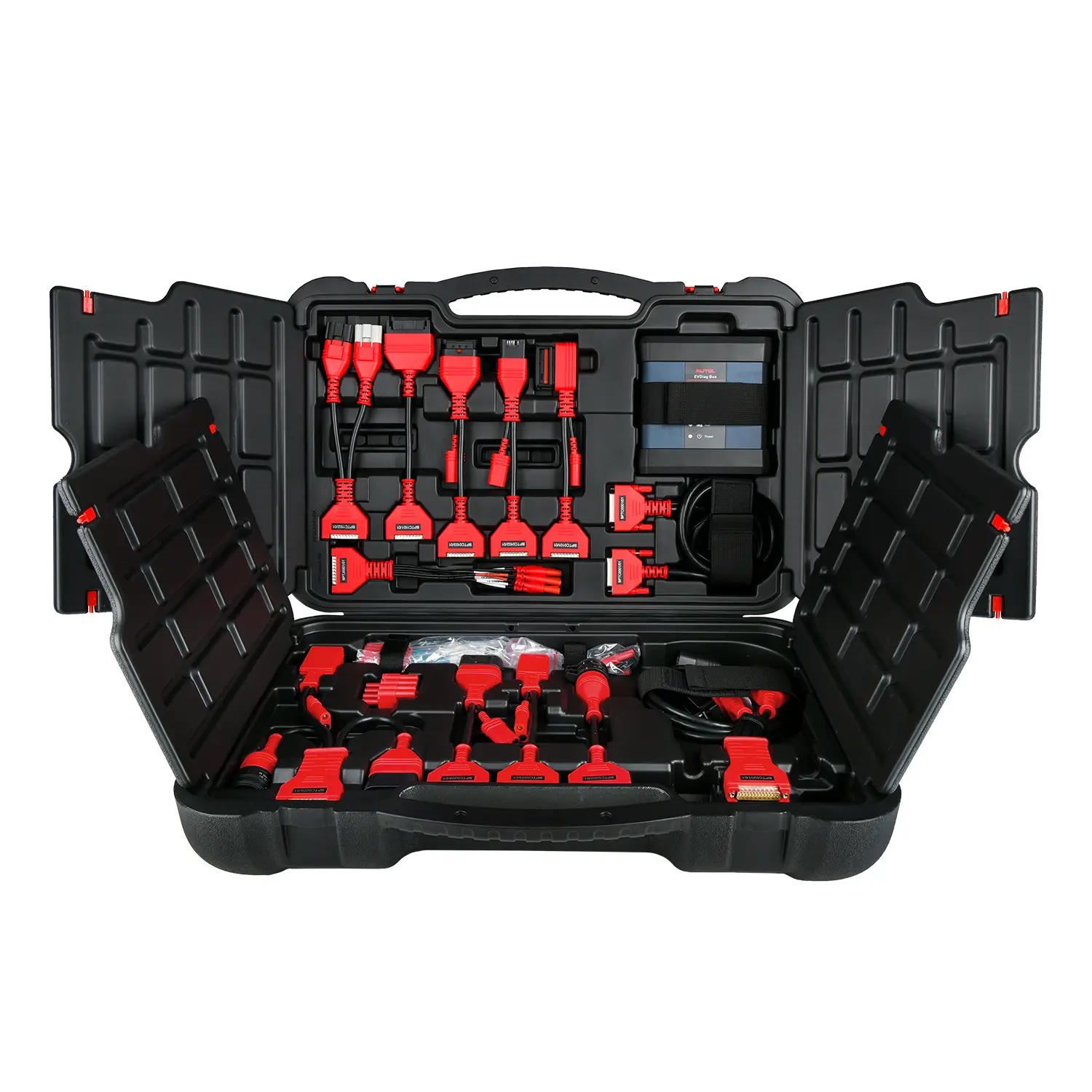

Ultra S2 Packing List

• 1 x Ultra S2 Main Unit
• 1 x MaxiFlash VCMI2
• 1 x Docking Station
• 1 x Main Cable V2.0
• 1 x USB 2.0 Cable V2
• 1 x AC/DC Adapter (12V)
• 1 x Auxiliary Power Outlet Adapter
• 1 x Spare Fuse 6*30mm 2 PCS
• 1 x Clamp CABLE
• 1 x Attenuator 20:1
• 1 x USB Type-C Cable
• 1 x Scope Test Lead 1x4PCS
• 1 x Multimeter Test Lead 1x2PCS
• 1 x Secondary Ignition Pickup 2PCS
• 1 x Breakout Lead 4x6PCS
• 1 x Multimeter Probe 1x2PCS
• 1 x Flexible Back-pinning Probe 2x2PCS
• 1 x Back-pinning Probe - Red/Green/Blue/Yellow/Black 1x5PCS
• 1 x Back-pinning Probe Screw 2PCS
• 1 x Back-pinning Probe Replacement Needle 20PCS
• 1 x Small Alligator Clip 2x2PCS
• 1 x Large Dolphin Clip 1x2PCS
• 1 x USB to Ethernet Adapter
• 1 x Soft Cloth
• 1 x Tool Box
• 1 x Accessory Storage Bag
• 1 x EVDiag Box
• 6 x Breakout Lead 1
• 6 x Breakout Lead 2
• 6 x Breakout Lead 3
• 6 x Breakout Lead 4
• 1 x Main Cable BPTC0001/01
• 3 x Breakout Lead Extension Cord
• 4 x Dual Banana Plug
• 1 x Adapter BPTC0101/01
• 1 x Adapter BPTC0102/01
• 1 x Adapter BPTC0103/01
• 1 x Adapter BPTC0201/01
• 1 x Adapter BPTC0202/01
• 1 x Adapter BPTC0203/01
• 1 x Adapter BPTC0204/01
• 1 x Adapter BPTC0205/01
• 1 x Adapter BPTC1101/01
• 1 x Adapter BPTC1102/01
• 1 x DB25 Snake Cable BPTJ0001/01
• 2 x Packing List
• 2 x Quick Reference Guide
• 2 x Carrying Case

• Ultra S2 User Manual (PDF)
• Ultra S2 Quick Guide (PDF)
• Ultra S2 One Year Software Update
