Autel MaxiSys MS909EV

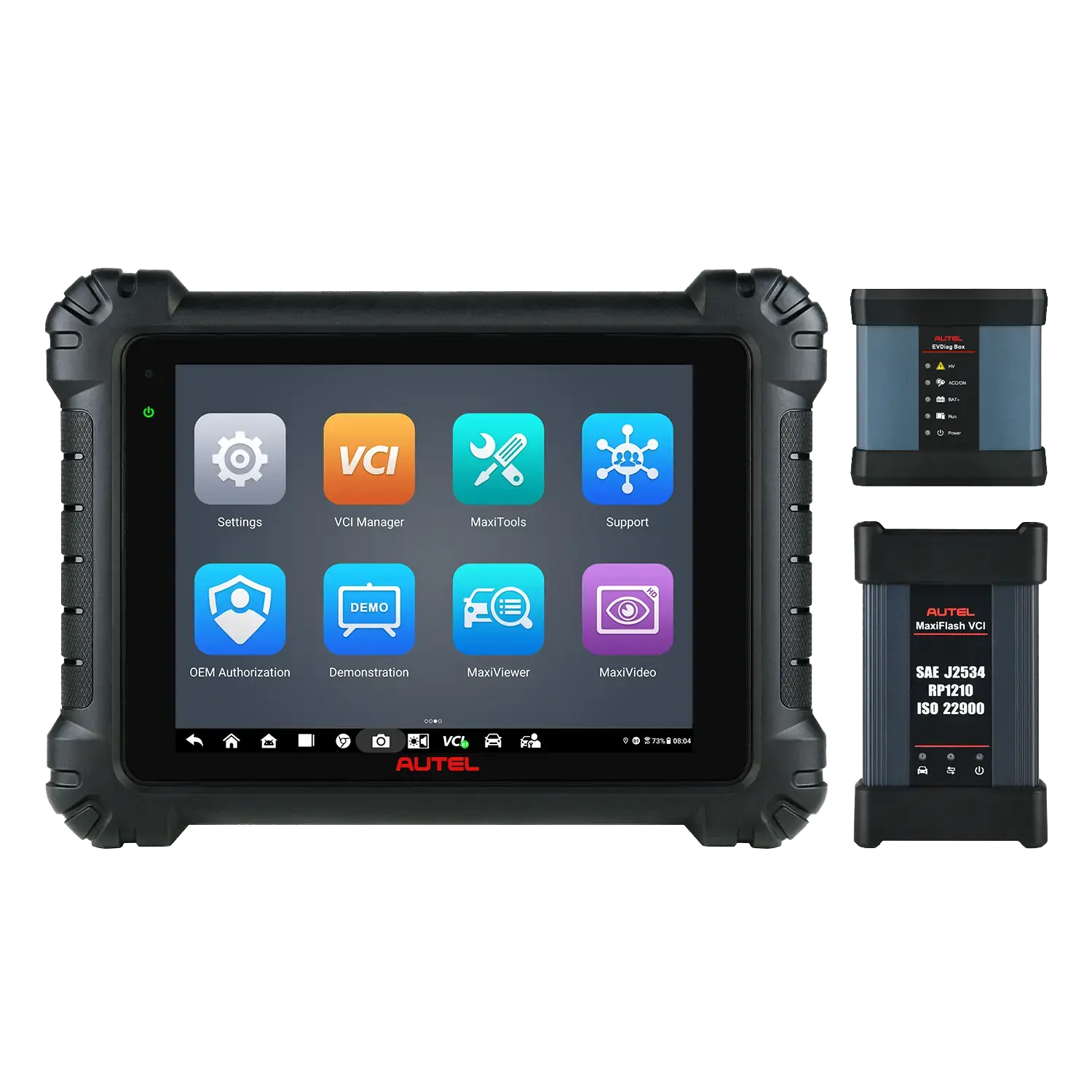

Autel MaxiSys MS909EV Advanced EV Diagnostics with MaxiFlash VCI/J2534

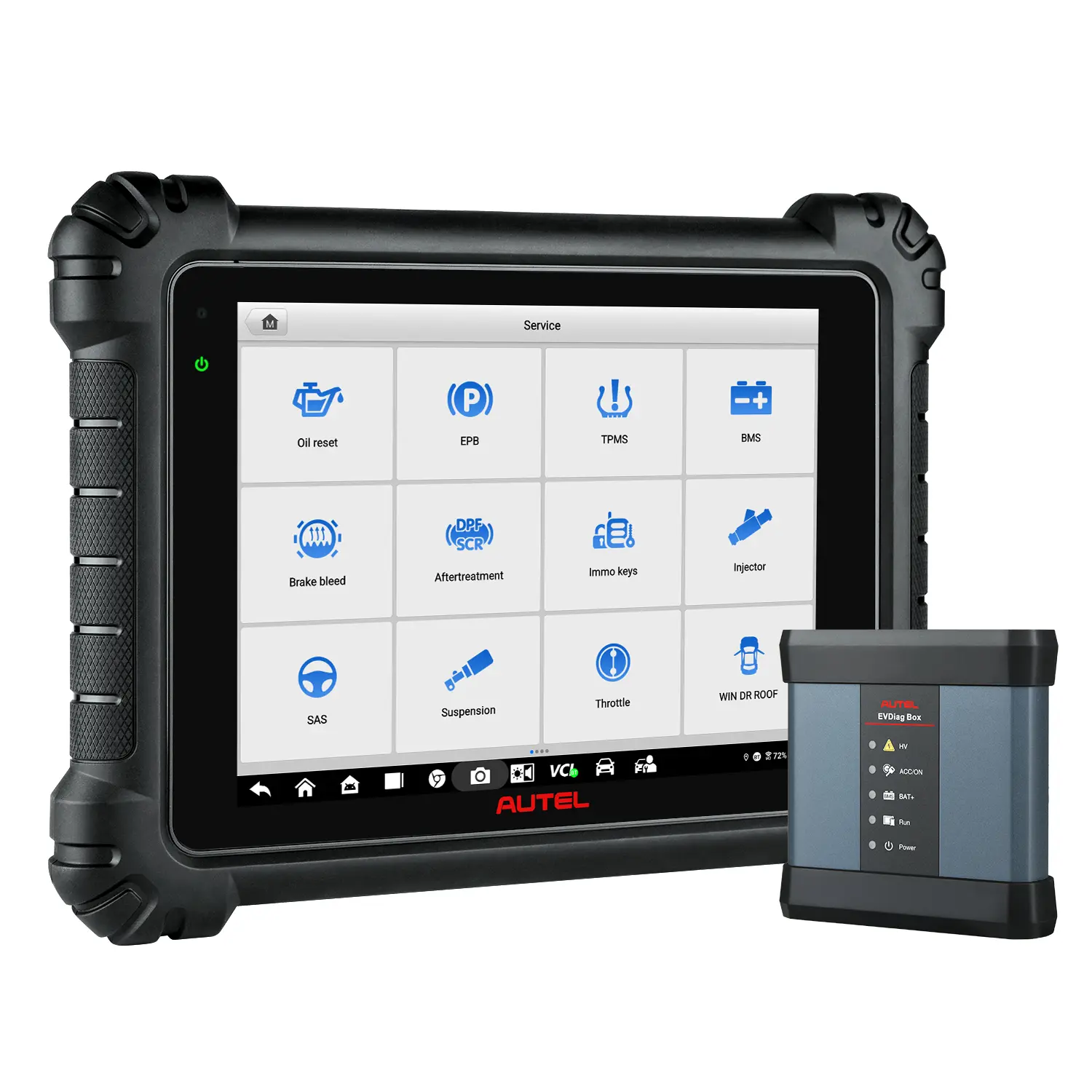

The MaxiSys MS909EV is a new generation of advanced diagnostics for electric, hybrid, gas, and diesel vehicles. With its dedicated EVDiag Box, MaxiFlash VCI, detailed graphics, system information, and step-by-step instructions, the MaxiSys 909EV provides a comprehensive approach to advanced electric and hybrid vehicle diagnostics.

Autel MaxiSys MS909EV Features

• 1-Year free software update & warranty
• Through Topology Module Mapping, you can see the structure of communication of each ECU module globally, color-coded topology shows full systems, locate faults more easier, and solve problems quickly
• With bi-directional control ability, to control various vehicle parts and components like fuel pumps, radiator fan, throttle, mirrors, interior & exterior lights, sound horn, wipers, headlamps, windows, and etc to test its functionality
• Advanced diagnostics for U.S., European, and Asian electric, gas, diesel, and hybrid vehicles
• Rapid analysis of EV high-voltage system including ability to read and erase codes and view live data
• Comprehensive diagrams of high-voltage system block, components and sockets; step-by-step system disassembly instructions
• State of Charge and State of Health analysis for true battery condition
• Battery pack analysis can be performed via OBD or directly with included specialty cables and jumpers; the 909EV screen displays detailed graphics and in-depth connection guidance to provide safe and secure testing
• Automatic system and software updates with real-time push message notifications via internet
• Interactive Data Logging sessions enable direct contact with Autel Support for first-hand troubleshooting of diagnostic bugs and errors
• One-stop multitasking designed for ideal management of shop operations to keep all data files, customer info, and vehicle records organized
• Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes

Specifications

Operating System	Android 7.0
Processor	Samsung Exynos8895V octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53)
Memory	4GB RAM & 128GB On-board Memory
Display	9.7 inch TFT-LCD with 1536 x 2048 resolution & capacitive touchscreen
Connectivity	• Wi-Fix2 (802.11 a/b/g/n/ac 2x2 MIMO) • BT v.2.1 + EDR • GPS • USB 2.0 (TWO USB HOST Type A, ONE USB mini device) • HDMI 2.0 • SD Card (Support up to 256GB)
Camera (rear)	Rear: 16 Megapixel, Autofocus with Flashlight Front: 5.0 Megapixel
Sensors	Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output	• Microphone • Single Speaker • 3-Band 3.5 mm stereo/standard headset jack
Power and Battery	15000mAh 3.8V lithium-polymer battery Charging via 12V AC/DC power supply with the temperature between 0°C and 45°C
Input Voltage	12V/3A Adapter
Operating Temp	0 to 50°C (32 to 122°F)
Storage Temp	-20 to 60°C (-4 to 140°F)
Dimensions	304.4 mm (11.98") x 227.8 mm (8.97") x 42.5 mm (1.67")
Weight	1.66kg (3.66lb.)
Protocols	DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can(GMLAN), ISO-11897-2, ISO-11897-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)

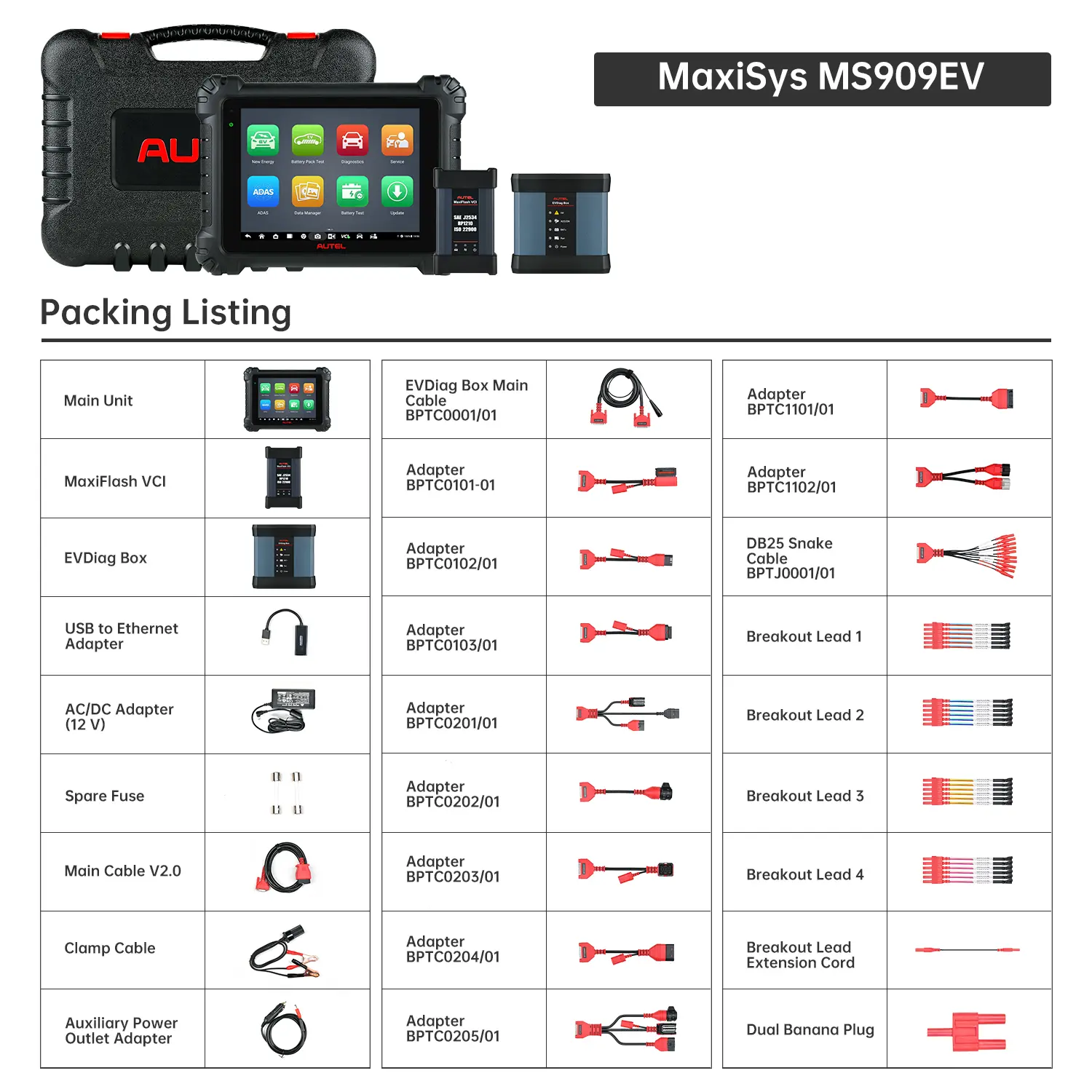

Packing List

• 1x MS909 Main Unit
• 1x EV Diagnostic Upgrade Kit
• 1x MaxiFlash VCI
• 1x Main Cable V2.0
• 1x USB 2.0 Cable V2
• 1x AC/DC Adapter(12V)
• 1x Cigarette Lighter
• 2x Light Fuse 6x30mm
• 1x Clipper Cable
• 1x Quick Reference Guide
• 1x Packing List
• 1x Soft Cloth
• 1x Carrying Case 504 x 133 x 360 mm

Product Guides & Downloads

• Autel MS909EV User Manual (PDF)
