Autel MaxiDiag MD909 PRO (US Shipping Only)
Autel MaxiDiag MD909 PRO All-System Diagnostic Scanner Tool
The Autel MaxiDiag MD909 PRO is a professional all-system diagnostic scanner tailored for vehicle maintenance, featuring 11 key service functions: Oil Reset, Brake Bleeding, Injector Coding, SAS (Steering Angle Sensor) Calibration, Throttle Adaptation, EPB (Electronic Parking Brake), BMS (Battery Management System), TPMS (Tire Pressure Monitoring System), DPF (Diesel Particulate Filter) Regeneration, AFS (Adaptive Front-lighting System) Headlamp Adjustment, and Air-Fuel Ratio (A/F) Adjustment. It supports comprehensive OBDII diagnostics, the latest CAN FD protocol, and extensive vehicle coverage for U.S., Asian, and European makes (up to the current year), while offering expandable functions like battery testing (with optional MaxiBAS BT506). Equipped with a user-friendly Android platform and durable hardware, it’s ideal for both professional technicians and DIY automotive maintenance.
Autel MaxiDiag MD909 PRO Features
- 1-Year free warranty & Lifetime free updates.
- Comprehensive OBDII Diagnostics: Supports OBDII protocols & all 10 OBDII test modes, performs I/M Readiness/Emissions testing, Enhanced Mode 6 diagnostics, all-system AutoScan for DTC detection, reads & clears codes, and views live data & freeze frame data
- Advanced Protocol Compatibility: Works with the latest CAN FD communication protocol for faster data transmission and broader compatibility with modern automotive systems; also supports access to automakers’ security gateways (e.g., FCA, SFD) – separate purchase required
- 11 Key Service Functions: Covers Oil Reset, Brake Bleeding, Injector Coding, SAS Calibration, Throttle Adaptation, EPB, BMS, TPMS, DPF Regeneration, AFS Headlamp Adjustment, and Air-Fuel Ratio (A/F) Adjustment
- Superior Hardware & User Experience: 5.5-inch screen, 64GB storage, and Android-based platform deliver a user-friendly interface; 5,000mAh battery ensures long runtime; Bluetooth-enabled VCI for convenient handheld operation
- Extensive Vehicle Coverage: Supports U.S., Asian, and European vehicle makes (up to the current year), with access to all modules in all electronic systems
- Expandable Functions & Cost-Effectiveness: Expandable battery test functions (requires optional Autel MaxiBAS BT506 purchase); free lifetime OTA software updates; designed as an advanced, cost-effective handheld solution for DIY and professional maintenance
Specification
| Item | Description | MD909 PRO |
| Hardware | VCI | V150 Lite |
| System | Android 9 | |
| Battery | 5000mAh | |
| Storage | 64G | |
| Screen | 5.5-inch | |
| Function | Vehicle Coverage | Current year vehicle of Asia, Europe, America, China |
| System Coverage | All | |
| Read/ Erase Code | ● | |
| Live Data | ● | |
| Security Gateway | FCA, SFD, etc. | |
| Service | OIL RESET | ● |
| BREAK BLEEDING | ● | |
| INJECTOR | ● | |
| SAS | ● | |
| THROTTLE | ● | |
| EPB | ● | |
| BMS | ● | |
| TPMS | ● | |
| DPF | ● | |
| AFS Headlamp | ● | |
| A/F | ● | |
| Extension | Battery Test(purchase BT506) | ● |
| Communication Protocol | CAN FD | ● |
| Software | FREE Lifetime Software | lifetime of tool |

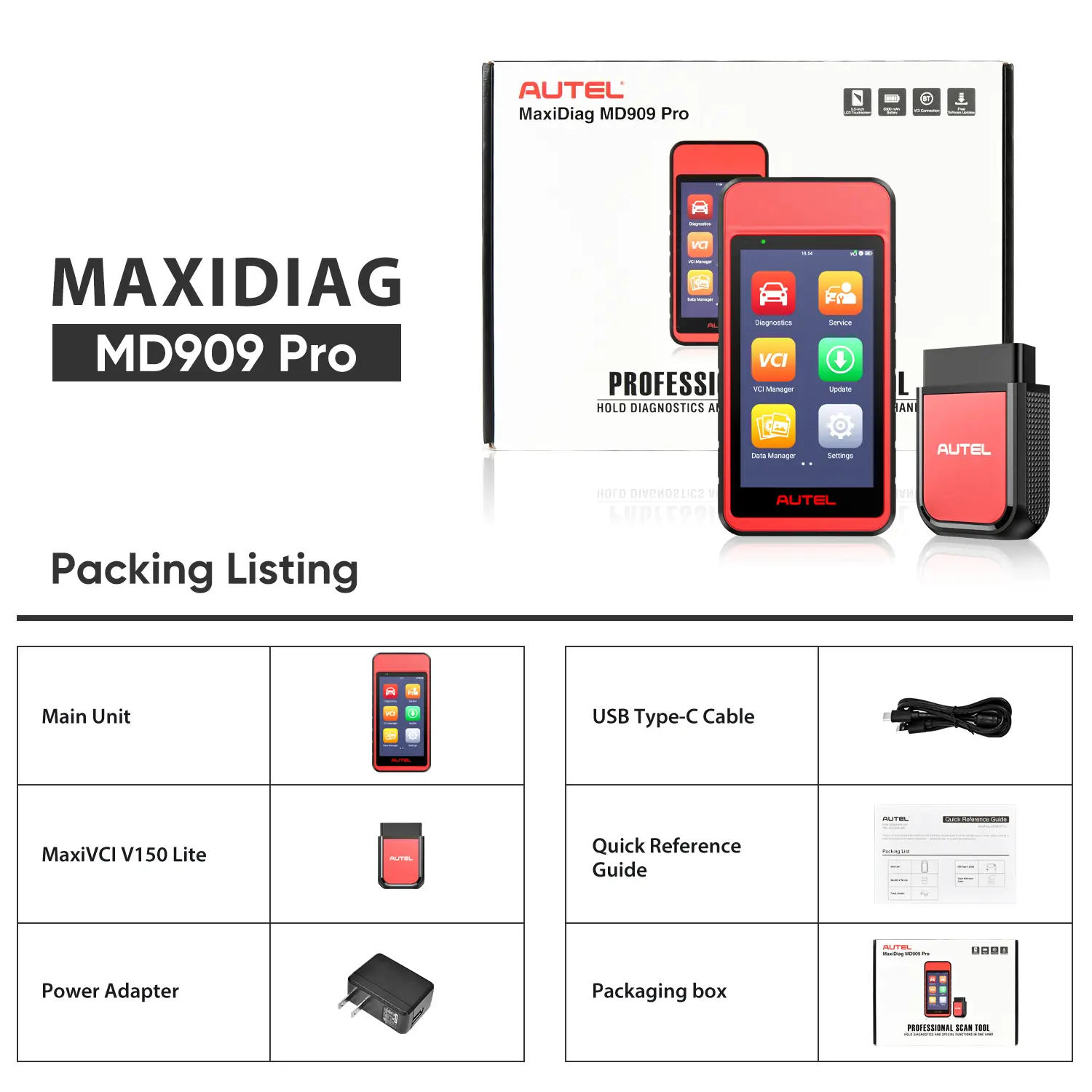

Autel MD909 PRO Packing List
- 1x Autel MD909 PRO Main Unit

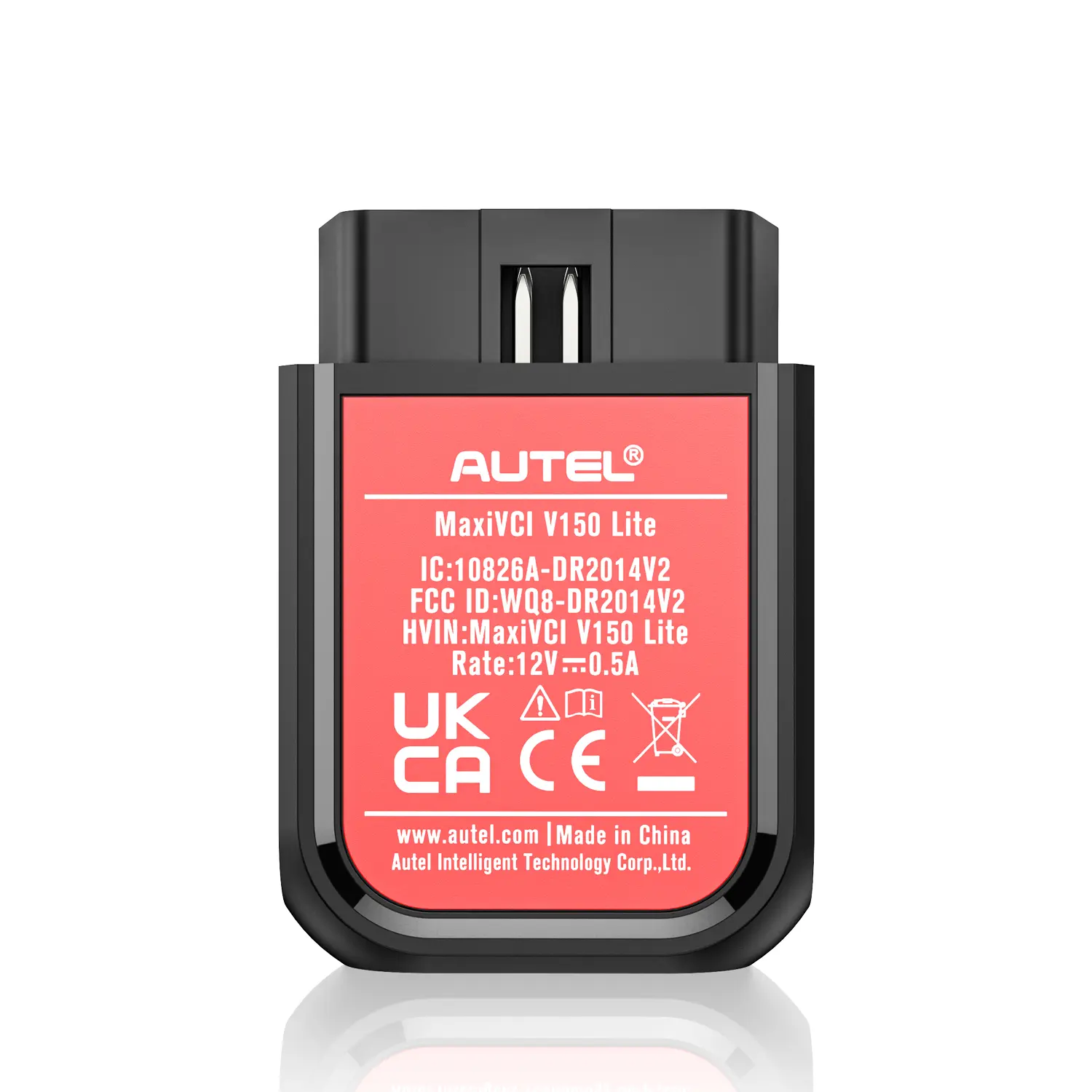

- 1x MaxiVCI V150 Lite (Bluetooth)
- 1x Power Adapter
- 1x USB Type-C Cable
- 1x Quick Reference Guide
- 1x Packaging Box
Product Guides & Downloads
- Autel MD909 PRO User Manual (PDF)
