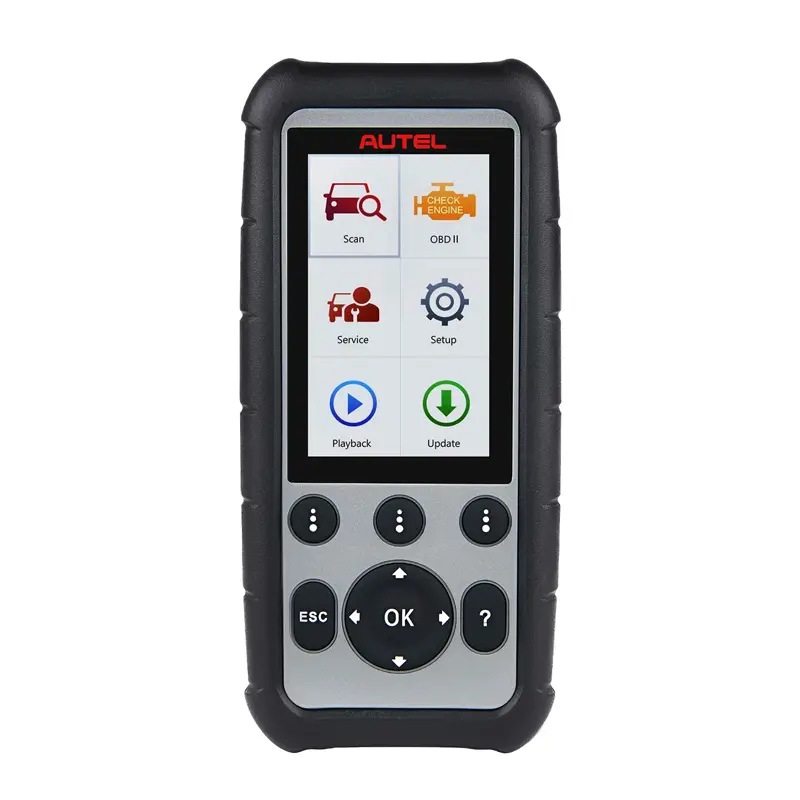

Autel MaxiDiag MD806 PRO

Autel MaxiDiag MD806 PRO Vehicle Diagnostic Scanner

The MaxiDIAG MD806 Pro is built to take your diagnostic experience to a whole new level. Loaded with oil service reset, battery registration and reset, parking brake pad relearn after replacement, steering angle sensor relearn and diesel particulate filter regeneration functions, MD806 Pro can access ALL available modules for the best diagnosis operations.

Autel MaxiDiag MD806 PRO Features

• Supports Read/Clear Codes and Live Data functions for ALL systems
• Reads and clears trouble codes, controls, and tests BMS/Oil Reset/SRS/EPB/DPF systems
• Performs O2 monitor, onboard monitor, I/M readiness, and component testing
• Global OBD II coverage for the U.S., Asian, and European makes and models
• All OBD II protocols, all 10 test modes, and enhanced OBD II mode 6 support
• Prints diagnostic reports via PC. Free lifetime software updates.

Specifications

Processor	ARM® Thumb® Processor running at up to 400 MHz
Memory	32MB, 166 MHz
Display	4.0 inch LCD with 800x480 resolution
Connectivity	Mini USB: 2.0 Micro SD Card (16GB)
Power Consumption	1.7 W
Operating Temperature	-10°C to 60°C (14°F to 140°F)
Storage Temperature	-20°C to 70°C (-4°F to 158°F)
Operating Humidity	5% - 95% non-condensing
Housing	Strong plastic housing with protective rubber boot
Dimensions	202 mm x 92 mm x 35 mm (8.35” x 3.62” x 1.4”)
Weight	313 g (0.69 lb.)

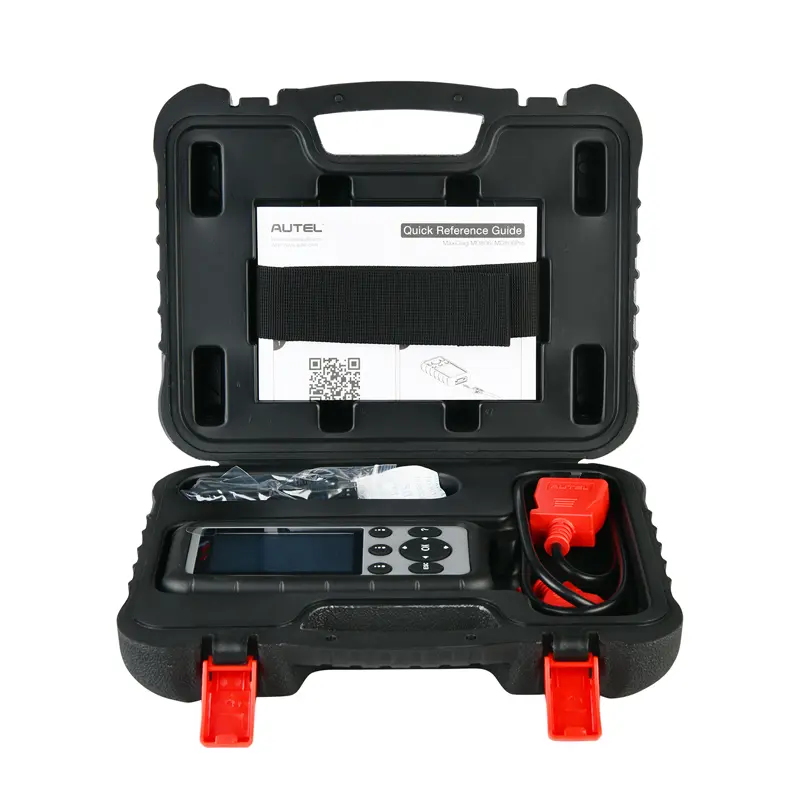

Packing List

• 1x MD806 Pro Main Unit
• 1x User Manual
• 1x OBD II Cable
• 1x USB Cable
• 1x Micro SD Card
• 1x Quick Guide
• 1x Carry Case
