Autel MaxiCOM MK906 PRO-TS / MK906S PRO2-TS
Autel MaxiCOM MK906S PRO-TS
The MaxiCOM MK906S PRO-TS is an advanced smart wireless diagnostics device providing specialized automotive diagnostic services for customers. Featuring a powerful octa-core processor, an 8.0-inch TFT-LED capacitive touchscreen, and long-distance wireless communication, it is based on a multitasking mobile operating system and combined with the best possible coverage of OE-level diagnostics. The MK906S PRO-TS performs comprehensive and efficient vehicle diagnostics and analysis. With an integrated TPMS module, it also provides comprehensive TPMS solutions.
Autel MaxiCOM MK906S PRO-TS Features
Hardware
- 8-inch, 1920 x 1200 high-resolution touchscreen tablet with a Qualcomm 660 Octa-core processor, 128 GB storage, and runs on the Android 10 operating system
- Long-lasting 11,600 mAh rechargeable battery, 16 MP front camera, and 16 MP rear camera
- MaxiVCI V200 wireless Bluetooth vehicle communication interface supporting the latest communication protocols
Software
- 1-Year Free Software Updates & Warranty
- Comprehensive diagnostics on 1996 and newer U.S., Asian, and European vehicles
- AutoScan: Scans all available systems
- Reads/Erases Codes, Views Freeze Frame and Live Data
- Integrated TPMS antenna module for performing comprehensive TPMS service
- Performs Active Tests (bi-directional controls), Coding, and Adaptations
- AutoVIN/Scan VIN for rapid vehicle identification
- Comprehensive TPMS service including the ability to activate and relearn all known sensors, and program the Autel MX-Sensor to replace 99% of TPMS sensors on the road today
New Software Features
- Battery analysis capability (With additional purchase of the MaxiBAS BT506 battery and electrical system tester)
- Cloud-based Reports and Data Management
Specifications
| Operating System: | Android 10.0 |
| Processor: | Qualcomm 660 Octa-core Processor (2.2GHz Quad-core A73 + 1.8GHz Quad-core A53) |
| Memory: | 4/128GB |
| Display: | 8.0" LED capacitive touch screen with 1920x1200 resolution |
| Connectivity: | • Wi-Fi (802.11 b/g/n)USB: 2.0, Mini USB 2.0 Wireless BT V2.1+EDR Class1, HDMI 1.4a SD Card (support up to 32 GB) |
| Camera (rear): |
Front: 16 Megapixel Rear: 16 Megapixel |
| Sensors; | Gravity Accelerometer, Ambient Light Sensor (ALS) |
| Audio Input/Output: | • Microphone • Single Speaker • 3-Band 3.5 mm stereo/standard headset jack |
| Power and Battery: | 11 600 mAh 3.7 V lithium-polymer battery Charging via 12 V AC/DC power supply |
| Input Voltage: | 12 V (9-35 V) |
| Power Consumption: | 5 W |
| Operating Temp.: | -10 to 55°C (14 to 131°F) |
| Storage Temp.: | -20 to 70°C (-4 to 158°F) |
| Dimensions (W x H x D): | 270.8 mm (10.0”) x 176.0 mm (6.9”) x 36.0 mm (1.4”) |
| Weight | NW: 1.05 kg (2.3lb.) |

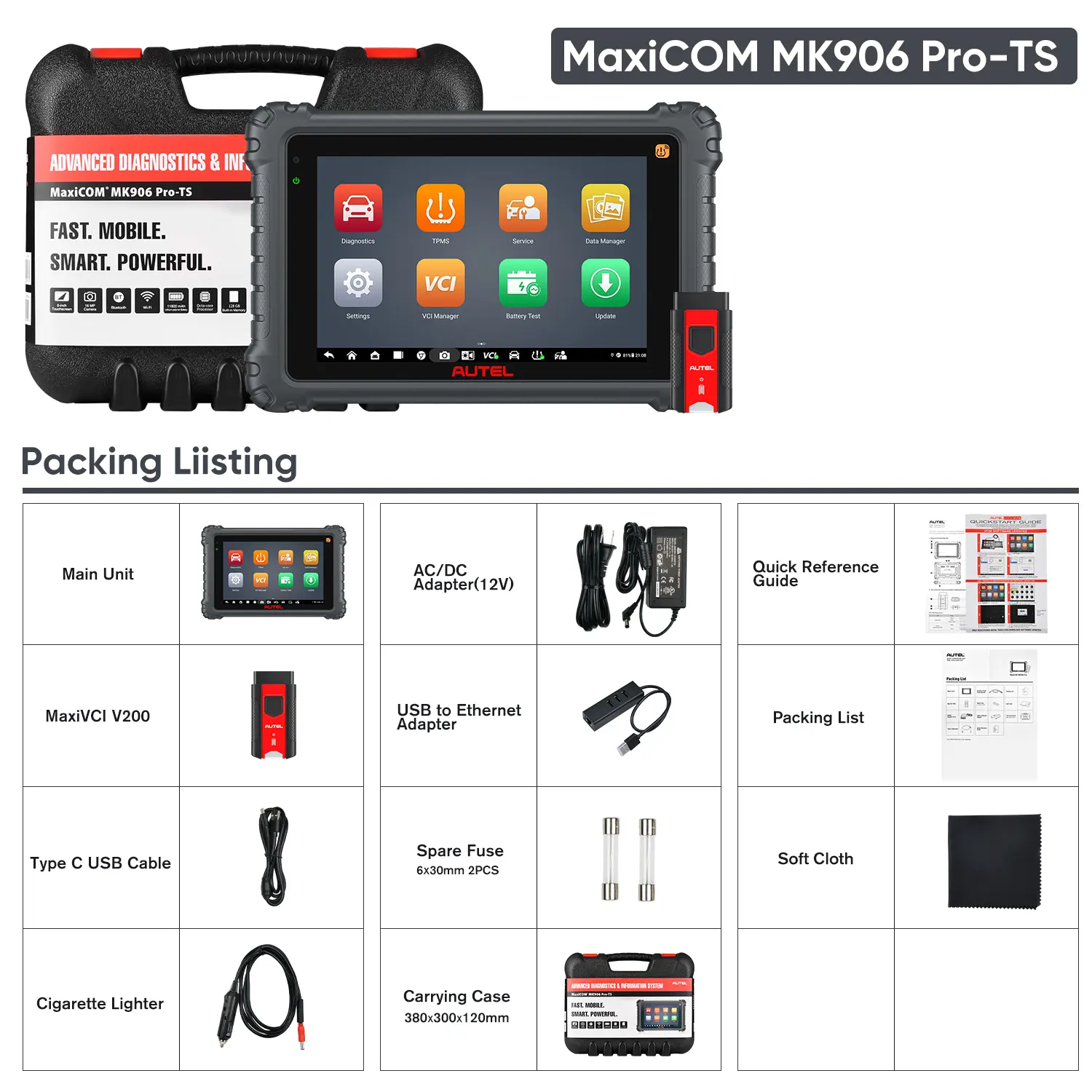

Packing List
- 1x MaxiCOM MK906S Pro-TS main unit
- 1x MaxiVCI V200
- 1x AC/DC Adapter (12V)
- 1x Type C USB Cable
- 1x Cigarette Lighter Adapter
- 2x Spare Fuse(6*30mm)
- 1x USB to Ethernet Adapter
- 1x Soft Cloth
- 1x Packing List
- 1x Carrying Case
- 1x Quick Reference Guide
Product Guides & Downloads
- Autel MK906S PRO-TS User Manual (PDF)
