Autel MaxiCOM MK808Z / MK808S
Autel MaxiCOM MK808Z/MK808S with Bi-Directional Control
When it comes to ultra-portability, MaxiCOM MK808S/MK808Z is your perfect companion. Installed with a fast quad-core processor, MK808S/MK808Z offers maximum convenience and swift diagnosis. The intuitive user screen makes using the device effortless through a 7-inch LCD touchscreen that displays at 1024 x 600 quality. Together with the ability to quickly read and clear DTCs for all available modules of the majority of the makes and models on the market, MK808S provides you with superior special functions, including Oil Reset, EPB (Electronic Parking Brake), SAS (Steering Angle Sensor), BMS (Battery Management System), DPF (Diesel Particulate Filter), and TPMS (Tire Pressure Monitoring System).
Autel MaxiCOM MK808Z/MK808S Features
- 1-Year Free Software Updates & Warranty
- Read/erase codes on all available systems
- View and graph Live Data
- AutoVIN technology automatically identifies vehicle make, model, and year
- Perform bi-directional Active Tests
- Powerful Cortex-A55 processor (1.8 GHz) processor
- 7-inch LCD capacitive touchscreen with 1024 x 600 resolution display
- 64GB on-board memory for better performance
- Android 11 operating system for fast boot-up and multitasking
- Reset Steering Angle Sensor (SAS)
- Reset service mileage and service intervals
- Reset Electronic Parking Brake
- Perform DPF regeneration
- Reset Injectors
- Support battery registration and reset
- Compatible with Videoscope
- AutoAuth unlocked with the latest software update can securely serve modern FCA vehicles for OBDII diagnostics, active test, and more
Specifications
| Operating System: | Android 11 |
| Processor: | Rockchip RK3566 |
| Memory: | 4GB & 64 GB |
| Display: | 7-inch LCD capacitive touchscreen with 1024x600 resolution |
| Connectivity: | Mini USB 2.0; USB2.0; Wi-Fi 2.4 & 5 GHz; HDMI Type A; Micro SD card slot(supports up to 32GB) |
| Sensors: | Light sensor for brightness auto adjust |
| Audio input/output: | Input: N/A,Output: Beep |
| Power and Battery: | 3.7 V/5000 mAh lithium-polymer battery Charges via 5 VDC power supply |
| Tested Battery Life: | Around 7 hours of continuous use |
| Battery Charging Input: | 5V/1.5A |
| Power Consumption: | 600 mA(LCD on with default brightness,Wi-Fi on)@3.7 V |
| Operating Temp.: | -10Ā°C to 60Ā°C (14Ā°F to 140Ā°F) |
| Storage Temp.: | -20Ā°C to 70Ā°C (-4Ā°F to 158Ā°F) |
| Operating Humidity: | 5%-95% non-condensing |
| Dimensions | 270.8mm(10.0)X176.0mm(6.9)x36.0mm(1.4) |
| Net Weight: | 885g(2.31|b.) |
| Protocols: | ISO9141-2,ISO14230-2,ISO15765,K/L-Line,Flashing Code,SAE-J1850 VPW,SAE-J1850PWM,ISo11898(Highspeed,Middlespeed,Lowspeed and Singlewire CAN,fault-tolerant CAN),SAE J2610,GM UART UART Echo Byte Protocol,Honda Diag-H Protocol,TP2.0,TP1.6 |

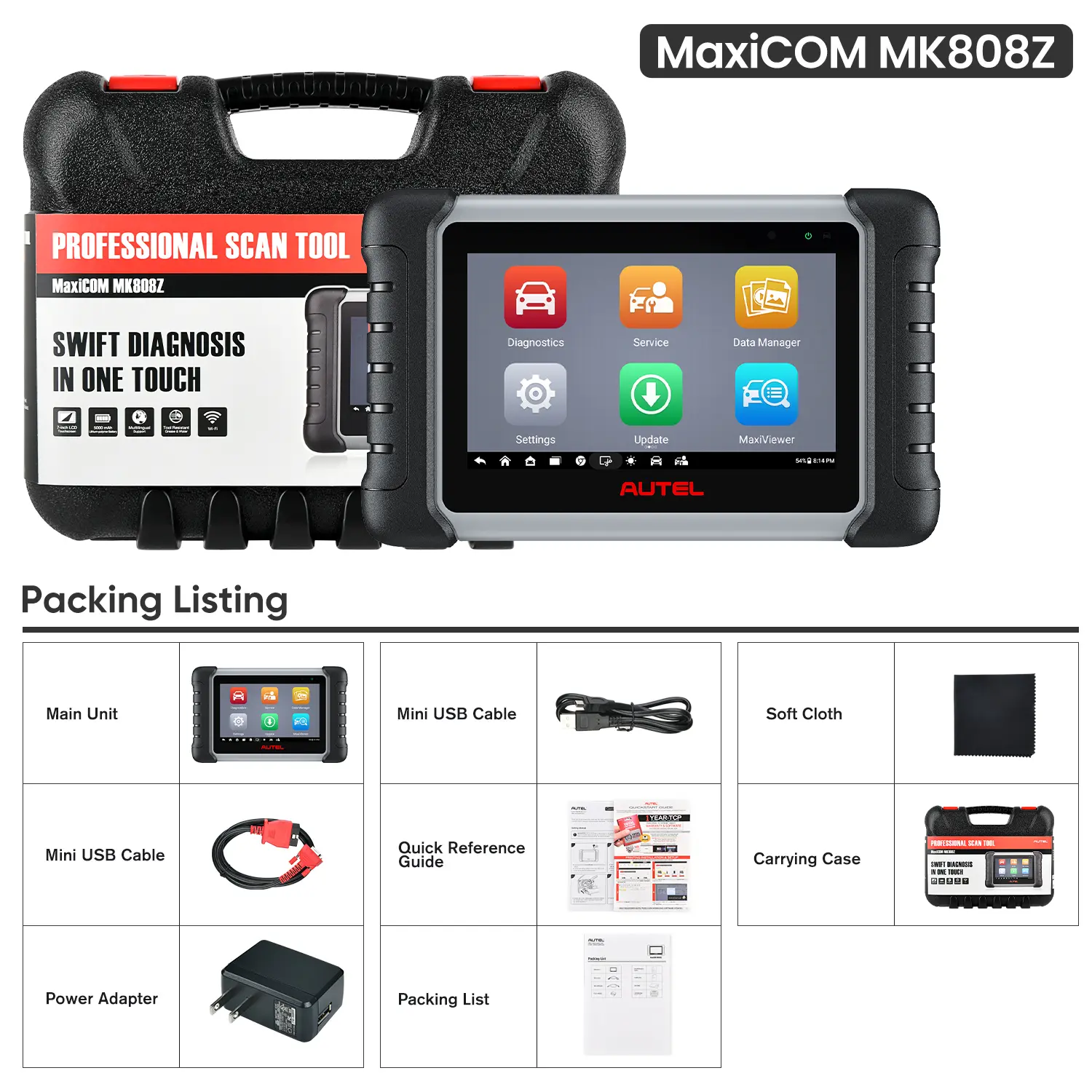

Packing List
- 1 x MK808Z Main Unit
- 1 x USB External Power Adapter
- 1 x USB Cable(for testing)
- 1 x USB Cable(for charging)
- 1 x Quick Reference Guide
- 1 x User Manual
- 1 x Carrying Case
Product Guides & Downloads
- Autel MK808Z User Manual (PDF)
- MK808Z One Year Software Update
Original: $389.00
-65%$389.00
$136.15More Images
