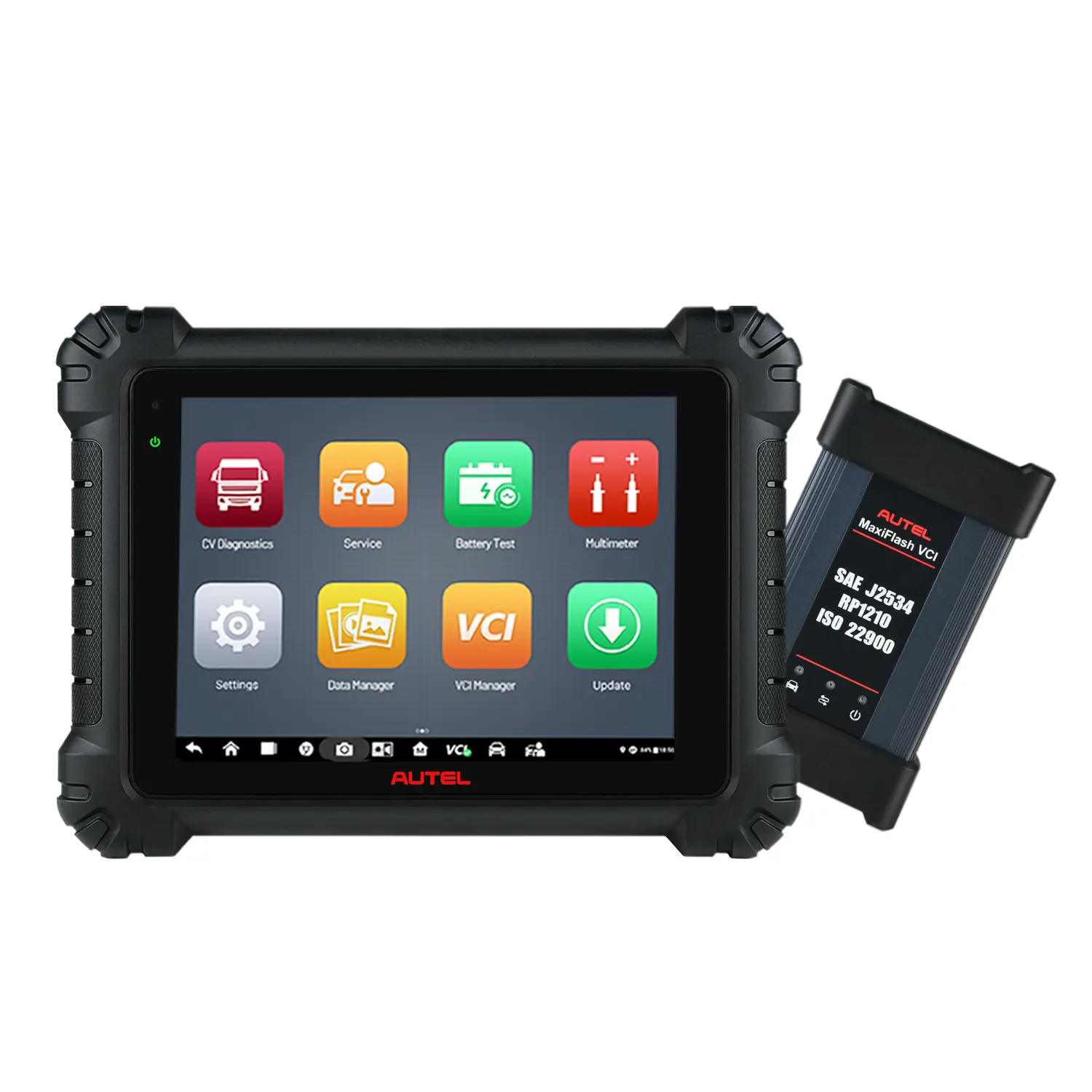

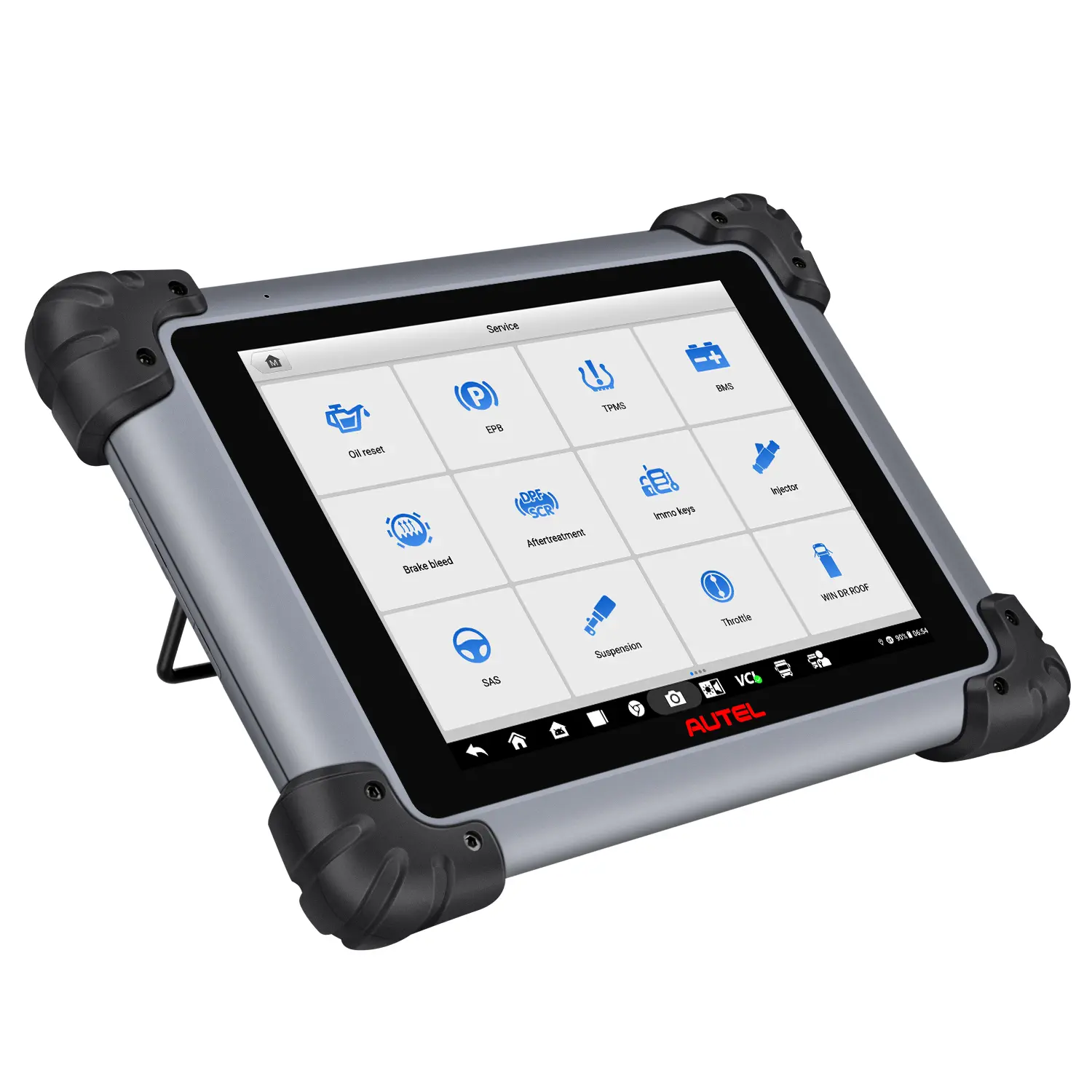

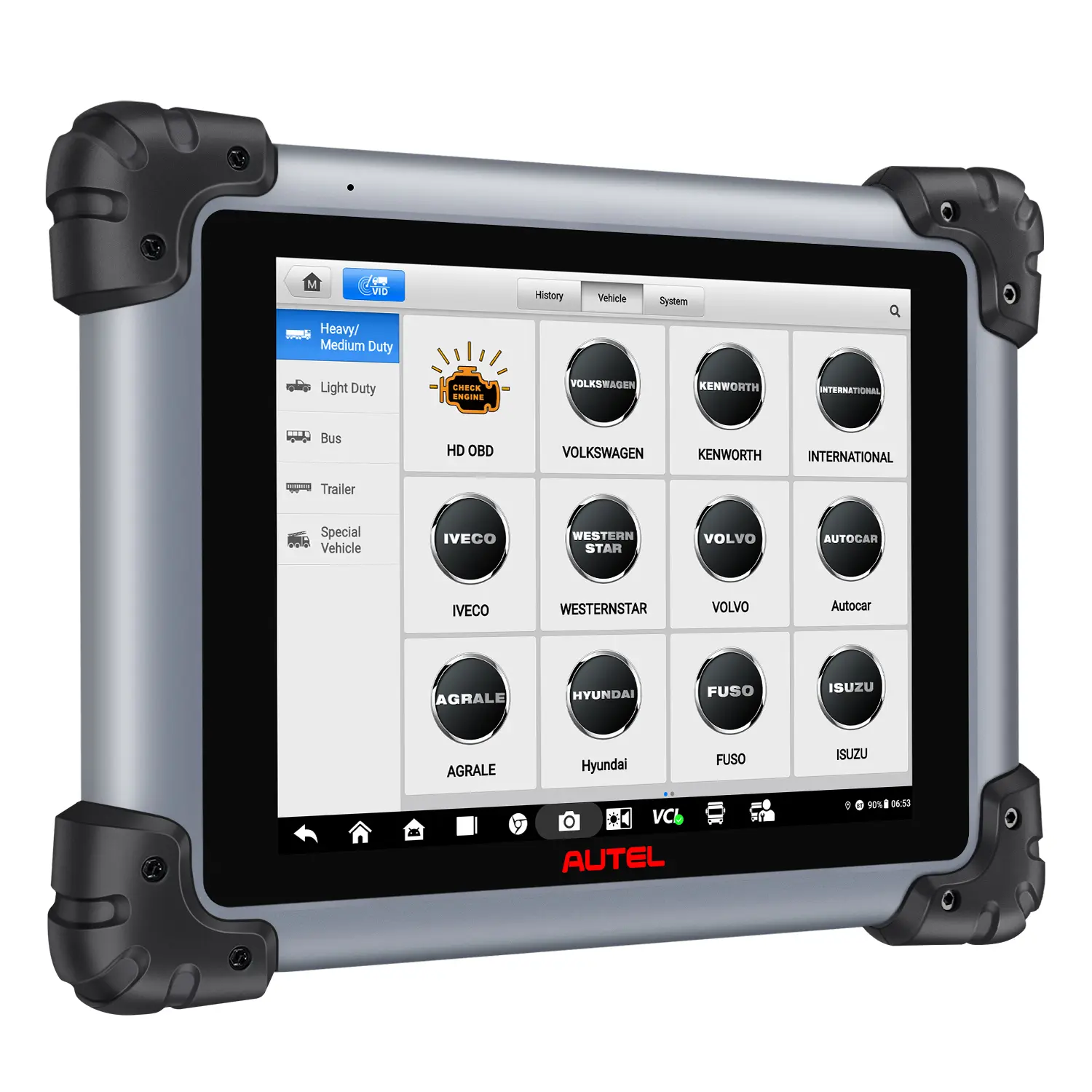

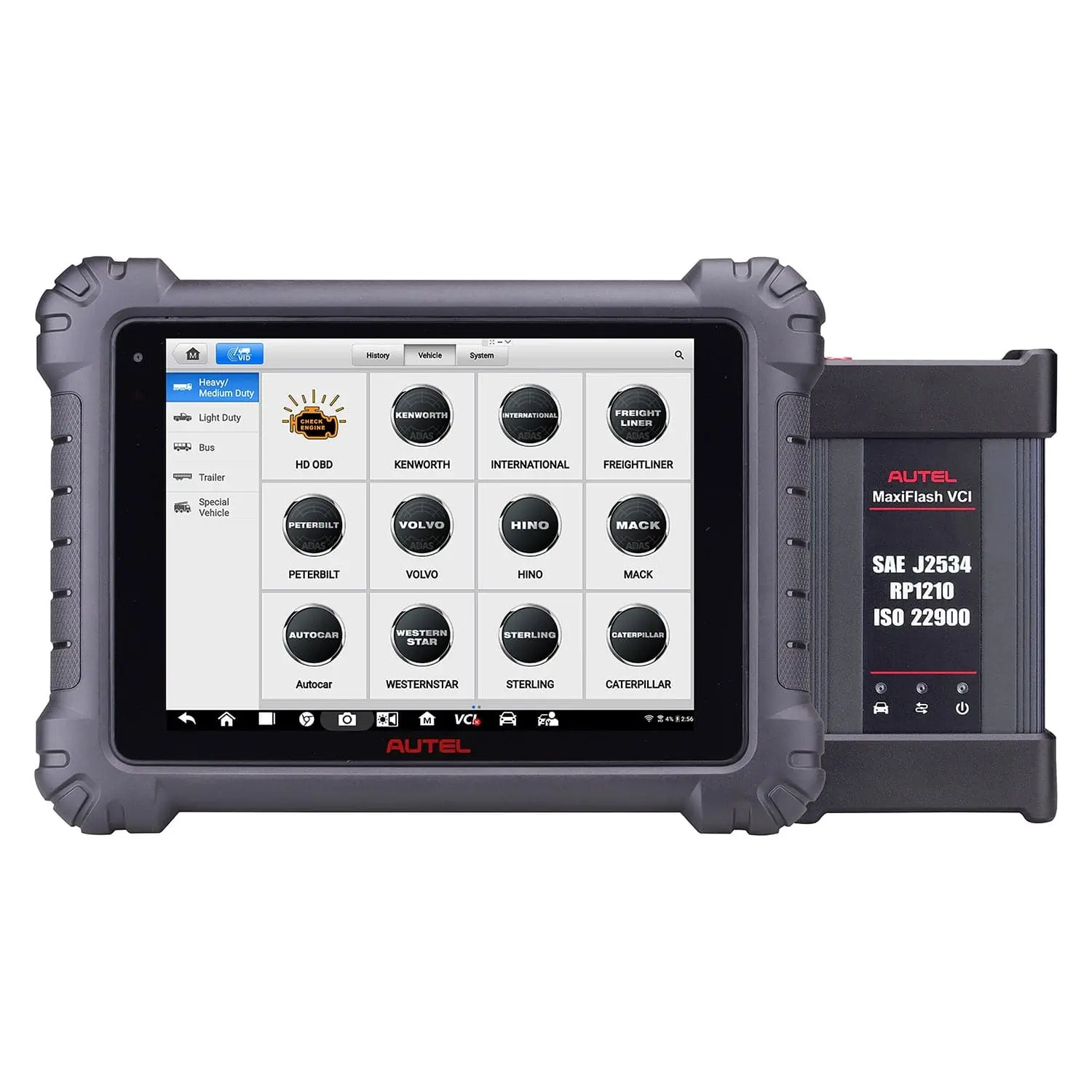

Autel MaxiSys MS908CV II
Autel MaxiSys MS908CV II Commercial Vehicle Diagnostics & Service Tablet
The MaxiSys MS908CV II is an evolutionary smart solution for specialized automotive diagnosis. Utilizing the powerful octa-core processor (2.2 GHz quad-core A73 + 1.8 GHz quad-core A53) and a 9.7-inch LED capacitive touch screen, combined with the best possible coverage of OE-level diagnostics, and based on the revolutionary multitask-capable Android operating system, the MaxiSys tablet organizes information with test instrumentation to help you diagnose symptoms, codes, and customer complaints easily, quickly, and efficiently.
Autel MaxiSys MS908CV II Features
- 1-Year Free Software Updates & Warranty
- 9.7" Wireless Touchscreen Heavy Duty Vehicle Diagnostics and Service Tablet
- Performs advanced diagnostics on Class1-Class9 Heavy Duty Vehicles
- Read and Erase Codes, View Live Data, Perform Bi-Directional Active Tests
- Expert Mode for Direct Access to OE-Specific System Components, Including Engine, Transmission, and Braking Systems
- Extensive Service and Maintenance Functions Menu Including Forced DPF Regen, EPB, and OLs
- Perform Injector Cutout Tests, Injector Coding
- Equipped with MaxiFlash Wireless Bluetooth VCI/J2534
- AutoScan of All Available Modules
- Supports Newest Communication Protocols on Light Duty Vehicles with Purchase of MaxiVCI200
Specifications
| Operating System | Android 10 |
| Processor | Octa-core processor (2.2 GHz quad-core A73 + 1.8 GHz quad-core A53) |
| Memory | 4 GB RAM & 128 GB on-board memory |
| Display | 9.7 inch LED capacitive touchscreen with 2048 x 1536 resolution |
| Connectivity | · WiFi (802.11 a/b/g/n/ac) |
| · USB: 2.0 | |
| · Bluetooth v5.0 + EDR | |
| · SD Card (Support up to 64 GB) | |
| · HDMI | |
| Camera (rear) | 16.0 megapixels; auto focus with flashlight |
| Sensors | Gravity Accelerometer, Ambient Light Sensor (ALS) |
| Audio Input/Output | · Microphone |
| · Dual Speakers | |
| · 3-Band 3.5 mm stereo/standard headset jack | |
| Power and Battery | · 11000 mAh 3.7 V lithium-polymer battery · Charging via 12 V AC/DC power supply with a temperature between 0 °C and 45 °C |
| Input Voltage | 12 V (9-24 V) |
| Power Consumption | 6.5 W |
| Operating Temp | 0 °C to 50 °C (32 °F to 122 °F) |
| Storage Temp | -20 °C to 60 °C (-4 °F to 140 °F) |

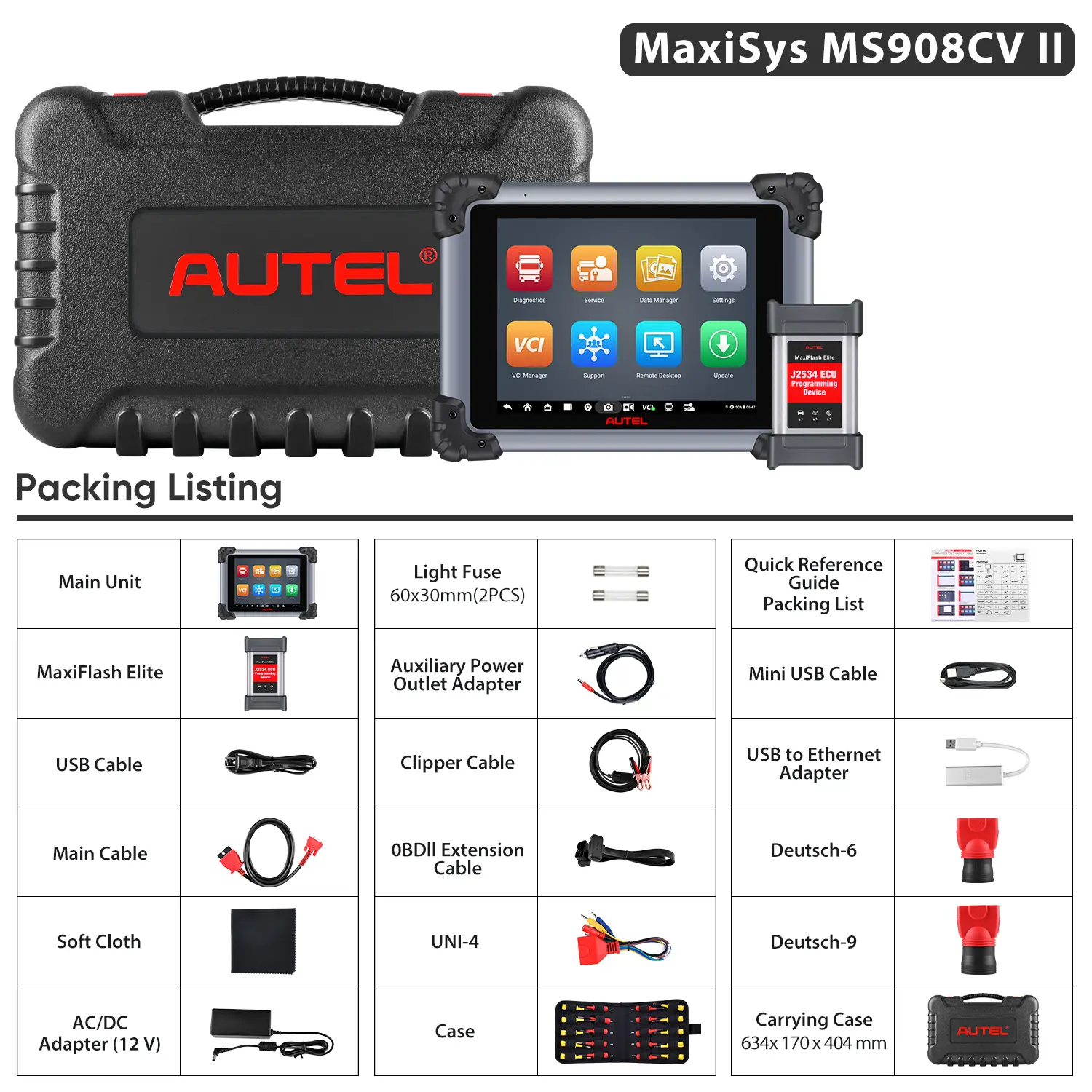

Packing List
- 1x MS908CV II Tablet
- 1x MaxiFlash Elite
- 1x AC/DC Adapter (12 V)
- 1x Main Cable
- 1x USB Cable
- 1x Mini USB Cable
- 1x Clipper Cable
- 1x Auxiliary Power Outlet Adapter
- 2x Light Fuse 6 × 30 mm
- 1x OBDII Extension Cable
- 1x UNI-4
- 2x JW1
- 2x JW2
- 2x JW3
- 2x JW4
- 2x JW5
- 2x JW6
- 2x JW7
- 2x JW8
- 2x JW9
- 2x JW10
- 1x Deutsch-6
- 1x Deutsch-9
- 1x USB to Ethernet Adapter
- 1x Quick Reference Guide
- 1x Soft Cloth
- 1x Case
- 1x Carrying Case 634 x 170 x 404 mm
- 1x Outlet Adapter
- MS908CV II User Manual (PDF)
- MS908CV II Flyer (PDF)
- MS908CV II One Year Software Update
