Autel MaxiIM IM608S II / IM608 PRO II
Autel MaxiIM IM608S II Newest Key Programming Tool
IM608Proā ”/IM608Sā ”/IM608ā ” is a 10.1-inch, Android-based touchscreen tablet with advanced key and immobilizer programming capabilities, comprehensive diagnostic features, functions and tests, and an extensive service menu. The IM608PROII excels in key programming, supporting OBD key programming for 80% of the vehicles on the road today. Additional key and immobilizer functions include Key generation, key and remote learning, immobilizer reset, refresh, and coding, and transponder and EEPROM/MCU read and write. Installed with a fast octa-core processor, the IM608Proā ” provides you with all special functions to quickly diagnose all system modules for the majority of vehicle makes and models. The tablet offers an extensive service menu, including the 40 most common maintenance tasks and cloud-based report sharing.
Autel MaxiIM IM608S II Features
- One year free update and one year free warranty included
- Smart Mode for guided and automated key learning
- Expert Mode for advanced key learning
- Read PIN/CS (all keys lost), key generation, key learning, remote learning
- IMMO ECU reset/adaptation, refresh/coding
- Transponder read/write, EEPROM/MCU read/write
- Advanced, OE-Level Diagnostics for U.S., Asian, and European vehicles
- Extensive maintenance/services menu, including direct-access to EPB, DPF, SAS, Oil Reset, and BMS functions
- All maintenance reports stored in the cloud, allowing you to view device and test records anytime, anywhere
- Qualcomm Octa-core Processor (2.2GHz)
- 10.1-inch LCD touchscreen with 1920 x 1200 resolution
- 128GB Storage Memory
- Android 10 Operating System for fast boot-up and multitasking
Specifications
| Operating System: | Android 10 |
| Processor: | Qualcomm SDM660 Octa-core Processor (2.2GHz ) |
| Memory: | 4GB RAM &128GB On-board Memory |
| Display: | 10.1-inch LED capacitive touchscreen with 1920x1200 resolution |
| Connectivity: | Wi-Fi (802.11 a/b/g/n/ac); USB: 2.0; BT v.2.1 + EDR; SD Card (Support up to 64GB); HDMI |
| Sensors; | Light sensor for brightness auto adjust |
| Power and Battery: | 15000 mAh 3.8 V lithium-polymer battery Charging via 12 V AC/DC power supply |
| Input Voltage | 12 V (9-24 V) |
| Power Consumption: | 6.5 W |
| Operating Temp.: | 0 to 50Ā°C (32 to 122Ā°F) |
| Storage Temp.: | -20 to 60Ā°C (-4 to 140Ā°F) |
| Dimensions (WxHxD): | 300 mm (11.81ā) x 220 mm (8.66ā) x 50 mm (1.97ā) |
| Net Weight: | NW: 1.58 kg (3.48 lb.) |
| Supported Automotive Protocols | ISO 9142-2, ISO 14230-2, ISO 15765-4, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898, Highspeed, Middlespeed, Lowspeed and Singlewire CAN, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP 2.0, TP 1.6, SAE J1939, SAE J1708, Fault-Tolerant CAN |

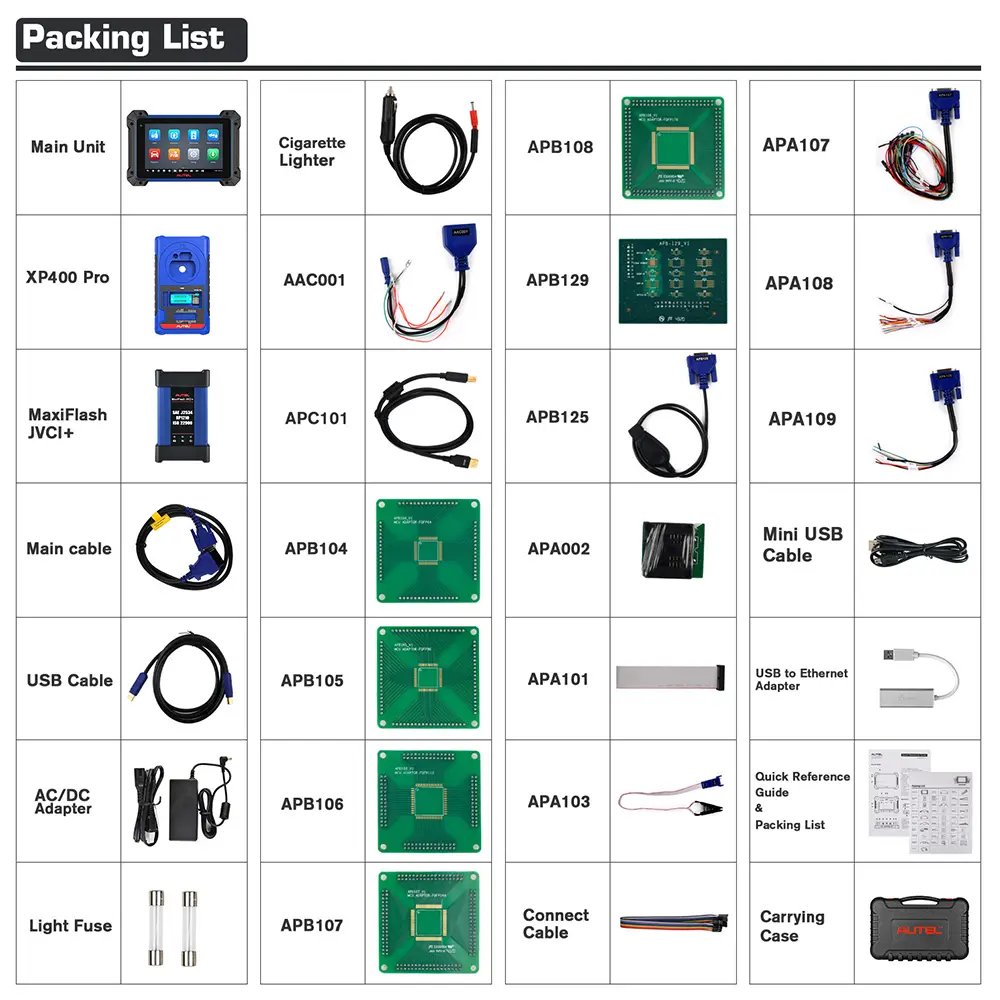

Packing List
- 1x MaxiIM IM608S II/IM608 PRO II Tablet
- 1x XP400 Pro Key Programmer
- 1x MaxiFlash JVCI+
- 1x Main Cable
- 1x UBS Cable
- 1x Mini USB Cable
- 1x AC/DC Adapter
- 2x Spare Fuse 6x30mm
- 1x Auxiliary Power Outlet Adapter
- 1x AAC001
- 1x USB to Ethernet Adapter
- 1x APC101 USB Cable
- 1x APB104 MCU_FQFP64
- 1x APB105 MCU_FQFP80
- 1x APB106 MCU_FQFP112
- 1x APB107 MCU_FQFP144
- 1x APB108 MCU_FQFP176
- 1x APB129 EEPROM Adapter
- 1x APB125 Mercedes Infrared Collected
- 1x APA002 EEPROM Socked
- 1x APA101 Signal Cable
- 1x APA103 EEPROM Clamp
- 1x APA107 ECU Cable
- 1x APA108 MCU Cable
- 1x APA109 MC9S12 Cable
- 1x Connect Cable
- 1x Quick Reference Guide
- 1x Packing List
- 1x Carrying Case(634*170*404mm)
Product Guides & Downloads
- Autel IM608S II User Manual (PDF)
- IM608S II One Year Software Update
Original: $2,788.00
-65%$2,788.00
$975.80More Images
