Autel MaxiBAS BT506

Autel MaxiBAS BT506 Battery Test Tool

The BT506 is a battery and electrical system analysis tool that uses Adaptive Conductance, an advanced battery analysis method, to produce a more accurate examination of the battery’s cold cranking ability and reserve capacity, vital to determining a battery’s true health. The BT506 enables technicians to view the health status of a vehicle's battery and electrical system. Download the free and easy-to-use mobile app, available for iOS and Android devices, to use with the BT506 to perform testing and display test results.

Autel MaxiBAS BT506 Features

• Support in-vehicle and out-of-vehicle testing of passenger vehicle batteries
• Test 12-volt batteries: 100 - 2000 CCA
• Test 12-volt cranking/charging systems
• Test Flooded, AGM, AGM Spiral, EFB and GEL batteries
• Compatible with CCA, CA, SAE, EN, IEC, DIN, JIS and MCA

Specifications

Connectivity	USB 2.0, Type C/Bluetooth V3.0 BR/EDR+ V4.2 LE Dual-Mode
Input Voltage	5 V DC
Working Current	150 mA at 12 V DC
CCA Range	100 to 2000 A
Voltage Range	6 to 36 V
Working Temperature	-10°to 50° C (14° to 122° F)
Storage Temperature	-20° to 60° C (-4° to 140° F)
Dimension (L x W x H)	107 mm (4.21“) x 75 mm (2.95”) x 26 mm (1.02”) (clamp cable not included)
Weight	320 g (0.7 lb.)

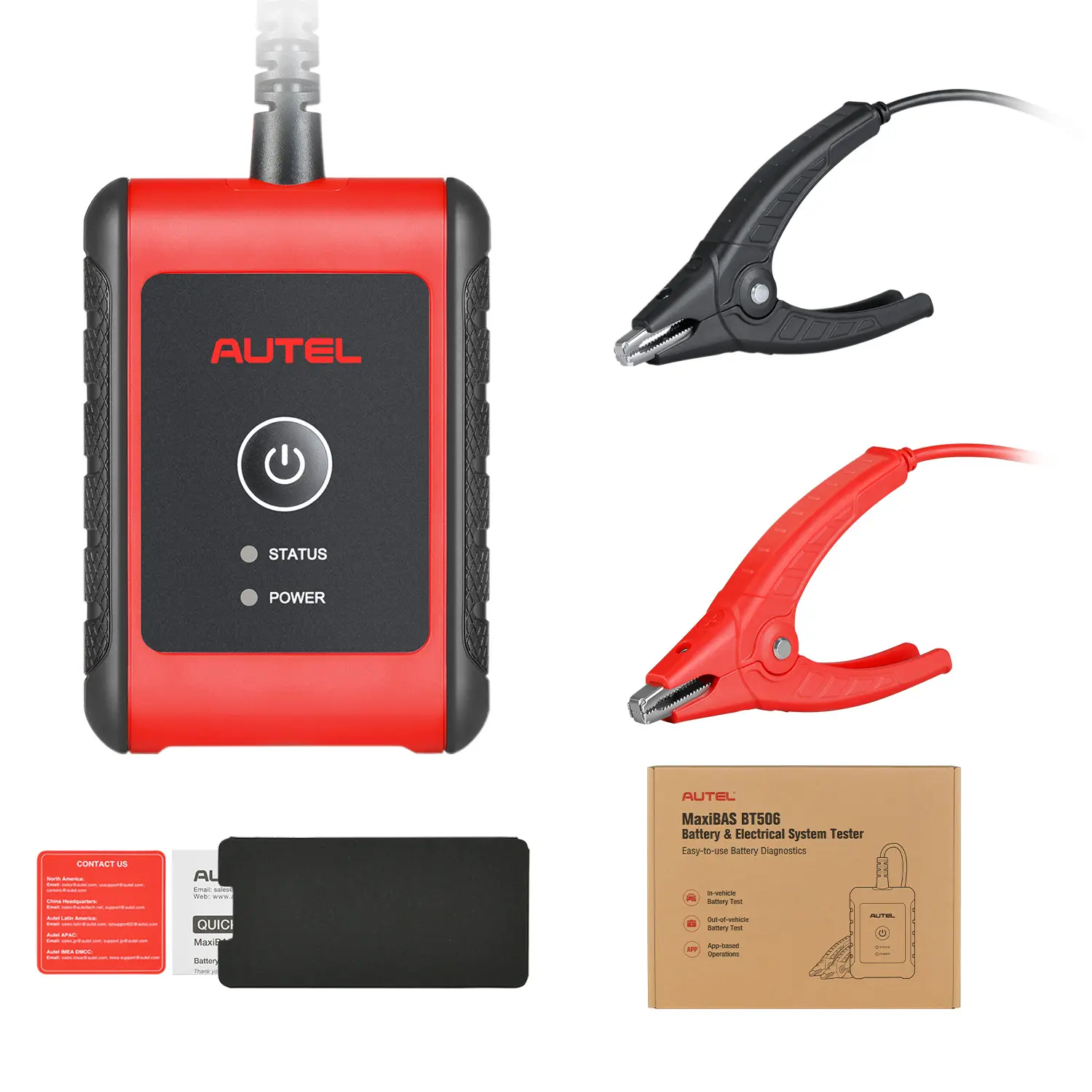

Packing List

• 1x BT506 Main Unit
• 1x Battery Cable (Approx 2-FT Long)

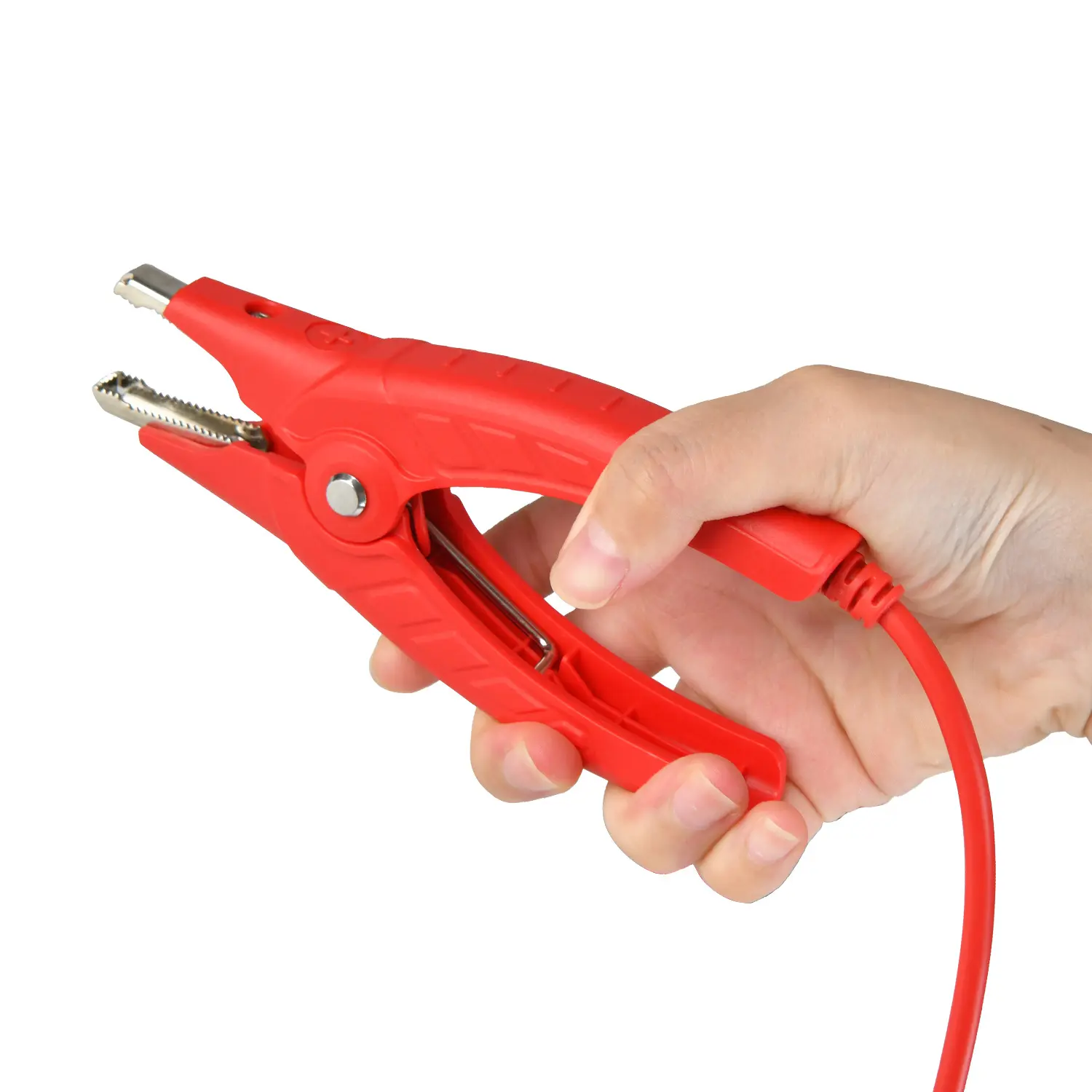

• 1x Large Clamps (Low Profile)
• 1x Temperature Sensor
• 1x User Manual
